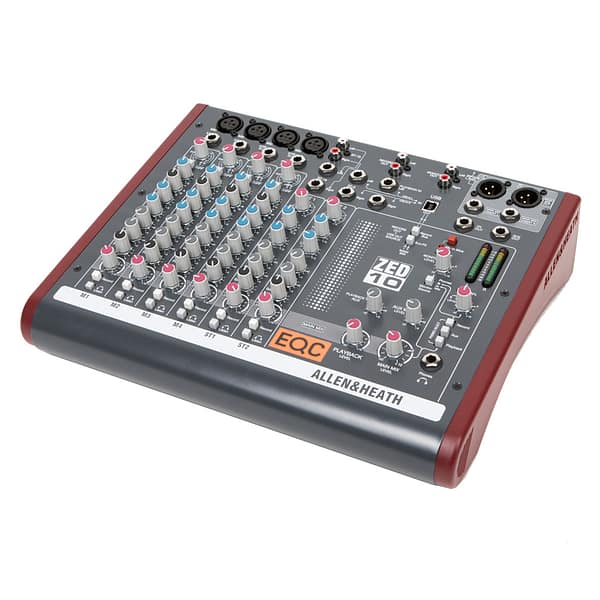

Allen & Heath ZED-10 Stereo Mischpult

  • Portables Mischpult für Live-Produktion oder Live-Streaming
  • 4 x Mic/Line Inputs
  • 2 x Hi-Z Class-A FET-Eingänge
  • Zwei Stereo-Line-Eingänge
  • 3-Band-EQs mit MusiQ-Technologie
  • Monitoring-Sektion mit Kopfhörerausgang
  • Separater Monitor-Lautsprecherausgang
  • Mitgelieferte Kabel

€20,00

Ähnliche Produkte

Der Allen & Heath ZED-10 Stereo-Mixer kombiniert vier Mikrofon-/Line-Eingänge, zwei Hi-Z-Instrumenteneingänge, zwei Stereoeingänge für Effekt-Returns und tragbare Musikplayer oder Keyboards sowie eine digitale USB-Audioschnittstelle, die mit Mac- und Windows-Computern kompatibel ist.

Dieser Mixer ist der perfekte Begleiter für Live-Produktionen oder Livestream-Anwendungen.

Im Set enthalten
  • Allen & Heath ZED-10
  • 4x XLRF > 6,3mm Stereo-Klinkenkabel 0,5m
  • Netzkabel
  • Handbuch

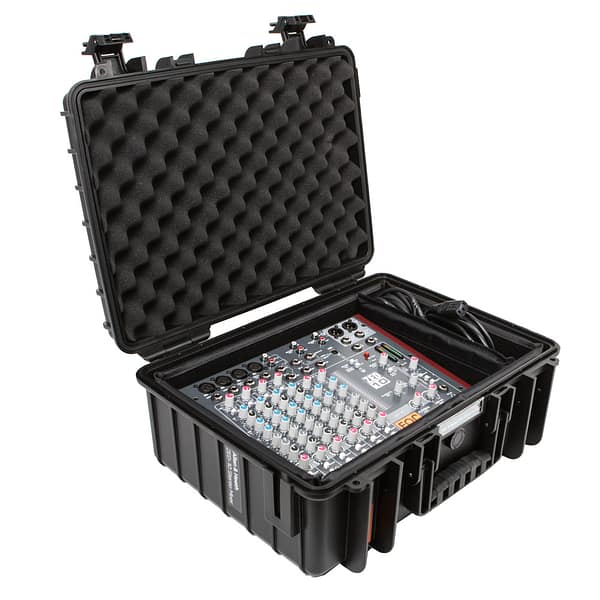

  • Transportkoffer
Kategorien: , ,
Mic Input 4 x XLR, balanced
Line In Channels 1 & 2: 2 x 1/4″ / 6.3 mm, balanced or unbalanced (mono)

Stereo Input 1: 2 x 1/4″ / 6.3 mm (balanced) or RCA (unbalanced) (L/R)
Stereo Input 2: 2 x 1/4″ / 6.3 mm, balanced or unbalanced (L/R)
Instrument Input 2 x 1/4″ / 6.3 mm, Hi-Z
Inserts Stereo Buss, Send/Return: 2 x 1/4″ / 6.3 mm
Main Output 2 x XLR, balanced (L/R)
Effect Sends 1 x 1/4″ / 6.3 mm FX output (post-fade send)
1 x 1/4″ / 6.3 mm Aux output (pre-fade send)
Headphone 1 x 1/4″ / 6.3 mm, stereo
Record Output 2 x RCA
Monitor Output 2 x RCA
USB USB stereo I/O
Operating Levels
Input Mono Channel (XLR) Input: -10 to -60 dBu (nominal), +11 dBu (maximum)

Mono Channel Line Input (1/4″ Jack): +10 to -40 dBu, +31 dBu (maximum)

Stereo Input (1/4″ Jack or RCA): 0 dBu (nominal), control = Off to +15 dB
Output L/R XLR Outputs, Normal/DI Output: 0 dBu / -30 dBu, +21 dBu / -9 dBu (maximum)

Aux and FX Outputs (1/4″ Jack): 0 dBu (nominal), +21 dBu (maximum)

Record and Monitor Outputs (1/4″ Jacks): 0 dBu (nominal), +21 dBu (maximum)
Frequency Response
Mic Input Mic In to Mix L/R Out, 30 dB Gain: +0.5/-1 dB, 10 Hz to 30 kHz
Line Input Line In to Mix L/R Out, 0 dB Gain: +0.5/-1 dB, 10 Hz to 25 kHz
Stereo Input Stereo In to Mix L/R Out: +0.5/-1 dB, 10 Hz to 30 kHz
THD + N
Mic Input Mic In to Mix L/R Out, 10 dB Gain, 1 kHz, +10 dBu Out: 0.002%

Mic In to Mix L/R Out, 30 dB Gain, 1 kHz: 0.01%
Line Input Line In to Mix L/R Out, 0 dB Gain, 0 dBu, 1 kHz: 0.003%
Stereo Input Stereo In to Mix L/R Out, 0 dB Gain, +10 dBu, 1 kHz: 0.002%
Guitar Input Guitar In to Mix L/R Out, 0 dBu, Boost Out: 0.015%

Guitar In to Mix L/R Out, 0 dBu, Boost In: 2% second harmonic
Headroom
Analog Analog Headroom from Nominal (0 Vu): 21 dB
USB USB I/O Headroom from Nominal (0 Vu): 14 dB
Noise
Microphone Mic Pre EIN at Maximum Gain, 150 Ohm Source Impedance, 22 Hz to 22 kHz: -127 dBu
Mix L/R Mix L/R Out, L/R Faders = 0, Levels Minimum, 22 Hz to 22 kHz: -96 dBu

Mix L/R Out, L/R Faders = 0, Levels Minimum, 22 Hz to 22 kHz: -96 dBu
USB Audio Codec
USB Compliance USB Audio In/Out: USB 1.1-compliant, 16-bit
Sample Rate 32, 44.1, 48 kHz
General
Phantom Power 48 V
Dimensions (W × H × D) 336 x 95 x 275 mm
Weight 3.2 kg
