DJI Ronin-SC Gimbal
- Three-axis motorized gimbal stabilizer
- 2 kg payload capacity
- Included focus motor and focus wheel
- Ready to shoot package
- Angled roll motor
- One-handed operation
- Camera control via included cables
€35,00
Great for light setups, the Ronin-SC is a feature packed handheld gimbal. Even though the Ronin-SC is smaller than the Ronin-S, it packs an abundance of features, design enhancements, and technology inside its compact form. The gimbal features stabilization, pan, tilt, and roll control, as well as 360° continuous panning to create steady 3D/360° motion shots.Custom modes let you master challenging situations. Modes include time-lapse, track, panorama, sport and roll 360.
The Ronin-SC features a record button and a joystick for precise gimbal control, as well as a re-center front trigger button to bring the gimbal back to its default position. There is also an M button that you can press and hold to enter Sport Mode, which provides fast tracking response when recording action sequences. Using the Android or iOS app over Bluetooth 5.0, Active Track 3.0 has been updated to help users track a subject with the gimbal without having to use any controls at all. Another handy function is DJI’s Force Mobile, which allows you to control your gimbal’s motion when it’s mounted on a rig or tripod using the gyroscope of your smartphone, allowing you to perform more precise gimbal movements using your own natural motion. Other built-in features include time-lapse and motion-lapse modes.
The Ronin-SC is powered by a 2450mAh rechargeable 18650 LiPo battery built into its handle, which lasts up to 11 hours on a single charge. It is charged via a USB Type-C port and can also provide camera control such as run/stop or focus pulling using one of the included multiport USB cables connected to a compatible camera. There are also 1/4″-20 and 3/8″-16 mounting threads on the handle to add accessories such as the included smartphone holder.
In the Case
- Ronin-SC gimbal with RS-001 focus wheel

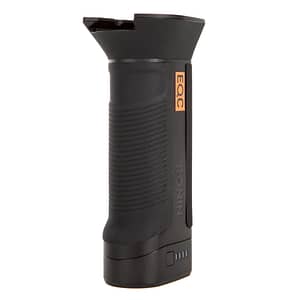

- BG18 battery grip
- Camera mounting plate
- Riser plate
- Phone holder with 2x M4 screw
- Tripod
- Focus motor with screw
- Rod mount
- 15mm rod (12cm)
- Focus gear strip
- RSS splitter
- Lens support + screw
- 4x M4 screw
- Contact cover with 2x M4 screw
- 3x 1/4-20 screw
- USB > USB-C cable
- USB-C > USB-C cable
- USB C > micro USB cable
- USB-C > 3,5mm TRRS cable
- USB-C female > micro USB male adapter
- AC Adapter
- 2x hex key
- 4x manual
- Original case
Is the Ronin-S better suited for your project? Give us a call and we will be happy to make a recommendation based on your setup.
PERIPHERAL
| Accessory Connections | 1/4” Mounting Hole, 3/8” Mounting Hole, Camera Control Port, Accessory Port, USB-C Port, RSA Port |
|---|---|
| Intelligent Battery | Model: RB2-2450mAh-7.2V Type: 18650 LiPo Capacity: 2450 mAh Power: 17.64 Wh Max. Battery Life: 11 h Charging Time: 2.5 h (5 V/2 A) Charging Temperature: 5° to 40°C (41° to 104°F) |
| Connections | Bluetooth 5.0; USB-C |
| Mobile Assistant Software Requirements | iOS 9 or above; Android 5.0 or above |
MECHANICAL & ELECTRICAL CHARACTERISTICS
| Working Current | Static current: 0.2 A |
|---|---|
| Working Frequency | 2.400 GHz to 2.4835 GHz |
| Transmission Power | ≤ 8 dBm |
| Operating Temperature | -20° to 45°C (-4° to 113°F) |
| Weight | Gimbal: Approx. 830 g BG18 Grip: Approx. 258 g Tripod: Approx. 160 g |
| Gimbal Dimensions | Folded: 220×200×75 mm Unfolded: 370×165×150 mm |
WORKING PERFORMANCE
| Tested Payload | ≤ 2.0 kg |
|---|---|
| Angular Vibration Range | ±0.02° |
| Maximum Controlled Rotation Speed | Pan axis control: 180°/s Tilt axis control: 180°/s Roll axis control: 180°/s |
| Mechanical Endpoint Range | Pan axis control: 360° continuous rotation Tilt axis control: -202.5° to +112.5° Roll axis control: -95° to +220 |
| Controlled Rotation Range | Pan axis control: 360° continuous rotation Tilt axis control: -90° to 145° Roll axis control: ±30° |
