Panorama Antenna Set LTE/WLAN/GPS

  • The ultimate set for live streaming from vehicles
  • 4×4 MIMO LTE radiating elements present
  • 4×4 MIMO WLAN 2.4 and 5.8 GHz
  • 1x active 26dBi GPS/GNSS antenna
  • Extended frequency range up to 3800 Mhz
  • Can be used for all mobile radio applications

€30,00

Related products

This antenna set is specially designed for mobile livestream applications from vehicles.

The 4×4 MIMO vehicle antenna supports the LTE Advanced and Carrier Aggregation range. Due to the frequency range up to 3800MHz, even a livestream in the 5G network is no longer in the way.

In addition to the 4-way connection to a modem, such as the Teradek Vidiu Go, car-to-car image transmissions can be implemented using a video link such as the Teradek Bolt XT 1000. And if a GPS tracker is available, it can also be connected to include the current location in the stream.

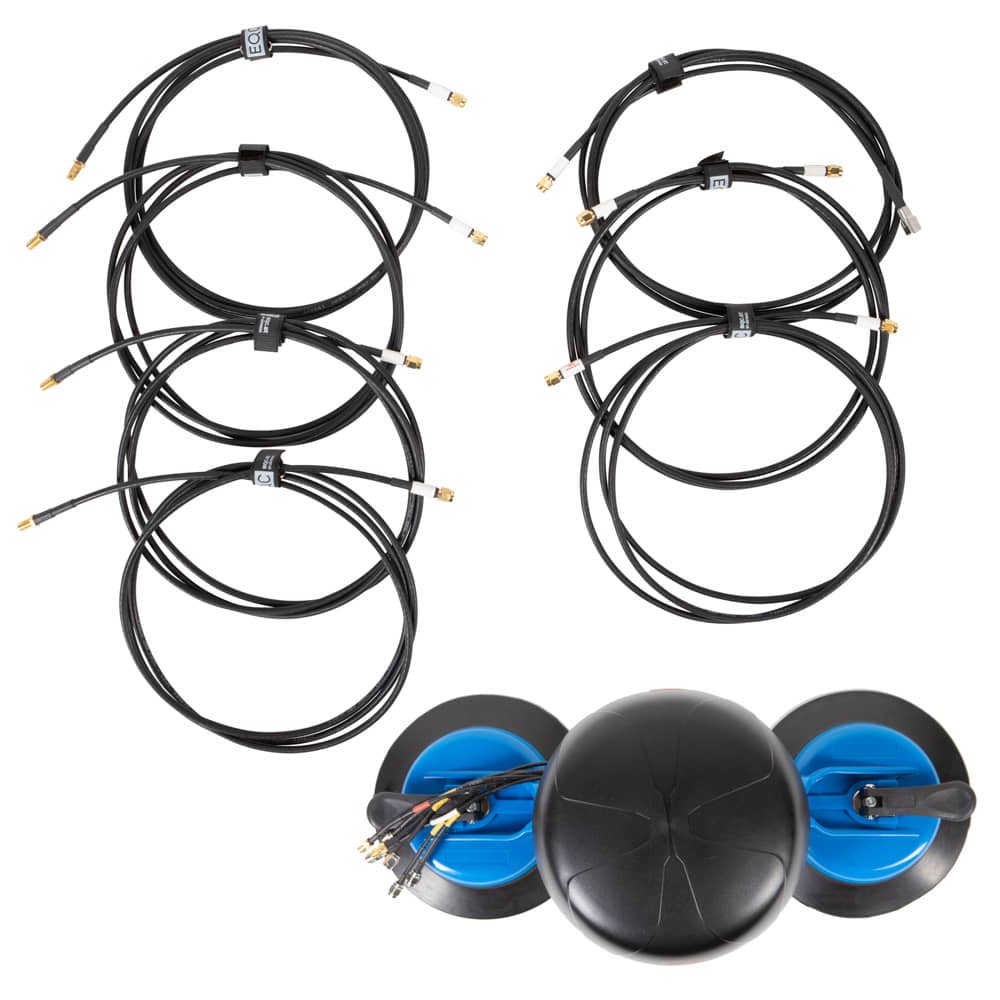

In the Case

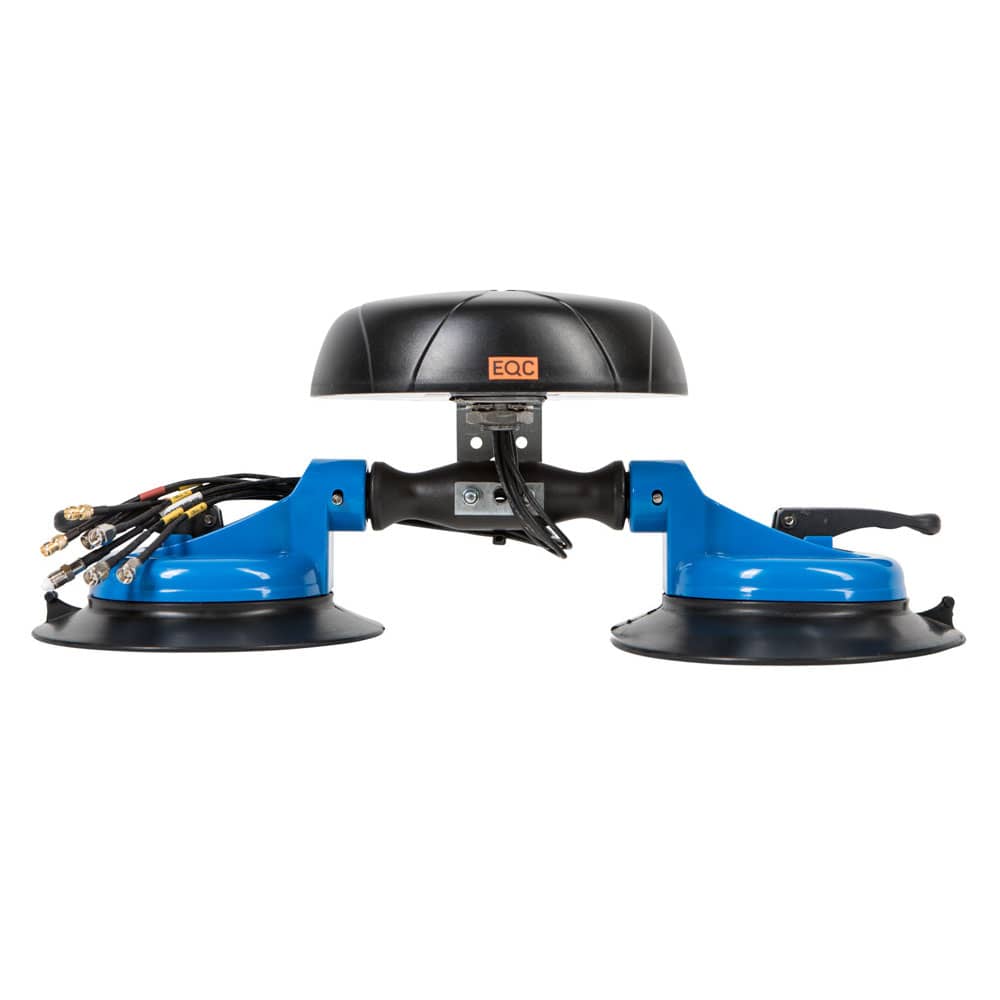

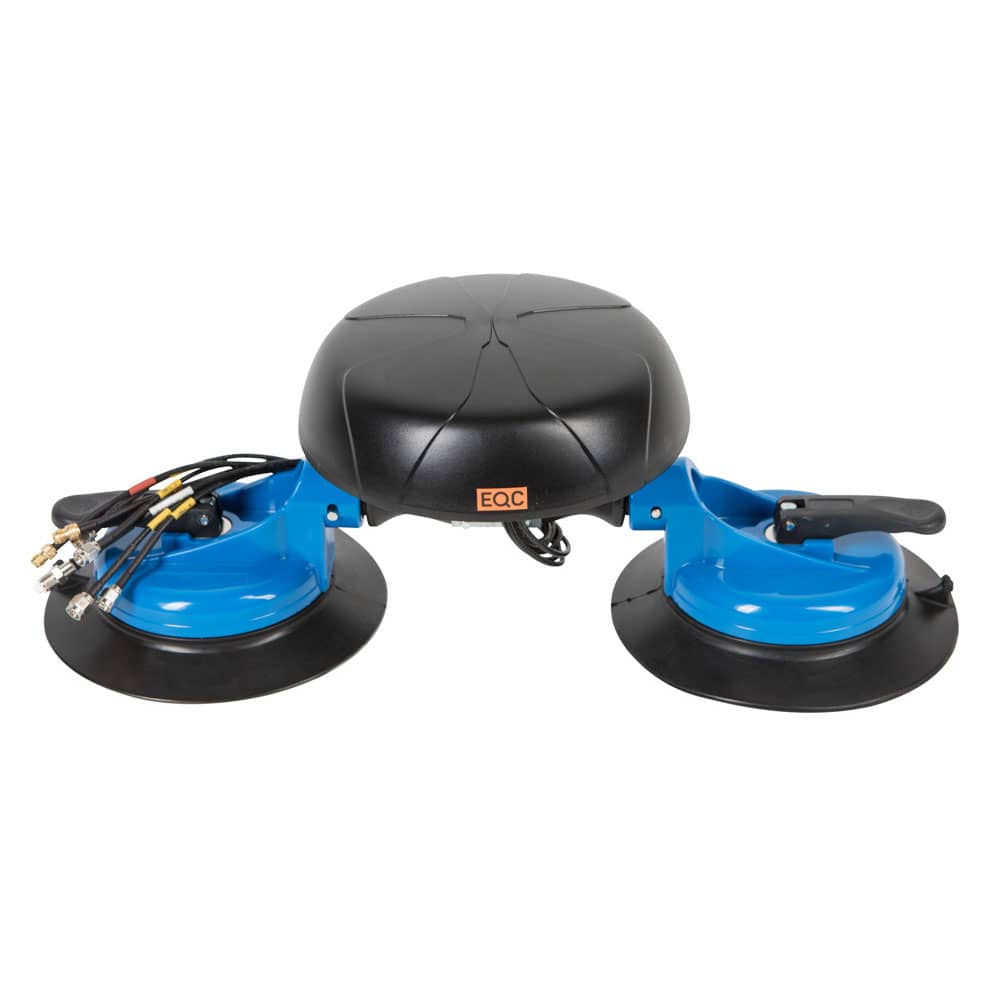

  • Panorama antenna with flexible dual suction cup
  • 2x WLAN cable 2m
  • 4x cell cable 2m
  • GPS cable 2m
  • EQC bag
Categories: , ,
Electrical properties mobile radio elements

Frequenzen 4x 698-960 / 1710-3800 MHz
Gewinn 698-960MHz 4 dBi
Gewinn 1710-3800MHz 6 dBi
Abstrahlung Omni direktional 4x MIMO
Impedanz 50 Ohm
Maximale Leistungsaufnahme 10 W
Electrical properties WLAN elements

Frequenzen 2,4 / 5,8 GHz
Gewinn 6 / 8 dBi
Abstrahlung Omni direktional 4x MIMO
Impedanz 50 Ohm
Maximale Leistungsaufnahme 10 W
Electrical properties GPS/GNSS element
Frequenzen 1562 – 1612 MHz
Gewinn 26 dBi
Abstrahlung Right Hand Circular
Stannung 3-5V
Stromaufnahme <20mA
