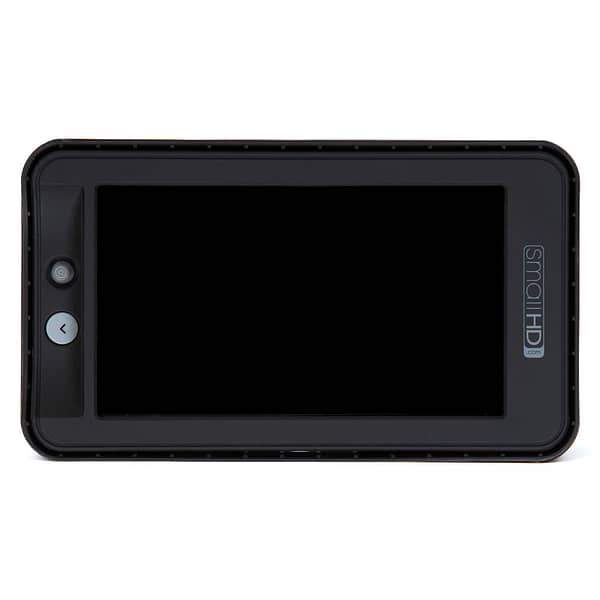

SmallHD 502 Bright Full HD Monitor 5″
- Lightweight, small and bright on-camera monitor
- 5″ 1920 x 1080 resolution with 1000 nits
- 1000:1 Contrast Ratio
- 100% Rec 709 color
- HD Scopes
- HDMI & SDI in/out with cross conversion
- 3D LUT support
- Anamorphic de-squeeze option
€60,00
Boasting a screen resolution of 1920×1080, the SmallHD 502 5″ Bright Full HD Monitor is one of the sharpest 5-inch displays in the world. It’s convenient size and display brightness make it easy to see what’s in focus, even in high ambient lighting conditions.

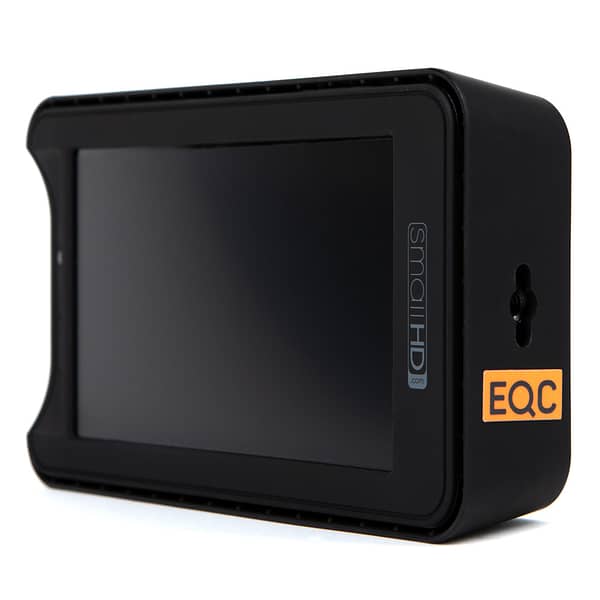

The 502 Bright offers extreme durability without being exceedingly heavy. Housed in an aircraft grade aluminum unibody with plenty of mounting points, this 5-inch monitor is ruggedly handsome and beautifully designed.
Features
With real-time 3D LUTs, Scopes, Waveform, False Color, and Focus Assist/Peaking, the 502 Bright is equipped with SmallHD’s premium tool set and Page Builder operating system. Data driven software tools become easy to access with an intuitive user experience.

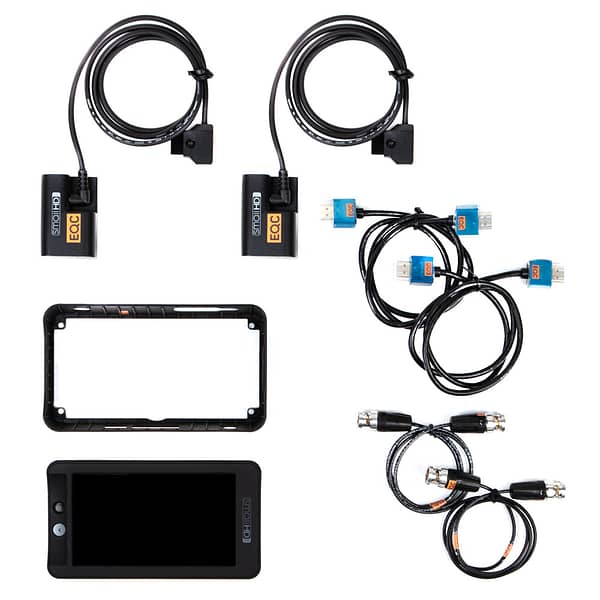

In the Case
- SmallHD 502 5″ Bright Full HD Monitor
- SmallRig cage
- SmallRig sun hood
- 2x LP-E6 dummy to D-Tap adapter
- 2x BNC cable 0.75m
- 2x HDMI cable 0.75m
- Screen protector
- BongoTie

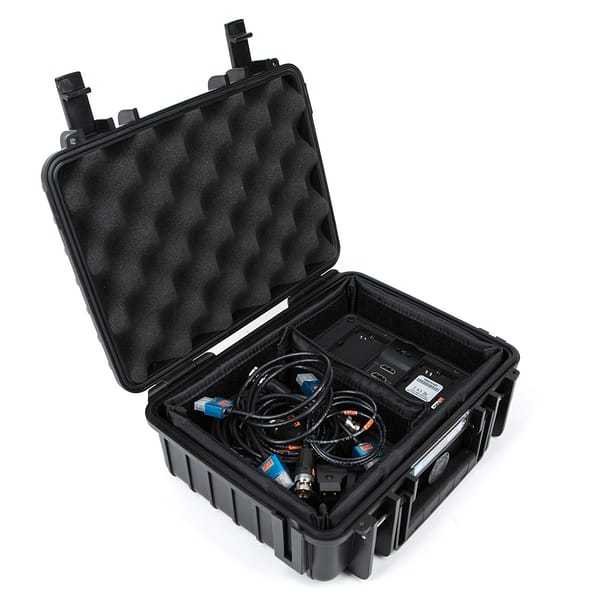

- Hard case
Don’t forget to book your battery pack
Display
| Panel Type | LCD |
| Size Diagonal | 5 |
| Resolution | 1920 x 1080 |
| Pixel Density (PPI) | 441 |
| Aspect Ratio | 16:9 |
| Active Area | 5″ |
| Brightness | 1000nits |
| Contrast | 1500:1 |
| Color Gamut | 100% Rec 709 |
| Color Depth | 10-bit Color Processing |
| Viewing Angle | Full 179 degrees |
| Backlight Type | LED |
Input Signal Types/Formats
| 3G-SDI | 1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120 |
| HD-SDI | 1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, |
| SD-SDI | 576i50,480i59.94 |
| HDMI | Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 . Supports YCC 4:2:2, 8/10/12/16 bit color in RGB & YCC 4:4:4, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200 |
| Component | Not Supported |
| Composite | Not Supported |
| Audio | HDMI and SDI |
Output Signal Types/Formats
| 3G-SDI | 1080p50, 1080p59.94, 1080p60, 1080i100, 1080i119.88, 1080i120 |
| HD-SDI | 1080i60,1080i59.94,1080i50, 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98, 1080psF30, 1080psF29.97, 1080pSF25, 1080pSF24, 1080pSF23.98, 720p60, 720p59.94, 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, |
| SD-SDI | 576i50,480i59.94 |
| HDMI | Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4, 1080p60, 1080p59.94, 1080p50, 1080i120, 1080i119.88, 1080i100 . Supports YCC 4:2:2, 8/10/12/16 bit color in RGB & YCC 4:4:4, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200 |
| Component | Not Supported |
| Composite | Not Supported |
| Audio | Stereo Out (headphones) |

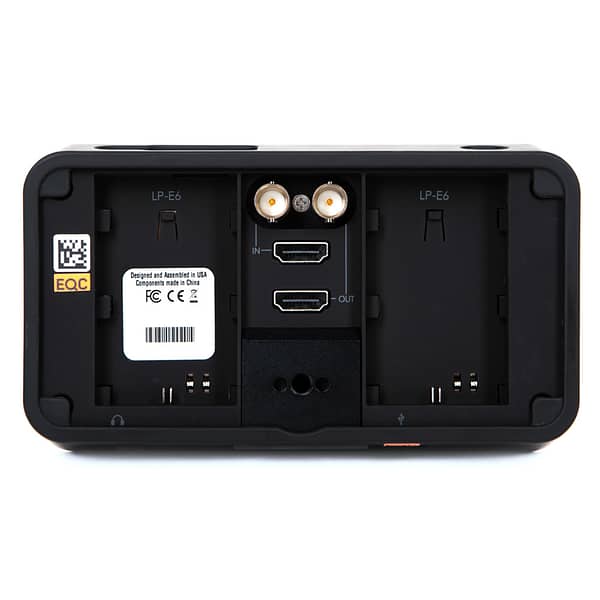

Connector Type
| SDI | 1 SDI (in), 1 SDI (out – selectable) |
| HDMI | 1 HDMI (in), 1 HDMI (out – selectable) |
| Component | Not Supported |
| Composite | Not Supported |
| Audio | 1/8in Mini Stereo Headphone |
| Power In | LP-E6 style Battery X 2 |
| Power Out | Micro-USB 5V @ .5A |
| USB | Micro-USB 5V @ .5A |
Controls
| Primary Control Interface | Joystick + “Back” button |
| Record/Capture | Capture button |
| RF Wireless Remote / External Control | Wireless remote |
Data I/O

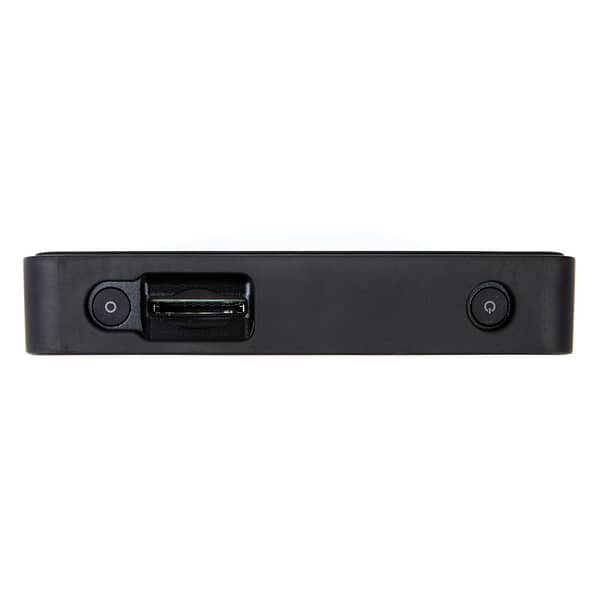

| Storage | SD Card (full-size) |
| USB | Self Color Calibration |
Power
| Connector Type | LP-E6 Style |
| Voltage | 6.0 – 8.4volts |
| Power Consumption | 7-9 watts |
| Recommended Power Supply | http://store.smallhd.com/store/500-accessories/DCA5-AC-Power |
| Overload Protection | Yes |
| Battery Types | LP-E6 |
Environmental
| Compliance | CE, FCC, IC |
| Operating Temperature | 30F to 85F |
| Storage Temperature | 0F to 120F |
| Height | 3.4” (8.64cm) |
| Width | 1.1” (2.79cm) |
| Depth/Length | 6” (15.24cm) |
| Weight (Item Only without battery) | 9.4oz (266.49g) |
| Weight (Packaged) | 4.04oz (114.53g) |
| Mount Points | (3) ¼-20 thread points (bottom, back & right side) |
Software
| Pixel Zoom (type) | 2x & 4x with smooth pan via joystick |
| Frame Guides | Yes |
| DSLR Scale | Canon, Nikon |
| Custom Scale | Yes |
| Anamorphic De-Squeeze | Yes |
| Image Rotate(Manual/Automatic) | Yes |
| Image Flip (Manual/Automatic) | Yes |
| Cross Conversion | Yes |
| Focus Assist (Colors) | Yes |
| Peaking | Yes |
| False Color | Yes: ARRI, Custom |
| Zebra | Yes: Multiple |
| Waveform | Yes |
| Vectorscope | Yes |
| PIP | No |
| RGB Parade | Yes |
| Histogram | Yes |
| Horizon Indicator | No |
| Image Capture | Yes |
| Master Recording | N/A |
| Wifi Streaming | N/A |
| Custom LUTS | Yes |
| LUT Creation | No |
| LUT Downstream | Yes |
| LUT Import | Yes |
| Image Overlay | Yes |
| Blue Only | No |
| Audio Meters | Yes |
