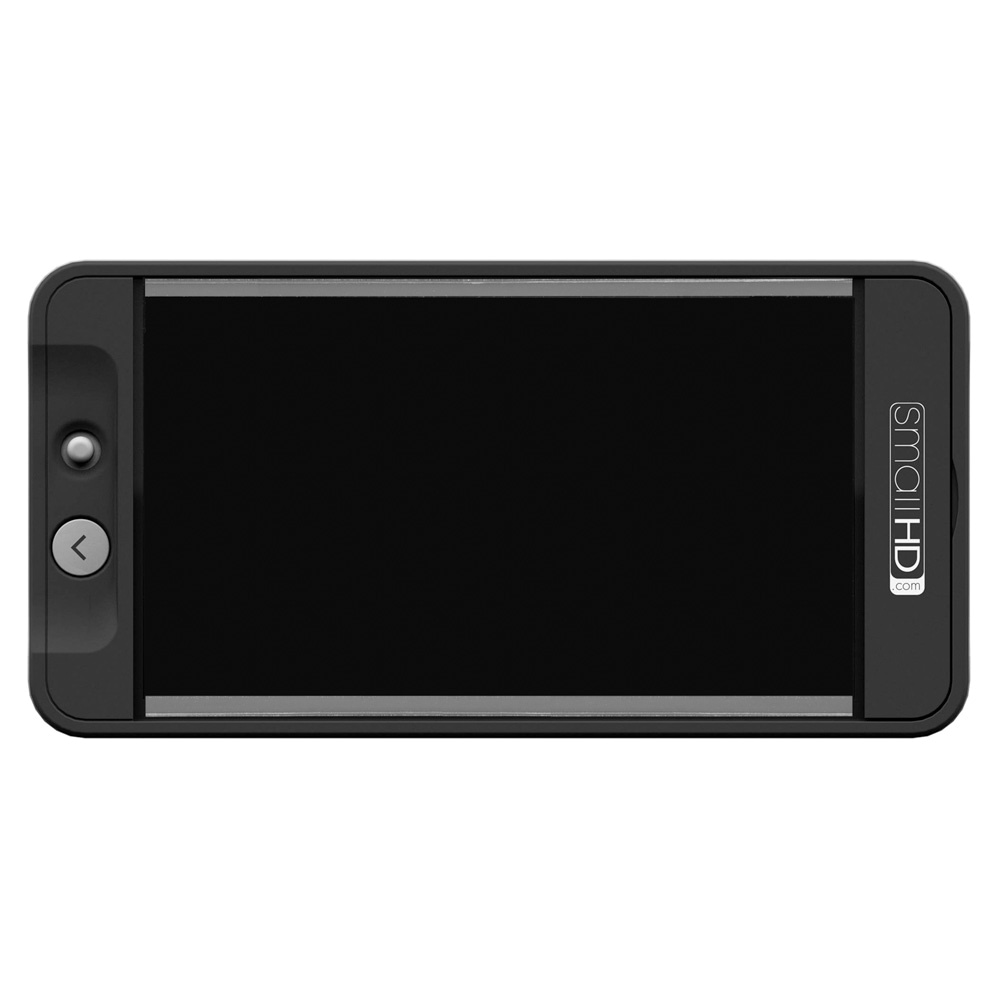

SmallHD 502 Full HD Monitor 5″


  • Lightweight and small on-camera monitor
  • 5″ 1920 x 1080 resolution with 400 nits
  • 441 pixels per inch display
  • 100% Rec 709 color
  • HD Scopes
  • HDMI & SDI in/out with cross conversion
  • 3D LUT support
  • Anamorphic de-squeeze option
  • Compatible with optional sidefinder

50,00

The SmallHD 502 HDMI & SDI On-Camera Monitor with 3D LUT Support brings full HD resolution to a durable lightweight on-camera monitor the size of a smartphone. The screen packs 441 pixels per inch, providing a sharp clear image on such a small screen. It features SDI & HDMI inputs and outputs with cross conversion.

Signal Processing

Using a custom-built processing engine, the monitor will accept nearly any resolution and framerate from nearly any camera. Building upon the 3D LUT functionality of the DP7-PRO Series, the 502 will allow shooters to apply an even higher resolution, more accurate 3D LUT, in real-time.

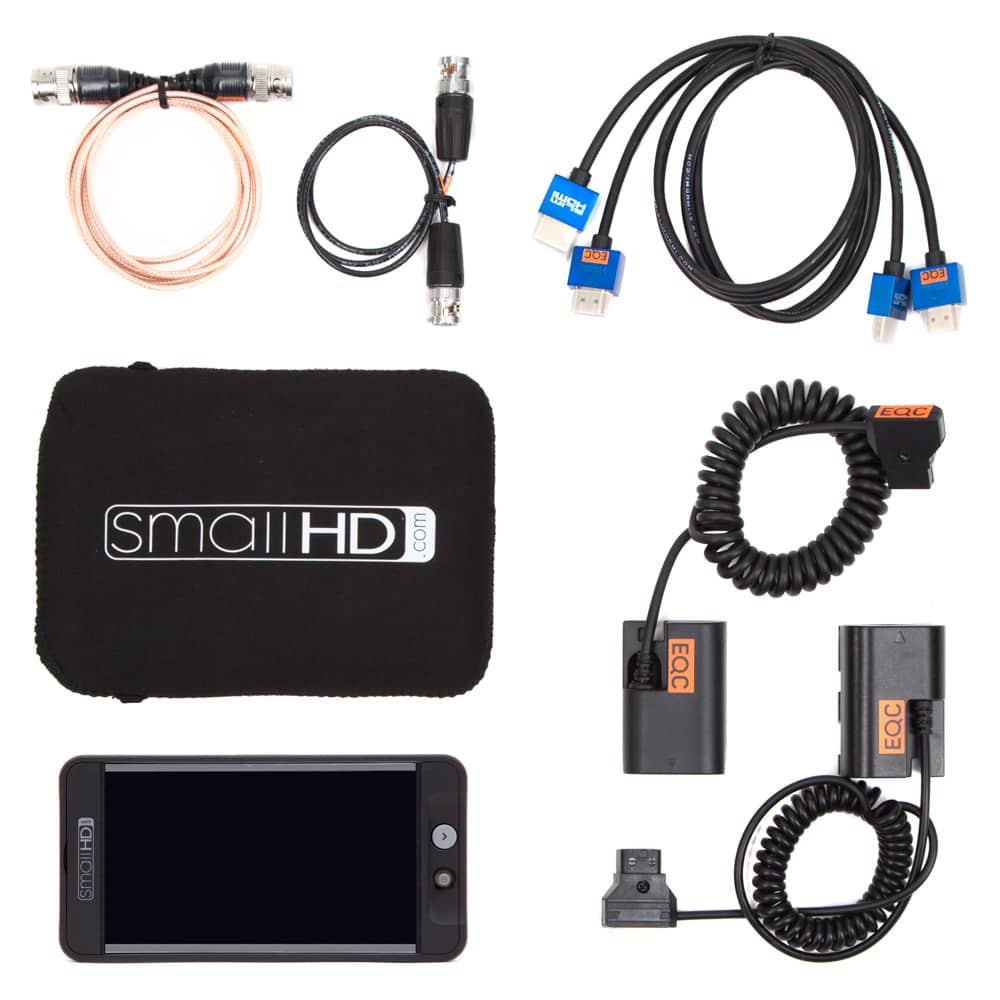

In the Case
  • SmallHD 502 full HD monitor
  • 2x SmallHD D-Tap adapter
  • BNC cable 0.6m
  • BNC cable 1.3m
  • 2x HDMI cable 0.75m
  • Acrylic screen protector
  • 5″ Neoprene sleve
  • BongoTie

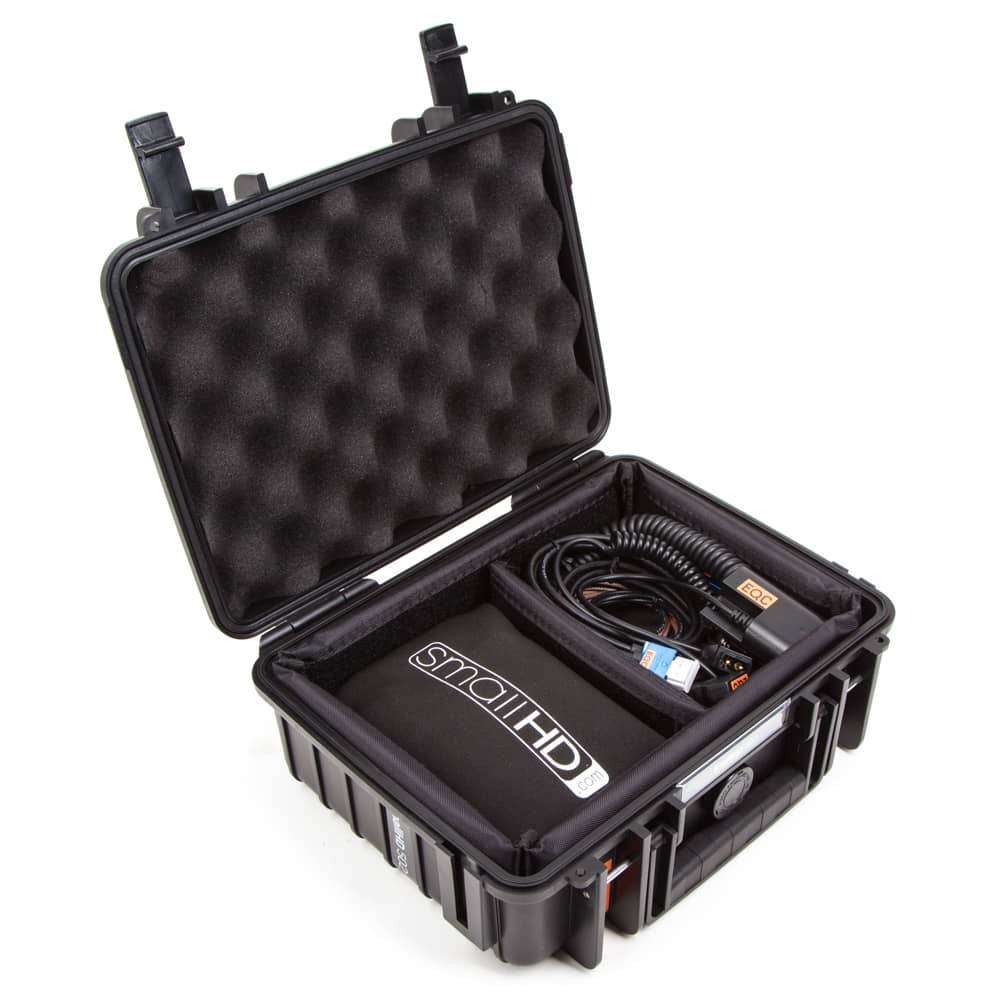

  • Hard case

Don’t forget to book your battery pack
Find suitable sidefinder here

Category:

Display

Panel Type LCD
Size Diagonal 5
Resolution 1920 x 1080
Pixel Density (PPI) 441
Aspect Ratio 16:9 Native
Active Area 5.0 in
Brightness 400 nits
Contrast 1500:1
Color Gamut 85% NTSC (100% Rec 709)
Color Depth 24 Bit (8bpc)
Viewing Angle Full 179 Degrees
Backlight Type LED
Adjustable Backlight Yes
Temperature Adaptive Color Yes

Input Signal Types/Formats

HD-SDI RGB/YCC 4:2:2 and 4:4:4,1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50
HDMI Supports YCC 4:2:2, 8/10/12 bit color in RGB & YCC 4:4:4 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.97 1080p25, 1080p24, 1080p23.98,1080i120, 1080i119.88, 1080i100, 1080i60, 1080i59.94, 1080i50, 720p120, 720p119.88, 720p/100, 720p60, 720p59.94 , 720p50, 720p30, 720p29.97, 720p25, 720p24, 720p23.98, 480p59.94, 480p60, 480p100, 480p119.88, 480p120, 480p239.76, 480p240, 576p50, 576p100, 576p200, 480i59.94, 480i60, 480i119.88, 480i120, 480i239.76, 480i240, 576i50, 576i100, 576i200
Audio HDMI and SDI

Output Signal Types/Formats

HD-SDI RGB/YCC 4:2:2 and 4:4:4,1080i60,1080i59.94,1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25 , 1080pSF29.97, 720p60, 720p59.94, 720p50
HDMI Supports 8/10/12 bit color, 1080p60, 1080p59.94, 1080p50, 1080i60, 1080i59.94, 1080i50, 1080p30, 1080p25, 1080p24, 1080p23.98, 1080pSF23.98, 1080pSF24, 1080pSF25, 1080pSF30, 720p60, 720p59.94 , 720p50
Audio Stereo Out (headphones)

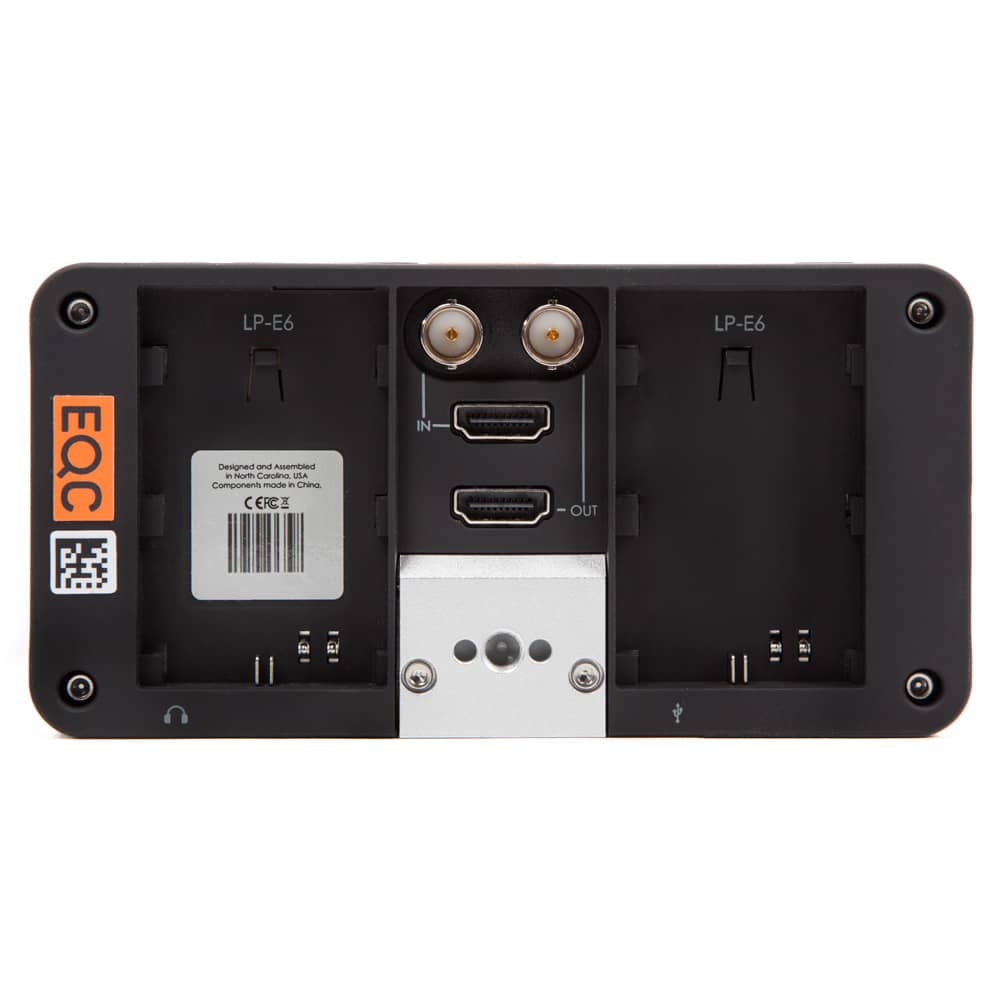

Connector Type

SDI 1 SDI (in), 1 SDI (out)
HDMI 1 HDMI (in), 1 HDMI (out)
Audio 1/8in Mini Stereo Headphone
Power Out LP-E6 style
USB Micro-USB 5V @ .5A

Controls

Primary Control Interface Joystick + “Back” button
Record/Capture Capture button
User Defined Functions Uses “Pages” in conjunction with the Joystick control to provide any number of user defined monitoring options.
RF Wireless Remote / External Control Via Remote

Data I/O

Storage SD Card (full-size)
USB Factory use and Future user functionality

Power

Connector Type LP-E6 style
Voltage 6.0 – 8.4 volts
Power Consumption 8 watts
Battery Plate Included LP-E6 (2 battery slots)
Recommended Power Supply LP-E6 coupler with built-in 7.2v, 2A regulator
Overload Protection Yes
Smart Battery Compliant Yes
Battery Types LP-E6

Environmental

Compliance CE, FCC, IC
Operating Temperature 30F to 90F
Storage Temperature 0F to 120F
Screen Protection 1mm Acrylic (user replaceable)
Height 7.37cm (2.9“)
Width 14.73cm (5.8“)
Depth/Length 2.03cm (.8“)
Weight (Item Only without battery) 209.79g (7.4oz)
Weight (Packaged) 435.45g (15.36oz)
Mount Points (3) ¼-20 thread points (bottom, back & right side)

Software

Pixel Zoom (type) 2x & 4x with smooth pan via joystick
Frame Guides Yes
DSLR Scale Canon, Nikon
Custom Scale Yes
Anamorphic De-Squeeze Yes
Image Rotate(Manual/Automatic) Yes
Image Flip (Manual/Automatic) Manual and Auto Flip
Cross Conversion Yes
Focus Assist (Colors) Yes
Peaking Yes
False Color Yes
Zebra Yes – Multiple
Waveform Yes
PIP No
RGB Parade Yes
Histogram Yes
Horizon Indicator No
Image Capture Yes with Dedicated Capture Button
Custom LUTS Yes
LUT Creation No
LUT Downstream Yes
LUT Import Yes
Image Overlay Yes
Blue Only No
Firmware User Upgradable. Current Version: 2.0
Audio Meters Yes
