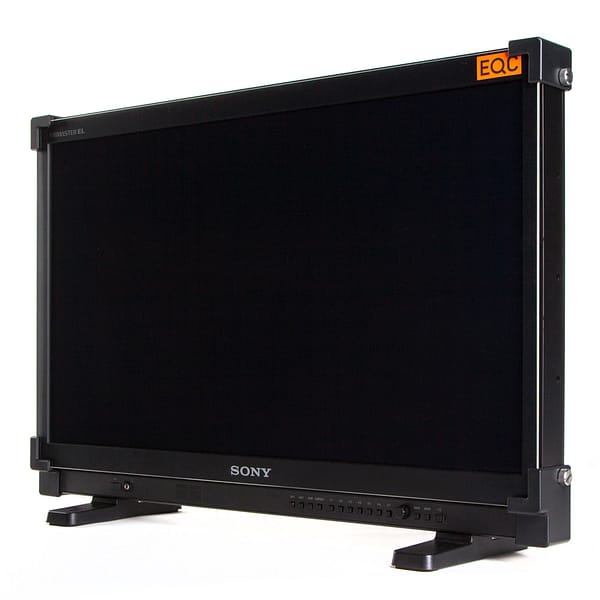

Sony PVM-A250 OLED Production Monitor 25″

  • 24.5″ 10-Bit OLED screen with 1920 x 1080 resolution
  • 3G-SDI, HDMI, and composite inputs
  • Loop-through output for both SDI inputs
  • 89° Angle of View at >10:1 Contrast
  • Waveform and vectorscope OSD
  • BKM-PP25 screen protection kit attached

€95,00

The Sony PVMA250 is suitable for both field and studio use. It features a 24.5″ diagonal OLED panel with a native resolution of 1920 x 1080. Because of the OLED technology employed, each pixel can be switched completely off (unlike typical LCD displays) for a much closer approximation of true black.

It can be connected to standard and high-definition video sources via SDI or HDMI, as well as analog standard-definition sources through composite.

In the Case
  • Sony PVM-A250
  • AC cable
  • BKM-PP25 protection kit
  • Original box



Category:
Monitor Type 10-bit OLED
Screen Size 24.5″ 623.4 mm (24 5/8 inches)
Viewable Area 543 x 306 mm (21.5 x 12.1″)
Resolution 1920 x 1080
Aspect Ratio 16:9 native (4:3 supported)
Viewing Angles (Typical) Up/Down/Left/Right: 89°/89°/89°/89°
Contrast: >10:1
Inputs 2 x SDI on BNC female
1 x HDMI, with HDCP support
1 x Composite on BNC female
1 x Analog audio on stereo 3.5 mm mini jack
Outputs 2 x SDI loop-through out on BNC female
1 x Composite loop-through out on BNC female
1 x Analog audio on 3.5 mm mini jack
1 x Headphone on 3.5 mm mini jack
1 x 1.0 W speaker
Remote Control 1 x Parallel remote port on RJ45 connector
1 x Serial remote port on RJ45 connectorSupports optional BKM 15R and/or BKM 16R remotes (sold separately)
SDI Standards 3G-SDI (SMPTE 425M), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
Supported Resolutions SDI:
1920 x 1080 @ 50p / 50i / 60p / 60i / 24p / 23.98p
24PsF, 23.98PsF
1280 x 720 @ 60 or 50 Hz
720 x 576 @ 50i
720 x 480 @ 60iHDMI:
1920 x 1080 @ 50p / 50i / 60p / 60i / 24p / 23.98p
1360 x 768
1280 x 720 @ 60 or 50 Hz
1280 x 1024 / 768
720 x 576 @ 50i
720 x 480 @ 60i
640 x 480 – for computer sourcesComposite:
720 x 576 @ 50i
720 x 480 @ 60i
Format Support Composite: NTSC or PAL
Digital RGB: 720p, 1080i, 1080p
Digital Y Pb Pr: 720p, 1080i, 1080p
Digital Y R-Y B-Y: 525 or 625 line
Closed Caption Support Displays EIA 608, and EIA 708 captions
Operating Temperature 0°C to 35°C (32°F to 95°F)
Recommended: 20°C to 30°C (68°F to 86°F)
Storage Temperature -20°C to +60°C (-4°F to +140°F)
Operating Humidity 30% to 85% (no condensation)
Pressure Tolerance 700 hPa to 1060 hPa
Power Requirements AC Power Adapter: 100 to 240 VAC (1.3 to 0.6 A) / 50 or 60 Hz
Power Consumption Maximum: 115 W
Typical: 80 W
VESA Compatibility 100 x 100 mm
Dimensions (WxHxD) 581.0 x 386.6 x 65.5 mm* (22 7/8 x 15 1/4 x 2 5/8 inches) (without monitor feet)
581.0 x 409.1 x 165.0 mm (22 7/8 x 16 1/8 x 6 1/2 inches) (with monitor feet)
Weight Approx. 6.1 kg (13 lb 7.2 oz)
