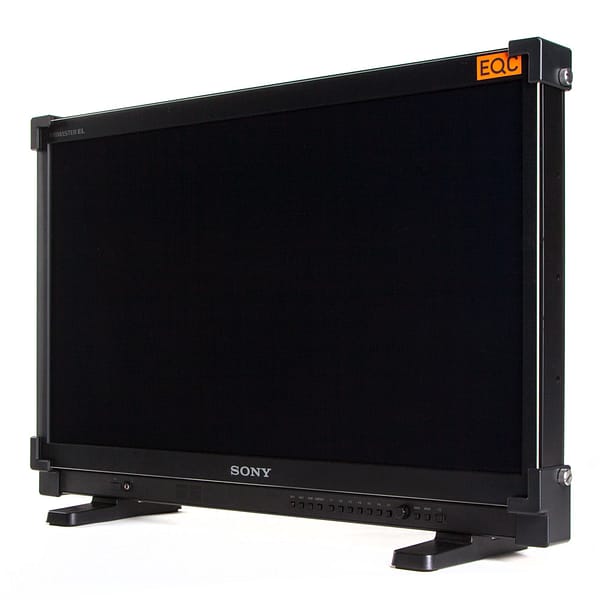

Sony PVM-A250 OLED Produktionsmonitor 25″


  • 24.5″ 10-Bit OLED Bildschirm mit 1920 x 1080 Auflösung
  • 3G-SDI, HDMI, und Komposit Eingänge
  • Durchgeschliffener Ausgang für beide SDI Eingänge
  • 89° Blickwinkel bei >10:1 Kontrast
  • Waveform und Vektorskop OSD
  • BKM-PP25 Displayschutz Kit

95,00

Der Sony PVM-A250 25″ OLED Produktionsmonitor ist sowohl für die Verwendung im Studio, als auch im Freien geeignet. Er verfügt über ein OLED Panel mit einem Durchmesser von 24,5″ und einer nativen Auflösung von 1920 x 1080. Dank der OLED Technologie kann, im Gegensatz zu herkömmlichen LCD Displays, jeder Pixel komplett abgeschaltet werden, um einer weitaus stärkere Annäherung an wahres Schwarz zu erreichen.

Der PVMA250 kann mit Standard und HD Videoquellen via SDI oder HDMI, sowie analog Standardquellen durch Komposit verbunden werden.

Im Set enthalten
  • Sony PVM-A250
  • AC Kabel
  • BKM-PP25 Displayschutz Kit
  • Original Box
Kategorie:
Monitor Type 10-bit OLED
Screen Size 24.5″ 623.4 mm (24 5/8 inches)
Viewable Area 543 x 306 mm (21.5 x 12.1″)
Resolution 1920 x 1080
Aspect Ratio 16:9 native (4:3 supported)
Viewing Angles (Typical) Up/Down/Left/Right: 89°/89°/89°/89°
Contrast: >10:1
Inputs 2 x SDI on BNC female
1 x HDMI, with HDCP support
1 x Composite on BNC female
1 x Analog audio on stereo 3.5 mm mini jack
Outputs 2 x SDI loop-through out on BNC female
1 x Composite loop-through out on BNC female
1 x Analog audio on 3.5 mm mini jack
1 x Headphone on 3.5 mm mini jack
1 x 1.0 W speaker
Remote Control 1 x Parallel remote port on RJ45 connector
1 x Serial remote port on RJ45 connectorSupports optional BKM 15R and/or BKM 16R remotes (sold separately)
SDI Standards 3G-SDI (SMPTE 425M), HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M)
Supported Resolutions SDI:
1920 x 1080 @ 50p / 50i / 60p / 60i / 24p / 23.98p
24PsF, 23.98PsF
1280 x 720 @ 60 or 50 Hz
720 x 576 @ 50i
720 x 480 @ 60iHDMI:
1920 x 1080 @ 50p / 50i / 60p / 60i / 24p / 23.98p
1360 x 768
1280 x 720 @ 60 or 50 Hz
1280 x 1024 / 768
720 x 576 @ 50i
720 x 480 @ 60i
640 x 480 – for computer sourcesComposite:
720 x 576 @ 50i
720 x 480 @ 60i
Format Support Composite: NTSC or PAL
Digital RGB: 720p, 1080i, 1080p
Digital Y Pb Pr: 720p, 1080i, 1080p
Digital Y R-Y B-Y: 525 or 625 line
Closed Caption Support Displays EIA 608, and EIA 708 captions
Operating Temperature 0°C to 35°C (32°F to 95°F)
Recommended: 20°C to 30°C (68°F to 86°F)
Storage Temperature -20°C to +60°C (-4°F to +140°F)
Operating Humidity 30% to 85% (no condensation)
Pressure Tolerance 700 hPa to 1060 hPa
Power Requirements AC Power Adapter: 100 to 240 VAC (1.3 to 0.6 A) / 50 or 60 Hz
Power Consumption Maximum: 115 W
Typical: 80 W
VESA Compatibility 100 x 100 mm
Dimensions (WxHxD) 581.0 x 386.6 x 65.5 mm* (22 7/8 x 15 1/4 x 2 5/8 inches) (without monitor feet)
581.0 x 409.1 x 165.0 mm (22 7/8 x 16 1/8 x 6 1/2 inches) (with monitor feet)
Weight Approx. 6.1 kg (13 lb 7.2 oz)
