€30,00 /Shoot Day
| Connections | |
|---|---|

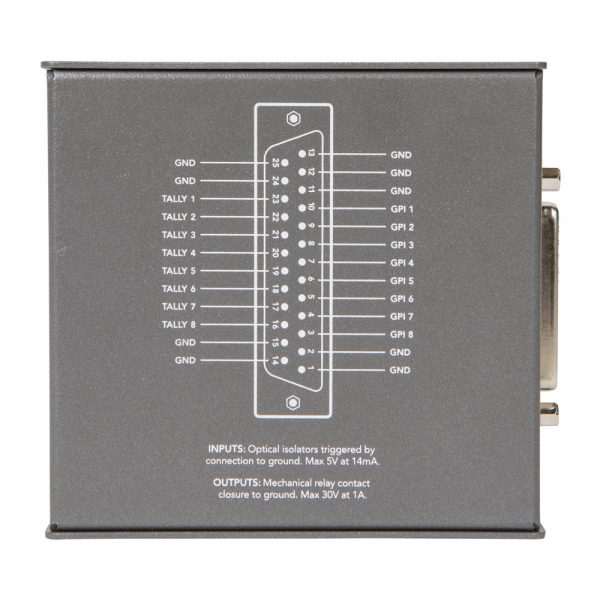

| Contact Closure | 25 pin D-type connector providing 8 opto isolated inputs and 8 relay contact closure outputs. |
| Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates. |
| Inputs | Optical isolators triggered by connection to ground. Max 5V at 14mA. |
| Outputs | Mechanical relay contact closure to ground. Max 30V at 1A. |

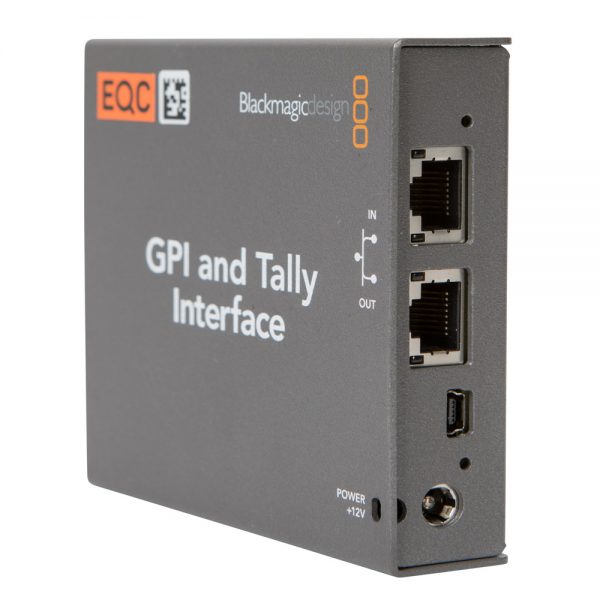

| Ethernet | 10/100 BaseT with loop through for connecting to other ethernet enabled equipment. |
| Software | |
| Software Included | Configured via ATEM Switcher Utility. |
| Internal Software Upgrade | Firmware built into software driver. Loaded at system startup or via updater software. |
| Operating Systems | |
| Mac 10.14 Mojave, Mac 10.15 Catalina or later. |
|
| Windows 8.1 and 10. | |
| Power Requirements | |
| Power Supply | 12V power supply included with international socket adaptors for all countries. |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20 – 60 degrees celsius |
| Relative Humidity | Up to 95% |

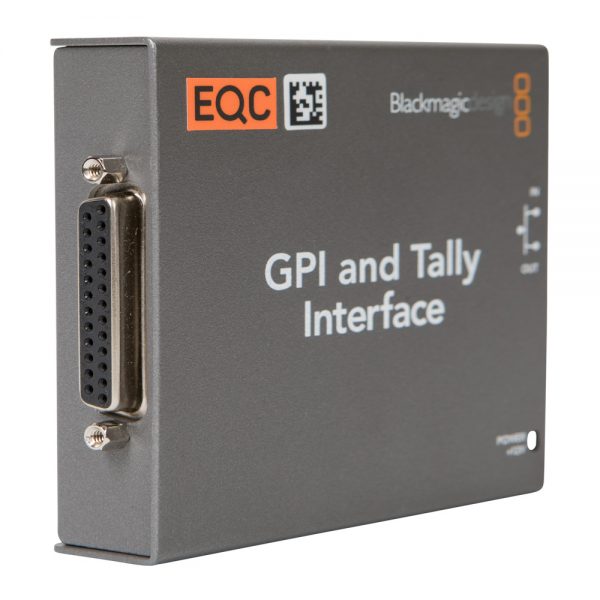

The Blackmagic Design GPI & Tally Interface is designed to work with ATEM production switchers and displays tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.

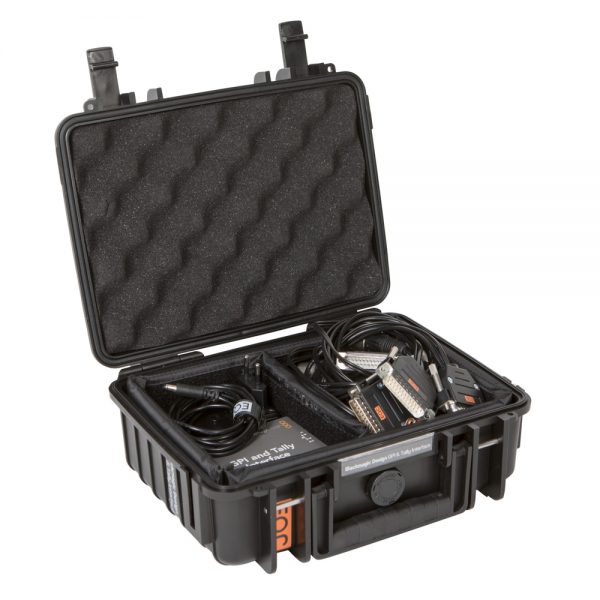

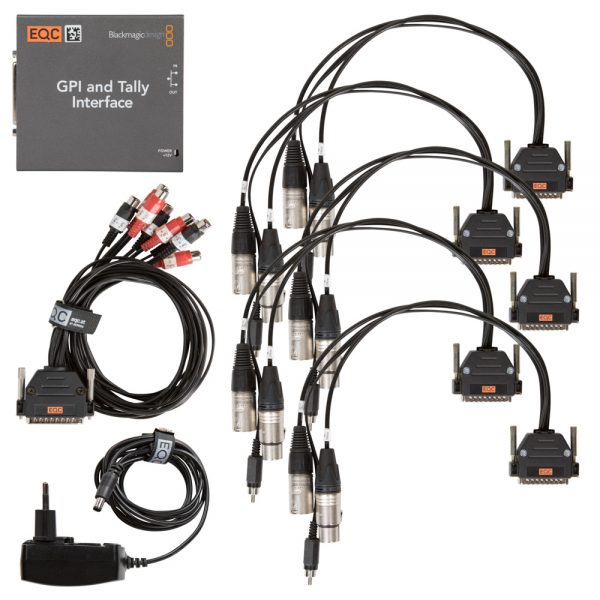

Furthermore, our Set includes a special cable set for the integration with Sony broadcast CCUs.
