Blackmagic Design HyperDeck Studio HD Mini

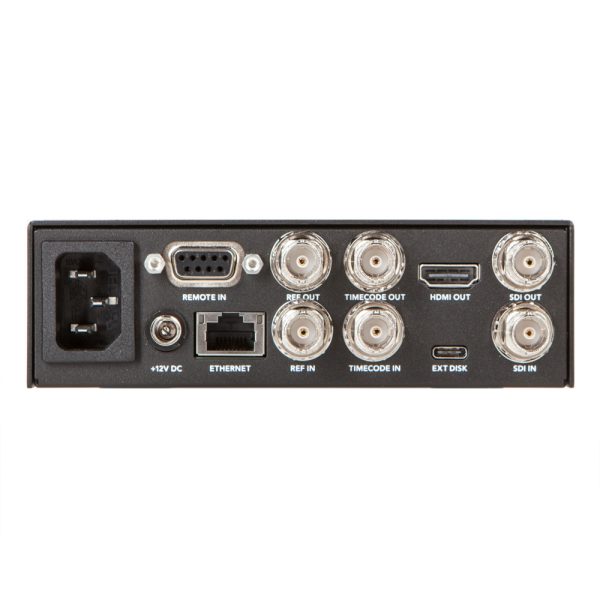

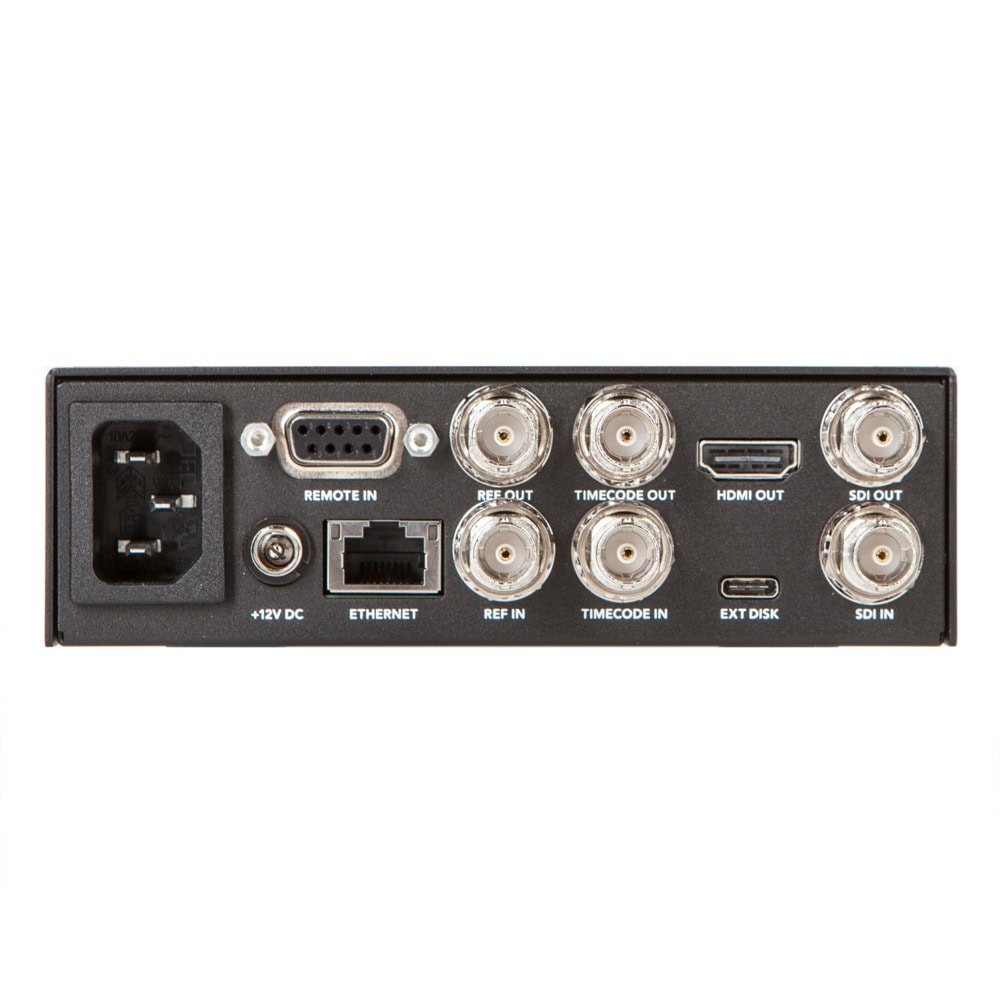

Take a compact broadcast-quality recording/playback deck to the set, studio, or rack-mounted with the Blackmagic Design HyperDeck Studio HD Mini. The 1U-high recorder is only 1/3 the width of a rack and runs on 100 to 240 VAC or an optional 12 VDC power supply, making it portable. With one 3G-SDI input, one HDMI and 3G-SDI output, and a USB Type-C webcam output, the recorder is flexible, allowing simultaneous input, recording, and output/streaming. With support for reference and timecode inputs and outputs, this unit fits perfectly into a broadcast environment, and you can use one recorder to create an ISO recording from any camera with perfect sync for live and post-production work.

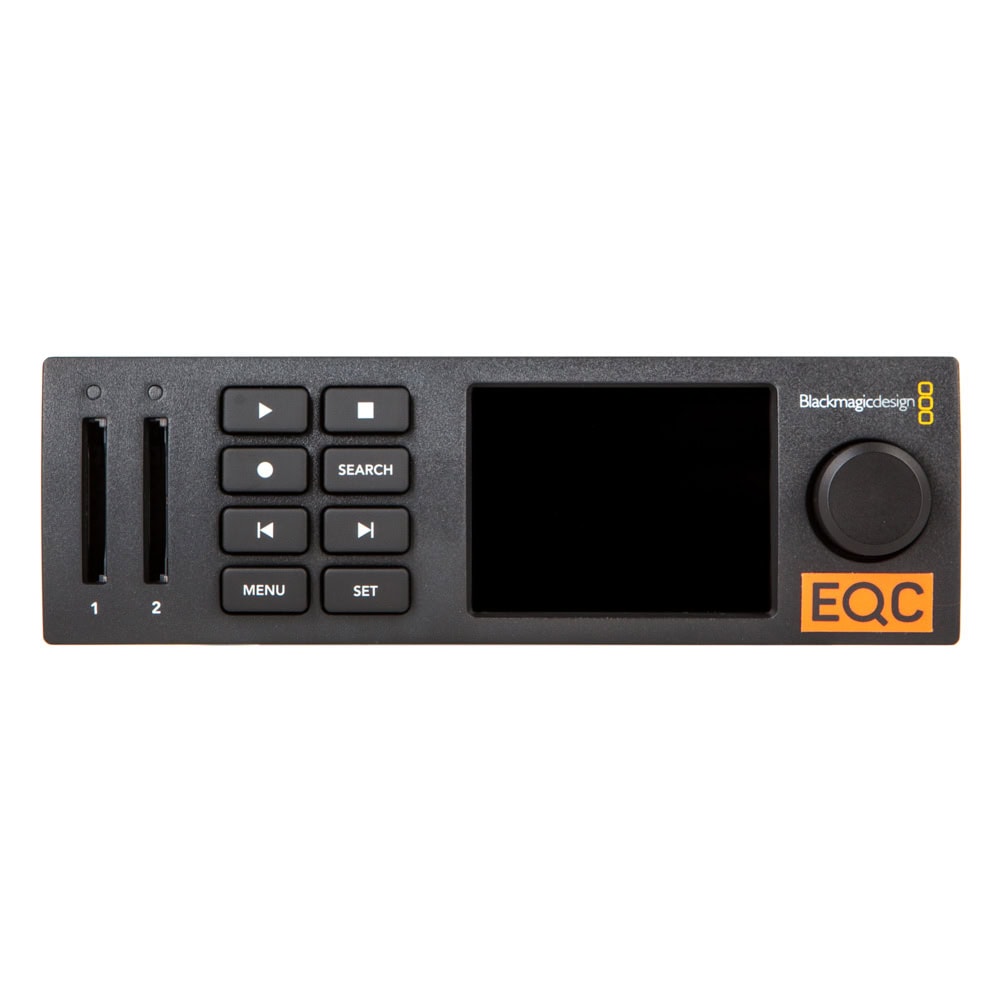

Two SD card slots allow you to record with virtually unlimited recording time, and the device also supports recording to USB media via the USB Type-C output. HyperDeck Studio HD Mini features front-panel button controls and a jog/shuttle wheel for an analog scrubbing feel. RS-422 control is supported for external control, and you can also control the unit via either the USB port or Ethernet at gigabit speed for faster deck control and file transfer via the RJ45 port. An integrated LCD on the front panel allows you to monitor the video.

In the Case

• HyperDeck Studio HD Mini
• AC-cable

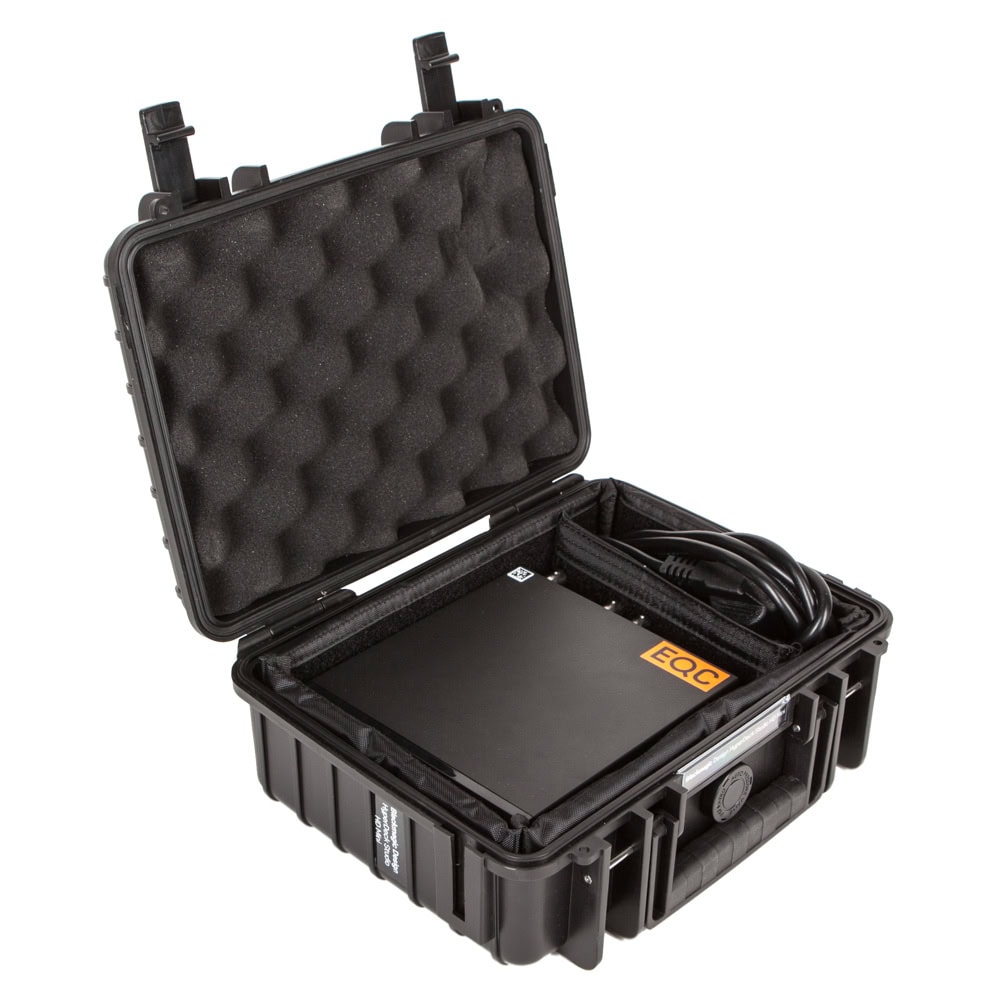

• Hard case
