| Inputs / Outputs | |
|---|---|
| Antenna I/O | 2 x RP-SMA Female |
| Video I/O | 1 x BNC (3G-SDI) Output 1 x HDMI 1.4 Output |
| Embedded Audio | HDMI/SDI |
| Audio I/O | No |
| Power I/O | 1 x USB-C Input 1 x Barrel Input |
| Encryption | 256-Bit AES |
| Wireless | |
| Wireless Range | 2.5 Miles / 4 km (Line-of-Sight) |
| # of Channels | 23 |
| Channel Bandwidth | 40 MHz |
| Frequency Range | Non-DFS Frequencies 2.4 to 2.48 GHz 5.15 to 5.25 GHz 5.72 to 5.85 GHz DFS Frequencies 5.25 to 5.35 GHz 5.47 to 5.6 GHz 5.65 to 5.72 GHz |
| Latency | 70 ms |
| Wi-Fi | Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) |
| Bluetooth | No |
| Mobile App Compatible | No |
| Cellular Support | No |
| Format Support | |
| Video Format | HDMI/SDI (10-Bit 4:2:2 YCC) 1080p: 60/59.94/50/30/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 |
| Audio Format | 16-Bit 48 kHz PCM Audio |
| Wireless Video Compression | Compressed |
| Timecode Support | No |
| Power | |
| DC Input Power | 6 to 18 VDC |
| Battery Type | 1 x L-Series, DJI WB37 (Interchangeable Mount) |
| Power Consumption | 9 W |
| Environmental | |
| Certifications | CE, FCC |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| General | |
| Dimensions | 5 x 3.4 x 1" / 127 x 87 x 26 mm |
| Weight | 12.3 oz / 350 g |

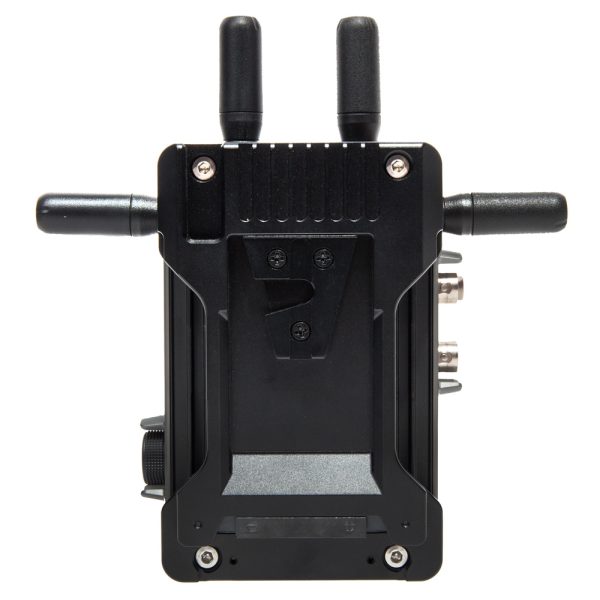

Get high-definition video from up to 4 kilometers (line of sight) away from your DJI video transmitter with this wireless video receiver from DJI. The receiver pairs with a separately available transmitter and transmits up to 1080p60 video using high-efficiency O3 Pro transmission technology over Wi-Fi 2.4 and 5GHz frequencies.
The receiver supports automatic frequency hopping to find the strongest signal and uses AES 256 encryption to protect your video from prying eyes. It allows you to receive simultaneously with other receivers, such as the High-Bright Remote Monitor, and the separately available transmitter can broadcast to an unlimited number of receivers at a slightly lower performance.
The receiver can be powered via V-Mount battery or its DC power input.
If needed, the range could be extended via our DJI Transmission High-Gain Antenna Set.
The DJI Video Receiver is compatible with third-party remote monitors and can output video directly through HDMI or SDI connectors without the need for additional expansion modules. Compared to the DJI High-Bright Remote Monitor, the DJI Video Receiver now supports metadata transfer and video output at fractional frame rates to meet the professional, cinematic needs of large production crews.
