Gimbals
G-RIG VALOS Solid State Gimbal System
- Body-worn stabilisation system for cameras up to 6 kg
- Smooth, shake-reduced handheld moves – independent of floor, vehicle or person
- One battery (Fuelunit 75, V-mount) powers the entire system – splash-proof
- “Ready to Shoot” concept: short training period, iOS & Android app included
- Please specify your camera type when ordering (matching power cable is supplied)
€300,00 /Shoot Day
1 Day
2 Days
3 Days
4 Days
5 Days
1 Week
€300,00
€570,00
€810,00
€1.020,00
€1.200,00
€1.470,00
+ 10% discount for online bookings · Prices excl. VAT and 7% insurance
- Description &Description &In the CaseIn the CaseDescription
- TechnicalTechnicalSpecificationsSpecificationsSpecifications
G-RIG VALOS Solid State Gimbal System Specs
| Manufacturer | G-RIG |
|---|---|
| Type | Solid-state gimbal system (VALOS) |
| General | |
| Material | carbon fiber, aluminum, stainless steel |
| Motors | 4 brushless high-resolution motors |
| Dimensions | |
| Height | 556 mm (21.9") |
| Width | 587 mm (23.1") |
| Depth | 350 mm (13.8") |
| Weight | |
| VALOS without camera mount | 3.1 kg (6.8 lbs) |
| Camera mount with rods | 0.38 kg (0.84 lbs) |
| Fuelunit 75 | 0.72 kg (1.59 lbs) |
| Ready-to-use weight | 4.2 kg (9.26 lbs) |
| Max. supported camera dimensions | |
| Height | 220 mm (8.6") |
| Width | 220 mm (8.6") |
| Depth | 340 mm (13.4") |
| Weight | 6 kg (13.2 lbs) |
| Axis operational range | |
| Yaw | ±90° |
| Pitch | ±90° |
| Roll | ±45° |
| Power | |
| Fuelunit 75 | 14.8V / 75Wh Li-Ion battery incl. D-Tap socket |
| Fuelstation | simultaneous charger for two Fuelunits – AC 110–240 V |
| Operation time | approx. 4 hours per charge (G-RIG with mid-weight camera) |
| Voltage converter unit | 5V, 7.2V, 12V (max 3A each), direct output |
| Electronics | |
| Controller | 3 axis |
| Bluetooth | low energy connection for iOS® & Android® |
| Power switch | controller & voltage converter unit |
| Remote control | Spektrum DX6 with 2.4 GHz DSM2 technology |
Description &In the Case
Description

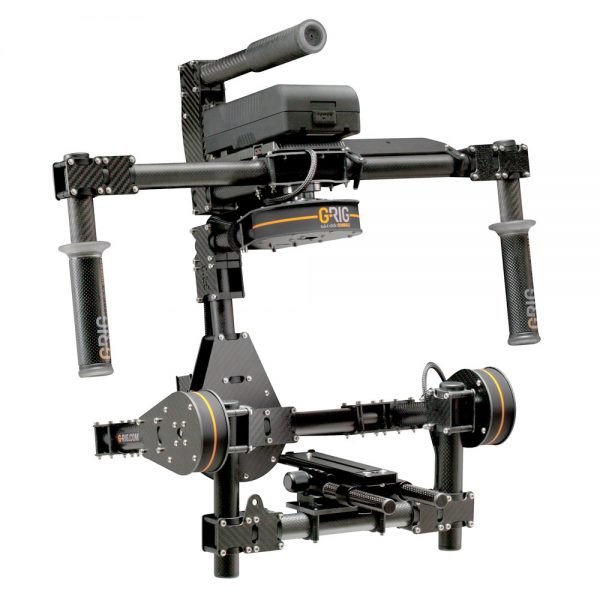

The G-Rig Valos is a body-worn stabilisation system for motion picture work. Combining a support vest (G-Vest) with an electronically assisted build, it enables smooth, shake-reduced handheld camera moves. The camera type must be specified when ordering, as the matching power cable is supplied.
Design
The system is basically designed for movie cameras up to 6 kg. The architecture of VALOS makes it independent from any kind of attachment to the floor, vehicles, persons or other given options and still delivers perfect shooting results.
Advantage
A single battery provides full power supply to all the system’s components. The “V-Mount Battery”, which is included in the delivery as “FUELUNIT”, has proved itself in the practice of professional filming for years. VALOS is splash-proof and can also be used in rainy conditions.
Ready To Shoot
Furthermore, VALOS stands out due to its “Ready to Shoot”-concept. This means that the operator can work with the system without purchasing any further products and start after only a short training period – in contrast to the Steadicam. An app for iOS® and Android® Devices is included and allows an easy configuration of the system software.

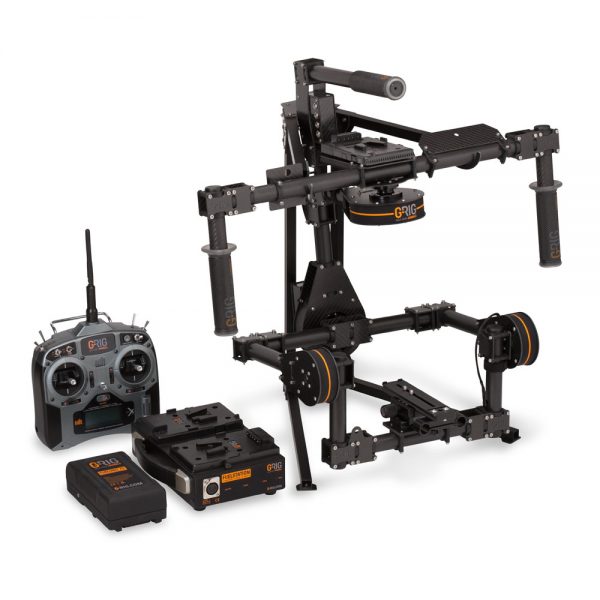

In the Case
- 3x Fuelunit 75
- Fuelstation
- Remote control
- Rod-Support System
- 6-part rod set
- G-Stand
- Accessory mount
- power cable (please specify camera type when ordering)
- G-Vest
- G-Pack
- G-Pack power cable
- Asus Nexus tablet
- Micro USB cable
- USB charger
- 2x allen key
- Bubble level
- 10x velcro straps
- AC power cable
- Hard case
