| Transmitter | |
|---|---|
| Interface | HDMI Input |
| SDI Input | |
| 2 Antenna Interfaces (RP-SMA Male) | |
| DC Input, Type-C USB | |
| Power Supply Range | 6~16V DC |
| Power Consumption | <10W |
| Net Weight | 192g |
| Size (LxWxH) | 112 x 65 x 23.5 mm |
| External antennas and battery plate excluded | |
| Input Video Format | HDMI: |
| 1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.9, 1080p25, 1080p24, 1080p23.98 | |
| 1080i60, 1080i59.94, 1080i50 | |
| 720p60, 720p59.94, 720p50 | |
| 576p50 | |
| 480p60 | |
| SDI: | |
| 1080p60, 1080p50, 1080p59.94 (Level A/B) | |
| 1080i60, 1080i59.94, 1080i60 | |
| 1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 | |
| 1080psf25, 1080psf24, 1080psf23.98 | |
| 720p60, 720p59.94, 720p50 | |
| Frequency | 5.1 – 5.9 GHz |
| Modulation Mode | OFDM |
| Transmission Power | Maximum 21 dBm |
| Receiver Strength | -80dBm |
| Transmission Latency | Less than 0.1s |
| Bandwidth | 20MHz |
| Receiver | |
| Interface | HDMI Output |
| SDI Output | |
| 2 Antenna Interfaces (RP-SMA Male) | |
| DC Input, Type-C USB | |
| Power Supply Range | 6~16V |
| Power Consumption | < 6W |
| Net Weight | 189g |
| Size (LxWxH) | 112 x 65 x 23.5 mm |
| External antennas and battery plate excluded | |
| Output Video Format | HDMI: |
| 1080p24, 1080p25, 1080p30, 1080p50, 1080p60 | |
| 1080i50, 1080i60 | |
| 720p50, 720p60 | |
| 576p50 | |
| 480p60 | |
| SDI: | |
| 1080p60, 1080p50 (Level A) | |
| 1080i60, 1080i50 | |
| 1080p30, 1080p25, 1080p24 | |
| 1080psf25, 1080psf24 | |
| 720p60, 720p50 | |
| Frequency | 5.1 – 5.9 GHz |
| Modulation Mode | OFDM |
| Transmission Power | Maximum 21 dBm |
| Receiver Strength | -80dBm |
| Transmission Latency | Less than 0.1s |
| Bandwidth | 20MHz |

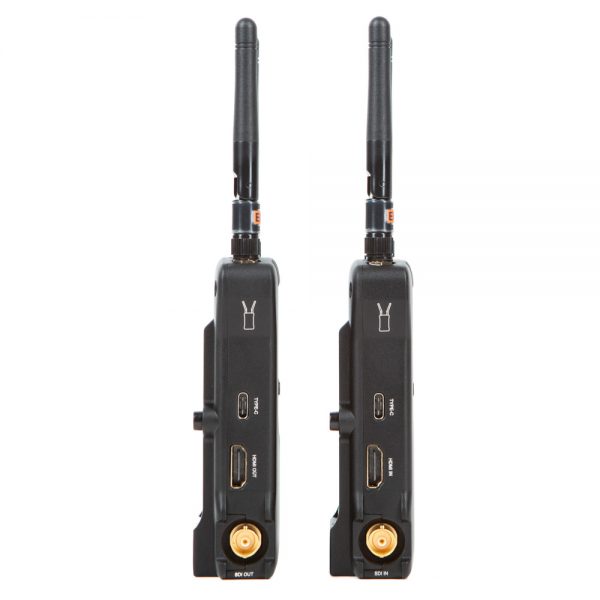

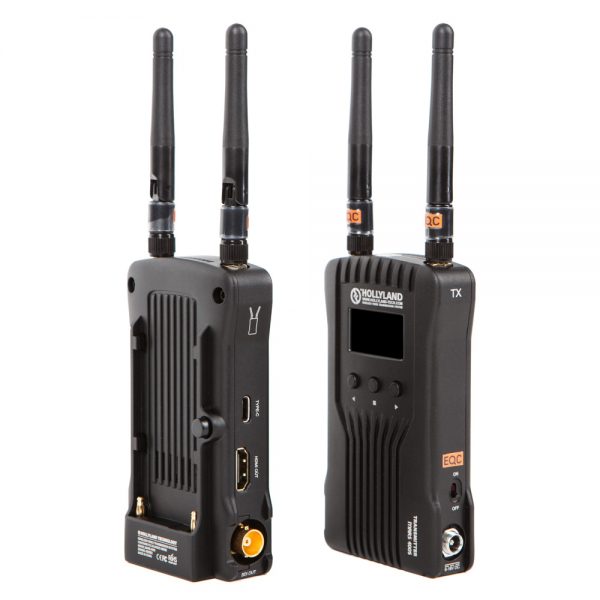

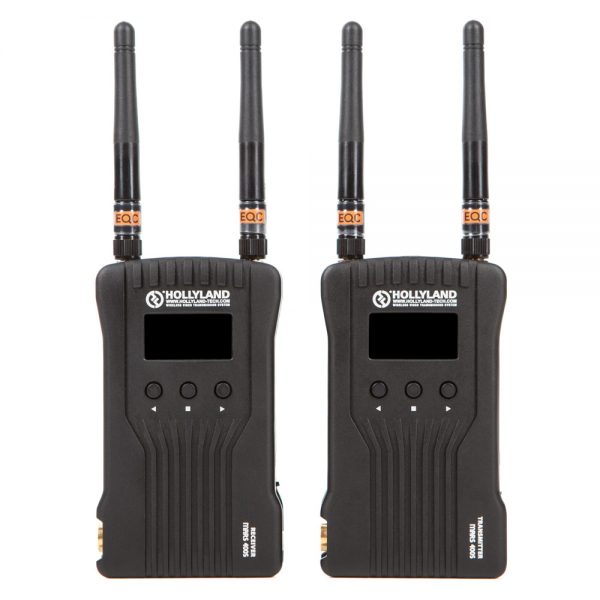

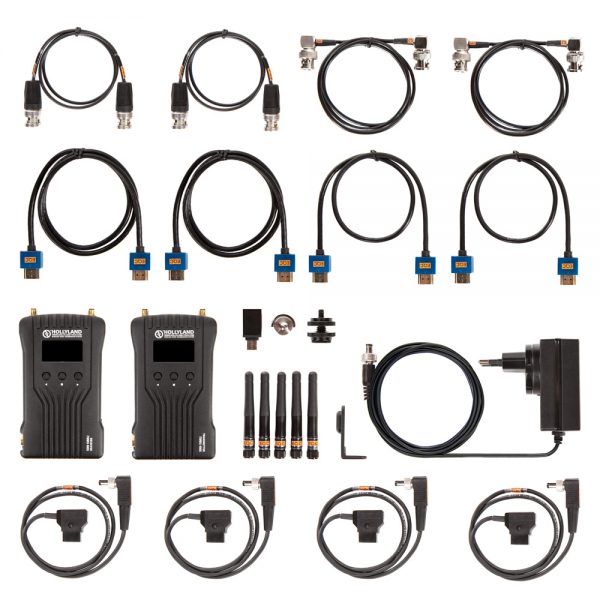

The Hollyland Mars 400S is an inexpensive but solid wireless video transmitting system. It supports both HD-SDI via BNC or HDMI video inputs and can be powered internally with NP-F batteries or externally with D-Tap. The package also includes an AC adapter. As a special feature, the system can also transmit to up to 4 iOS or Android devices, making it easy for crew members to monitor the action on set. We do not recommend this system for focus pulling, or where delay could be an issue. For normal monitoring, like when used by a director or client monitor, the system performs well.
