€50,00 /Shoot Day

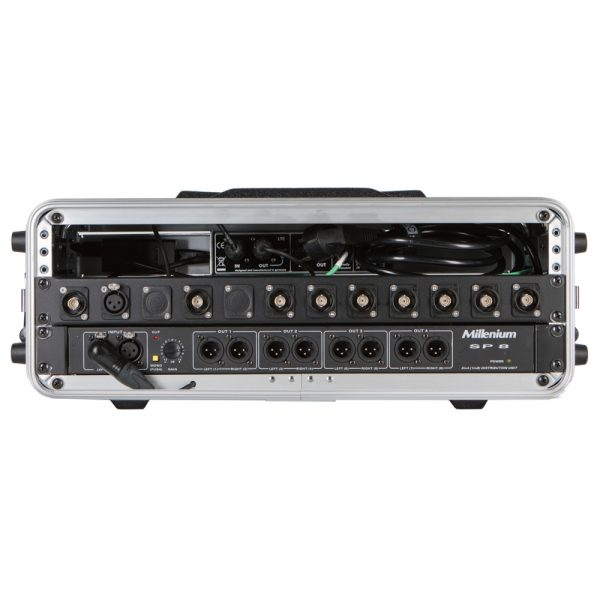

| LTC input | XLR 3-pin female, ,balanced, pin 1 = GND, 2 = (+), 3 = (-), source 1k ohm, short circuit proof. reads forward, reverse and stationary timecode at 5 to 500% of nominal speed (SMPTE 12M). input level tolerance -30 to +20dBu. |
|---|---|
| LTC output | XLR 3-pin male, balanced, pin 1 = GND, 2 = (+), 3 = (-). outputs nominal forward and stationary timecode (SMPTE 12M). output level adjustable from 0.. +8dBu (5.5Vpp). |
| MIDI input | 5-pin DIN connector, MIDI specification 1.0. MTC quarter frames, MTC full message, MMC stop, play, defplay, locate, Rosendahl Sysex. |
| MIDI output | 5-pin DIN connector, MIDI specification 1.0. MTC quarter frames, MTC full message, Rosendahl Sysex. |
| USB | USB type B, device class comliant MIDI (USB audio). plug & play with windows XP or later, MAC OSX. MTC quarter frames, MTC full message, MMC stop, play, defplay, locate. Rosendahl Sysex. |
| Sync input | BNC, internally terminated, 300mV sync, +/- 300mV tri-level. auto detection of the following video standards: 576i47.95, 576i48, 576i50 (PAL), 480i59.94 (NTSC), 480i60, 720p50, 720p59,94, 720p60, 1080i47.95, 1080i48, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. |

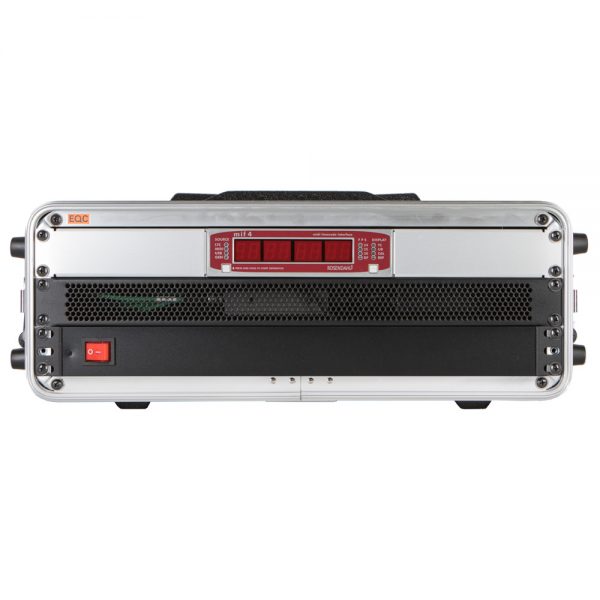

The Rosendahl MIF4 Mobile Timecode Unit is the perfect choice when using a multicamera setup. The unit provides professional interfacing to standard LTC (SMPTE) timecode. Rosendahl sync algorithms suppress timecode jitter and drop outs.
Live Production Features
Add timecode and reference sync signal with the Ambient Lockit ACN-CL, distribute both TC and REF signals with the unit-integrated distribution possibilities and add our Softron Multicam Logger to simply edit your multicam recording with just a few clicks.
