€65,00 /Shoot Day
Shipping Available
Shipping Available
| Camera Plate | |
|---|---|
| Camera Plate Features | Sideload, Sliding Balance Plate |
| Camera Plate Type | Sideload Plate |
| Camera Mounting Screw | 1 x 1/4"-20 Male 1 x 3/8"-16 Male |
| Balance Plate Sliding Range | 4.7" / 120 mm |
| Safety Lock | Yes |
| Plate Dimensions | 5.5 x 2" / 140 x 50 mm |
| Tripod Platform | |
| Base Mount | 75 mm Half Ball Sachtler SpeedSwap |
| Pan & Tilt | |
| Drag Control | Pan: Stepped 7-Step Plus 0 Tilt: Stepped 7-Step Plus 0 |
| Drag Type | Fluid |
| Vertical Tilt | +90° to -70° |
| Panning Range | 360° |
| Independent Pan Lock | Yes |
| Independent Tilt Lock | Yes |
| Physical | |

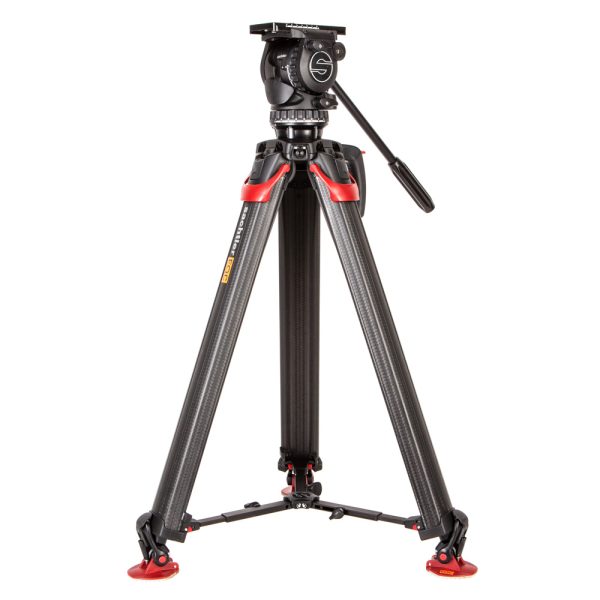

| Load Capacity | 0 to 26.5 lb / 0 to 12 kg |
| Counter Balance | Continuous 15-Step Plus 0 |
| Pan Handle Fittings | 2 x Rosette |
| Included Pan Handle Length | 16.9" / 430 mm |
| Bubble Level | 1 x Illuminated |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Dimensions | 7.3 x 6.1 x 3" / 186 x 156 x 75 mm |
| Weight | 6 lb / 2.7 kg |
| Packaging Info | |
| Package Weight | 10.55 lb |
| Box Dimensions (LxWxH) | 18 x 10.1 x 8.3" |
| General | |
| Head Mount Type | 75 mm Bowl |
| Load Capacity | 44 lb / 20 kg |
| Maximum Working Height | 60.24" / 153 cm |
| Minimum Working Height | 10.24" / 26 cm |
| Closed Length | 26.8" / 68 cm |
| Materials | Aluminum, Carbon Fiber |
| Weight | 6.4 lb / 2.9 kg |
| Legs | |
| Leg Lock Type | Flip Lock |
| Leg Sections | 3 |

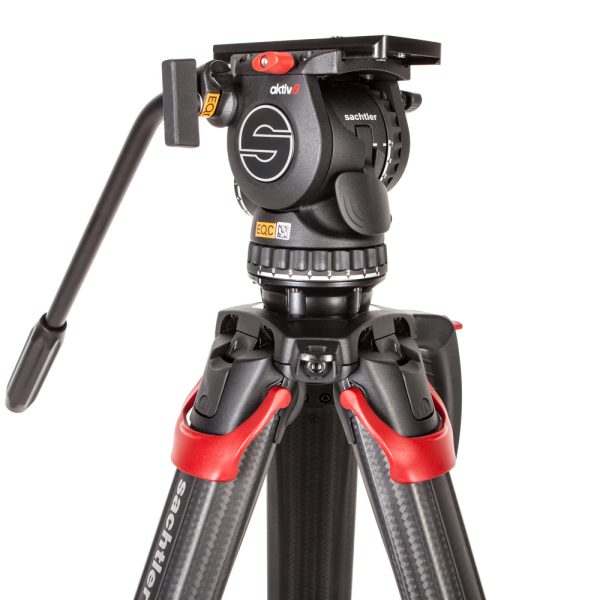

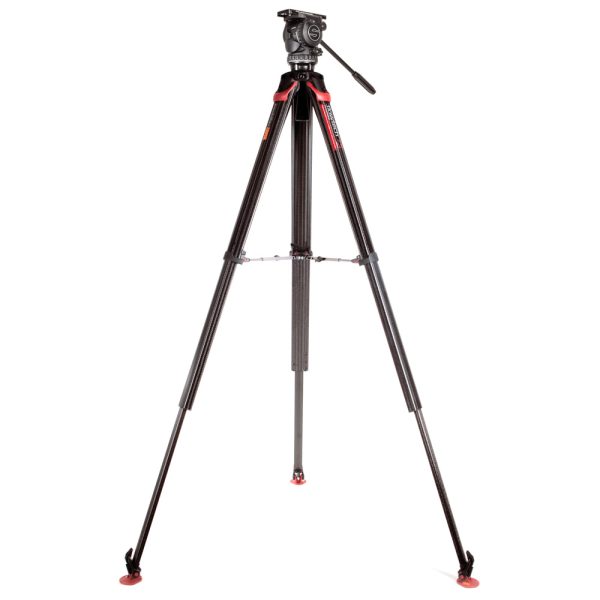

The aktiv8 Sideload Fluid Head uses Sachtler’s innovative SpeedLevel technology to provide near-instant mounting and leveling of your camera rig on select Sachtler tripods. The SpeedLevel clamp and bolt system saves valuable time when leveling your camera rig by eliminating the need to screw on a locking knob. Designed for documentary, news and corporate productions, the aktiv8 supports rigs weighing up to 26.5 pounds. This fluid head with 75mm ball base features 15 levels of counterbalance and seven levels of pan and tilt resistance adjustment, as well as zero settings for counterbalance and resistance.

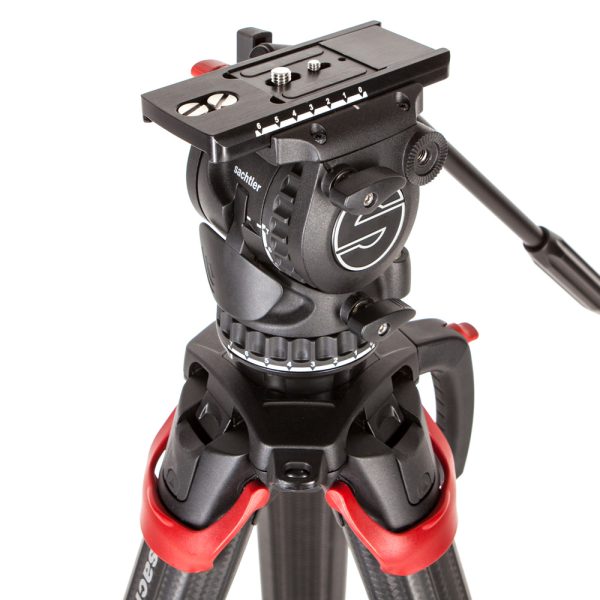

SpeedLevel technology replaces the traditional head screw and mounting system with a strong clamp integrated into the head shell and a bolt that attaches to the tripod shell or other mounting platform, such as a slider. Simply grab the large lever on the head and pull up to release the clamp, then push down to lock the head in place. By partially lifting the lever, you can quickly and easily level the head.
