€150,00 /Shoot Day
Shipping Available
| Kairos Controller | |
|---|---|
| Weight | 1,4kg |
| Dimensions | Width: 330mm Length: 170mm Height (with a joystick): 114mm |
| Compatible devices | motion control devices equipped with the HET BUS™ socket |
| Max recording time | 11min 56sec (up to 8 independent axes) |
| Supply voltage | 10..17V DC min 12W |
| Operating temperature range | 0..40C |
| Recommended relative humidity | <90% |
| Bull Head MK III | |
| Type | 2-axis remote head designed to achieve precise rotation of the medium size cameras or DSLR |
| Weight | 5kg |
| Head dimensions | 300mm x 330mm x 110mm |
| Head load capacity | 6kg |
| Maximum camera size | width: 175mm, height: 270mm |
| Range of head rotation angles | in the X-axis and Y-axis N x 360 |
| Maximum rotation speed | 72/s (360/5s) |
| Maximum acceleration | 360/s |
| Supply voltage | 10V to 17V DC max. 40W |
| Battery working time | 12V 7Ah min. 3h |
| Operating temperature range | -20 to +40C |
| Recommended relative humidity | up to 90% |

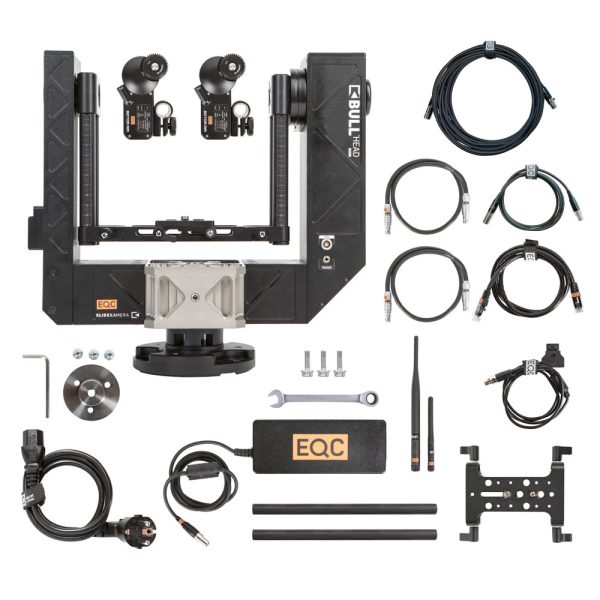

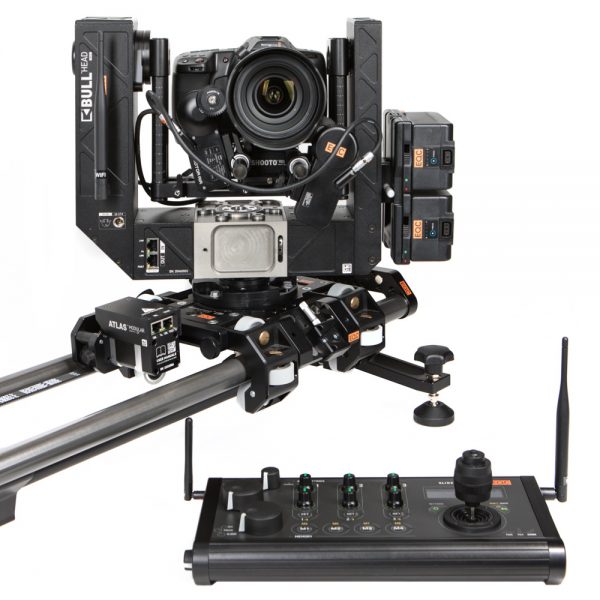

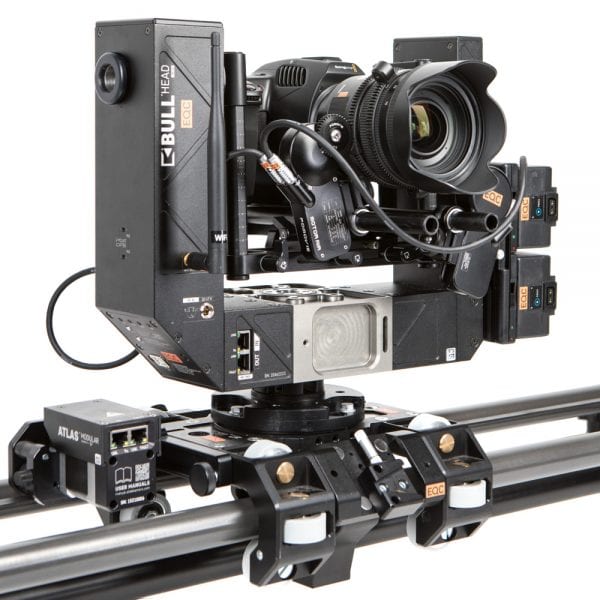

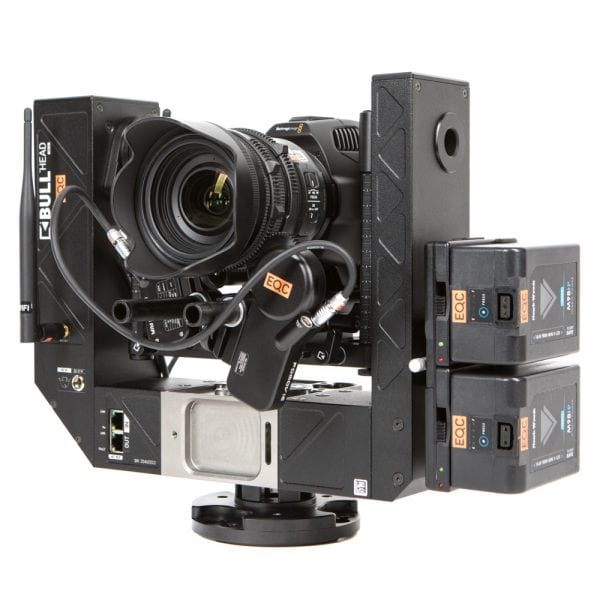

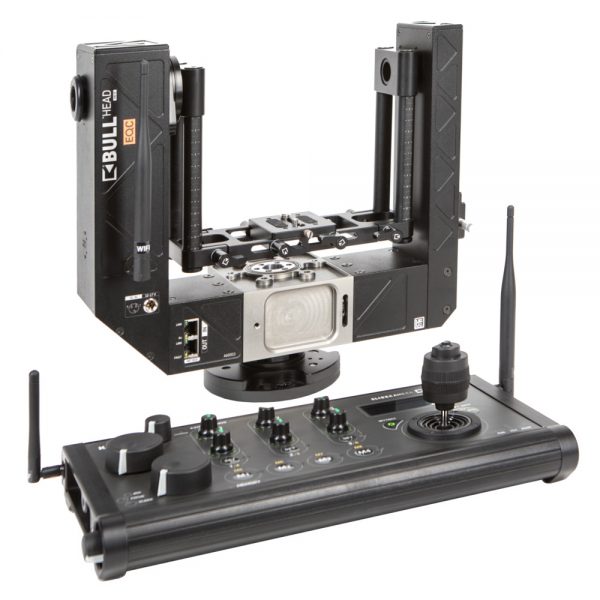

The Slidekamera Bull Head MKIII Remote Head Motion Control System includes the Kairos 6-axis controller for precise control of the system. It is also equipped with the HET BUS communication system, which allows control and power of the PDMOVIE Lens Control System through one connector. You can easily program the system for simultaneous motion control of the axes and motors. Thanks to its uniquely rigid construction, the head can easily carry medium cameras up to 6kg, providing smooth motion, without any vibrations or jerks.
The Bull Head MK3 is perfect for any application that requires precise movement like live action, timelapse, stop motion or VFX shots.
Wireless and wired Control

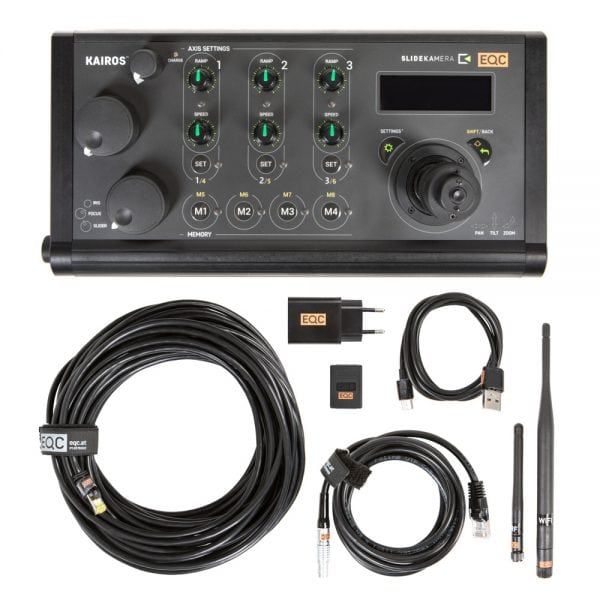

The Kairos controller could be connected through cable, by RF or via WLAN and allows to control up to four independent axes in real time. Potentiometers placed on the control panel allow the adjustment of current motion parameters. You can directly modify settings without searching through complicated menus and working with imprecise touch interfaces. The Kairos guarantees you can work quickly and precisely.
Large joystick perfectly transfers your hand movement to the camera position. Now you can make fluid, well composed and perfectly synchronised shots.
You can use 3-axis joystick or large knobs. By default the biggest knob controls the motion of the slider, smaller ones control the lens motors and the joystick – the movement of the head. All axes are configurable and it’s up to you which elements you will use to control your devices.
Book your suitable Slidekamera Atlas Modular Slider and Slidekamera Atlas Modular Drive
Please ask us for a qualified operator!

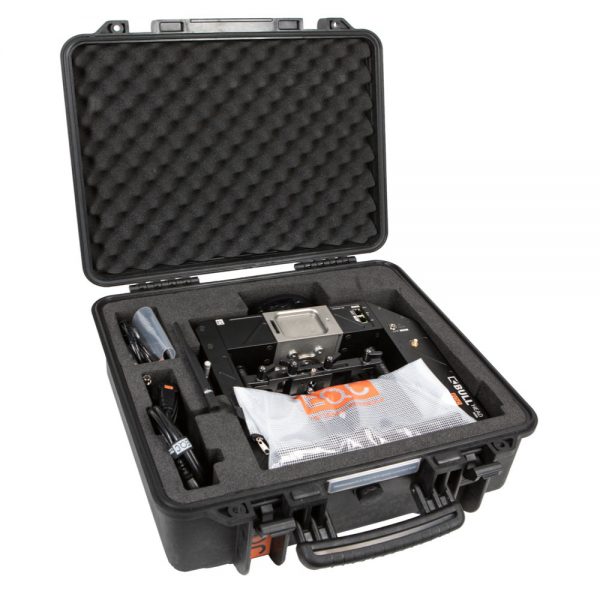

In the Case #1

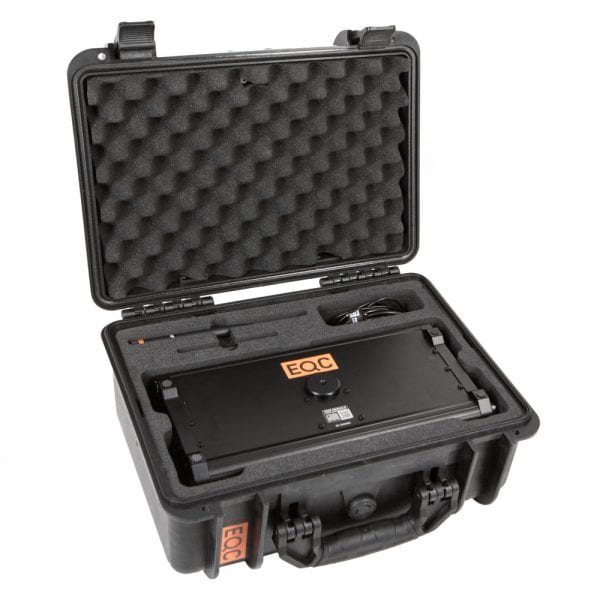

In the Case #2
