Sound Devices 302 Portable Mixer

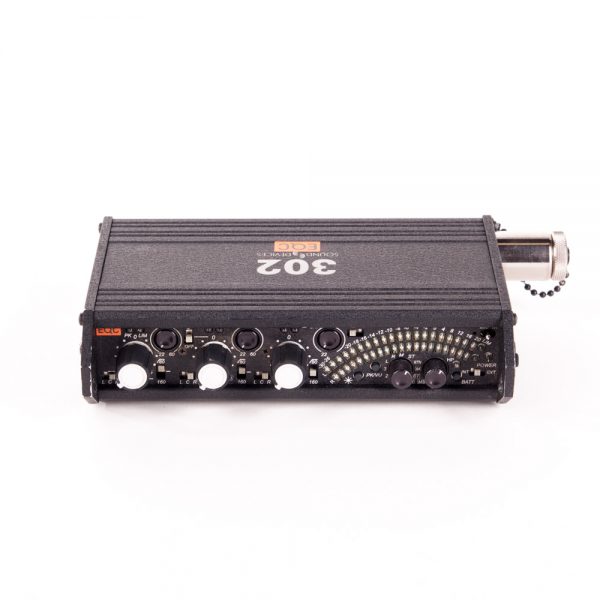

- 40-segment tri-color LED output meter

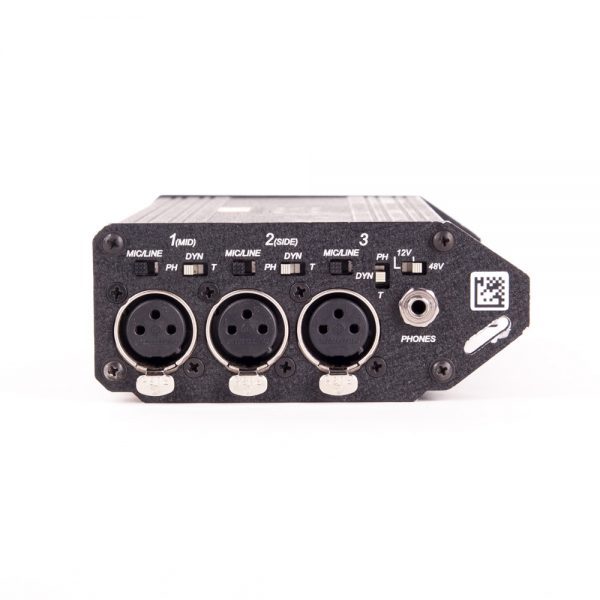

- Transformer-balanced mic/line XLR input
- Mic / line input sensitivity switch
- Phantom, dynamic, or T powering switch
- 48 V or 12 V global phantom voltage
- 3.5 mm TRS headphone output connector
- Battery tube – holds 3 AA batteries
- External DC input for 5 – 18 VDC
€30,00 /Shoot Day
1 Day
2 Days
3 Days
4 Days
5 Days
1 Week
€30,00
€57,00
€81,00
€102,00
€120,00
€147,00
+ 10% discount for online bookings · Prices excl. VAT and 7% insurance
- Often rentedOften rentedtootooOften rented
- Description &Description &In the CaseIn the CaseDescription
- TechnicalTechnicalSpecificationsSpecificationsSpecifications
- Manuals &Manuals &DownloadsDownloadsManuals
Often rented too
-
Battery Packs, V-Mount Batteries, Power
IDX IPL-98 14.4V 96Wh Stackable V-Mount Li-Ion Battery with dual D-Tap and USB
Battery Packs, V-Mount Batteries, PowerIDX IPL-98 14.4V 96Wh Stackable V-Mount Li-Ion Battery with dual D-Tap and USB
- 96Wh capacity
- PowerLink capability (stackable up to four IPL-98/IPL-150 or IDX brand V-mount battery)
- Meets passenger aircraft travel regulations
- Capable of handling up to 10A loads
- 80W D-Tap Advanced Output (unregulated)
- 80W D-Tap Output (unregulated)
- DC 5.0V /2.3A USB output
- 5 Power Indicator LEDs (displaying 10% increments)
-
Wireless Audio, Sound
Sony UWP-D Dual Wireless Set – Freq. Range 33-40
- Dual receiver and 2x transmitter set
- Digital companding circuitry
- Automatic channel scanning
- Integrated 3-channel mixer at receiver
- Selectable mic/line input at transmitter
- Adjustable attenuator
- Simultaneous multi-channel operation
- UWP and WL-800 series compatibility
Sound Devices 302 Portable Mixer Specs
| Frequency Response | 20 Hz – 30 kHz, +0.2, -0.5 dB, -1 dB @ 5 Hz and 50 kHz typical |
|---|---|
| Equivalent Input Noise | -126 dBu (-128 dBV) maximum (22 Hz – 22 kHz bandwidth, flat filter, trim control fully up) |
| Input Clipping Level | 0 dBu minimum (trim control fully down) |
| Line Output Clipping Level (1% THD) | 20 dBu minimum, 18 dBu minimum with 600 ohm load |
| Dynamic Range | 115 dB minimum (trim fully down) |
| THD + Noise | 0.007% typical (1 kHz, +4 dBu at Line out), 0.009 max (50 Hz to 20 kHz, +18 dBu at line out, fader fully up) |
| Output Noise | -100 dBu (-102 dBV) maximum (22 Hz – 22 kHz bandwidth, flat filter, master gain fully up, faders fully down) |
| L/R Gain Matching | +/- 0.1 dB (Mic In to Line Out) |
| Metering | 40-segment, sunlight-viewable Selectable peak, VU, or peak (with or without peak hold) + VU ballistics |
| High-Pass Filters | Switchable 80 Hz or 160 Hz, 12 dB/oct, silent activation |
| Mic Powering (each mic selectable) | None, 12 V phantom, 48 V phantom, 12 V T-power, selected per mic input |
| Input Limiters | +18 dBu threshold, 20:1 limiting ratio, 1 mS attack time, 200 mS release time. |
| Output Limiters | Affects the outputs of the mixer. Threshold selectable from +4 dBu to +20 dBu, 1 dB steps, 20:1 limiting ratio, 1 mS attack time, 200 mS release time |
| Power supply | Internal ±16 V (bi-polar) regulated audio rails, 2.4 – 6 V range internal batteries, isolated (floating) external DC input jack, 5-18 V locking 4-pin Hirose connector, pin-4 = (+), pin-1 = (-) |
| Temperature | Operating: -20°C to 60°C, 0 to 95% relative humidity; (non-condensing), storage: -40°C to 85°C |
| Weight | 0.85 kg, (1.8 lbs) unpackaged with three alkaline AA batteries |
| Dimensions | 47 mm x 214 mm x 114 mm (H x W x D), 1.8" x 8.4" x 4.5" |
Description &In the Case
Description
The Sound Devices 302 is the most compact and cost-effective, battery-powered, professional audio mixer in its class. This no-nonsense, rugged little mixer features three exceptionally quiet mic preamps and balanced transformers to perfectly handle very low frequencies. With important features to accommodate nearly any over-the-shoulder production, the 302 interfaces with wireless transmitters and receivers, camera audio inputs of all kinds, and external audio recorders.
In the Case
- Setup guide
- EQC bag
