| Type |

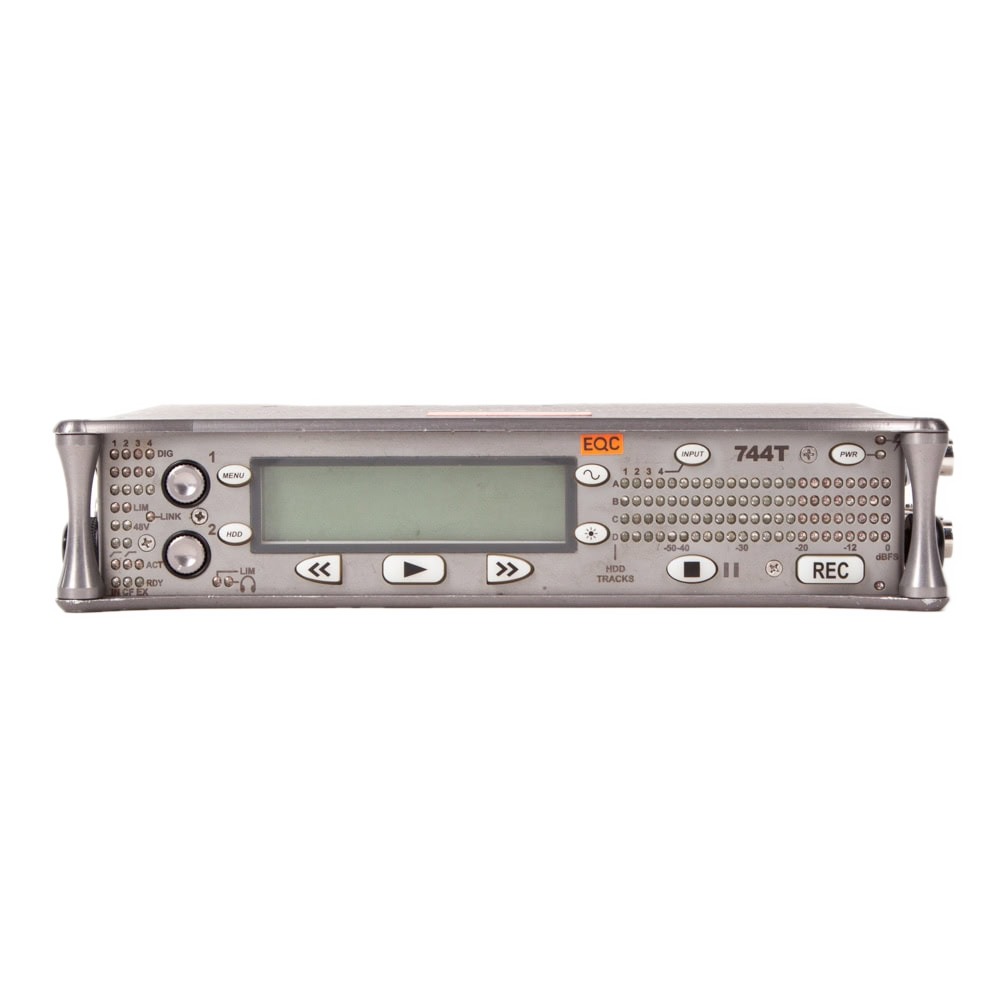

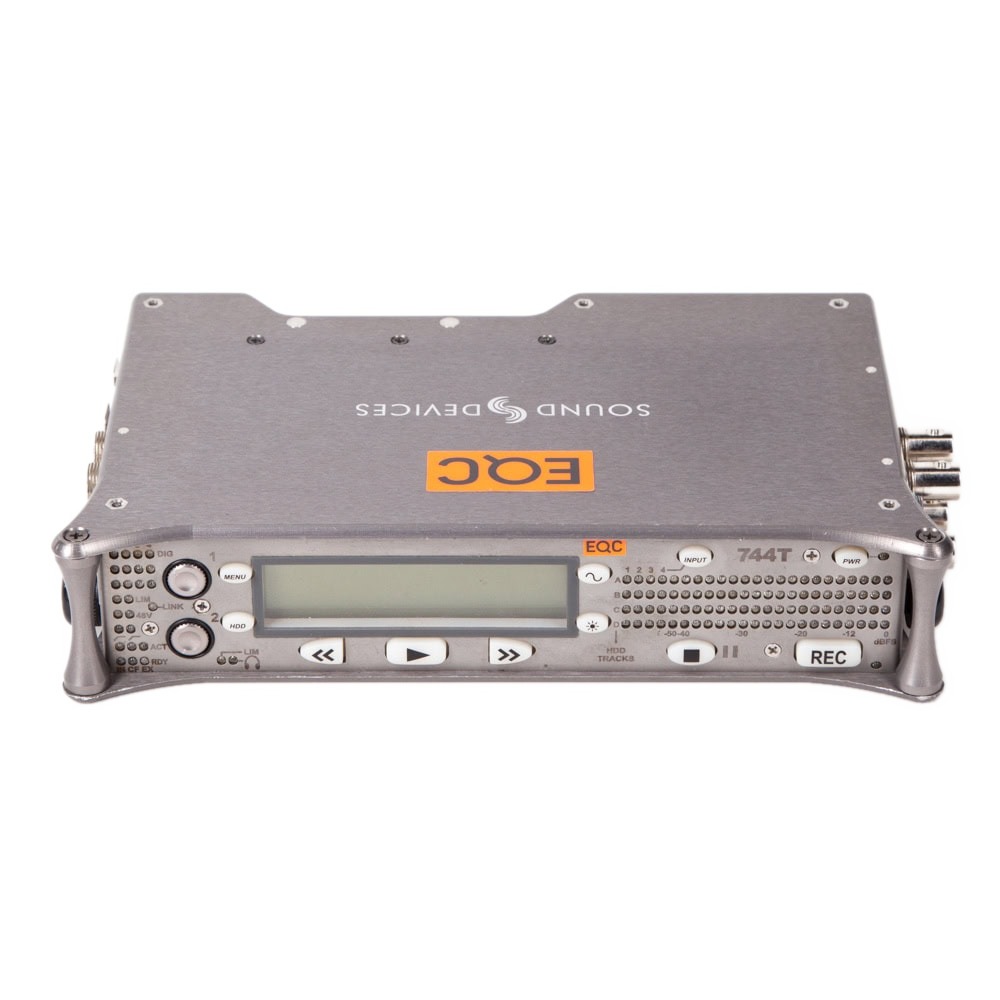

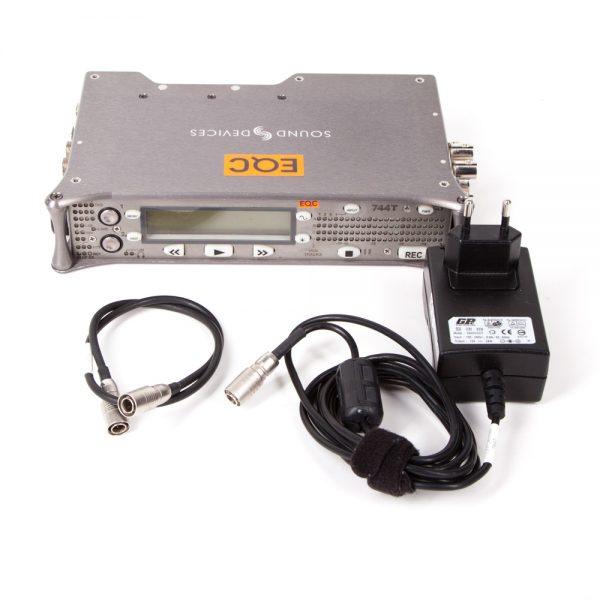

Portable 4-channel digital hard disk recorder |
| Recording/Reading Methods |
Medium:
Internal 160GB SATA hard srive
Compact flash type I, II and Microdrive*File Format:
WAV, BWF, MP3
*FAT32 Formatted |
| Recording Bit Rate |
16-bit, 24-bit |
| Sampling Frequency |
Internal: 32, 44.1, 48, 48.048, 88.2, 96, 96.096, 176.4, 192kHz
External: 32-192kHz (Word Clock Input) |
| Number of Channels |
4 |
| Frequency Response |
10Hz – 40kHz, +0.1/-0.5dB (gain controls centered) |
| Signal-to-Noise Ratio |
Not specified by manufacturer |
| Dynamic Range |
A/D:
114dB, A-weighted
110dB, 20Hz – 22kHz bandwidth
D/A:
112dB, A-weighted
108dB, 20Hz – 22kHz bandwidth |
| Total Harmonic Distortion (THD) |
Mic: 0.004% max. (1kHz, 22Hz – 22kHz BW, gain control down, -15dBu input)
Line: 0.004% max. (1kHz, 22Hz – 22kHz BW, gain control down, +16 dBu input |

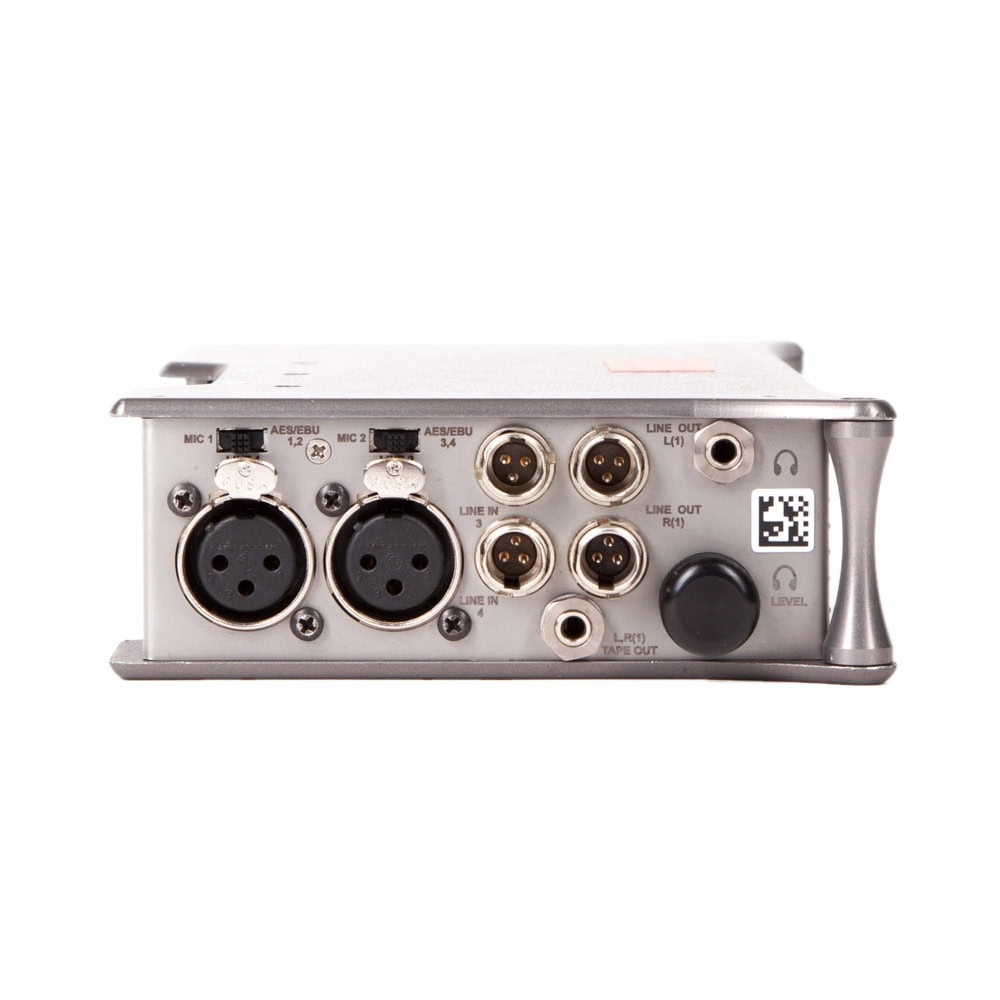

| Inputs |
1 x XLR mic/line/AES3 (1,2) input, balanced
1 x XLR mic/line/AES3 (3,4) input, balanced
2 x TA3 channel 3,4 line in, balanced
1 x RJ-12 C.Link (RS-232) in
1 x BNC word clock in
1 x Hirose 4-pin DC in |

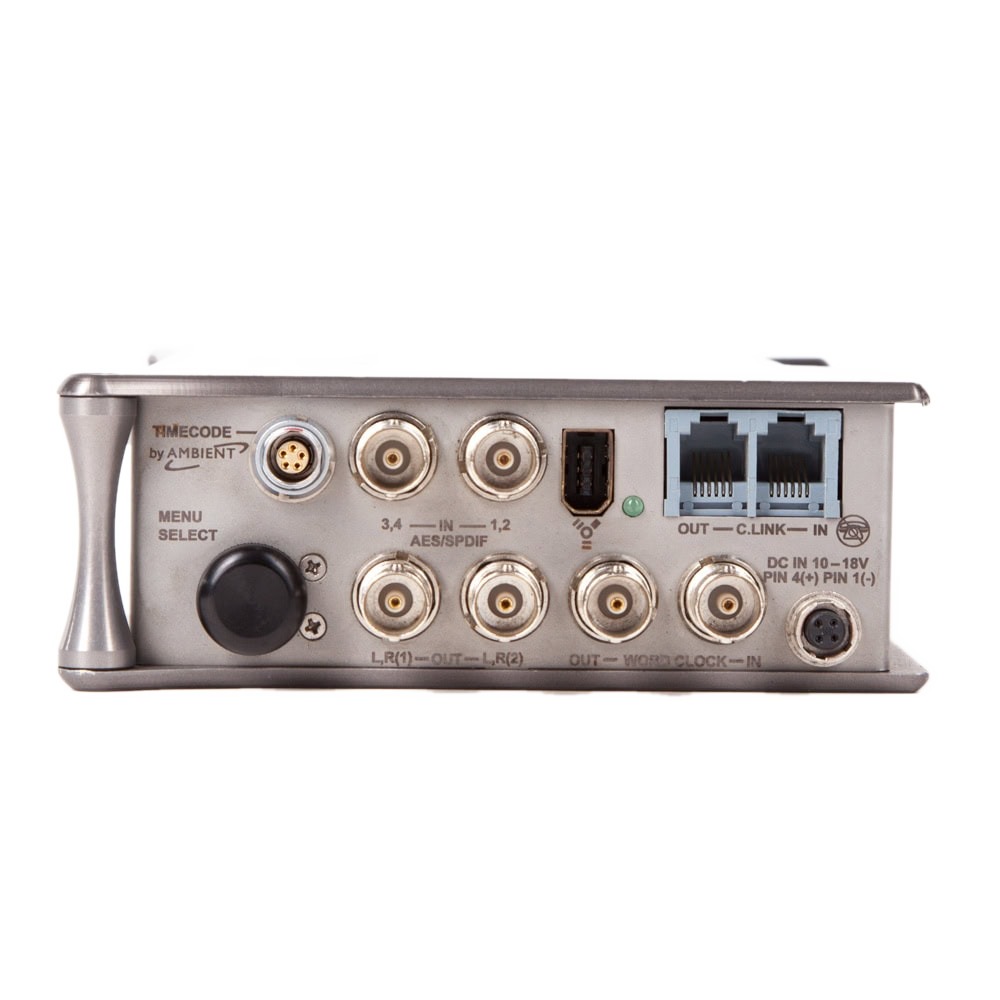

| Output |
2 x TA3 master analog out (L, R), balanced
1 x 1/8" stereo mini tape output
1 x 1/8" stereo mini headphone output
1 x 5-pin LEMO timecode in/out
1 x Firewire IEEE-1394 port
1 x RJ-12 C.Link (RS-232) output
1 x BNC word clock output
1 x BNC AES/SPDIF (L, R) digital master output bus
1 x BNC AES/SPDIF (L, R) digital output nus 2 |
| Headphone Output |
1/8" stereo mini jack |
| Dimensions (WxDxH) |
209 x 125 x 44mm (8.2 x 4.9 x 1.8") |
| Weight |
1.2kg (2.6 lb) without battery |
| Specialties |
Timecode and word clock input/outputs
24-bit/192 recording resolution
Large 202 x 32-pixel backlit LCD display |
