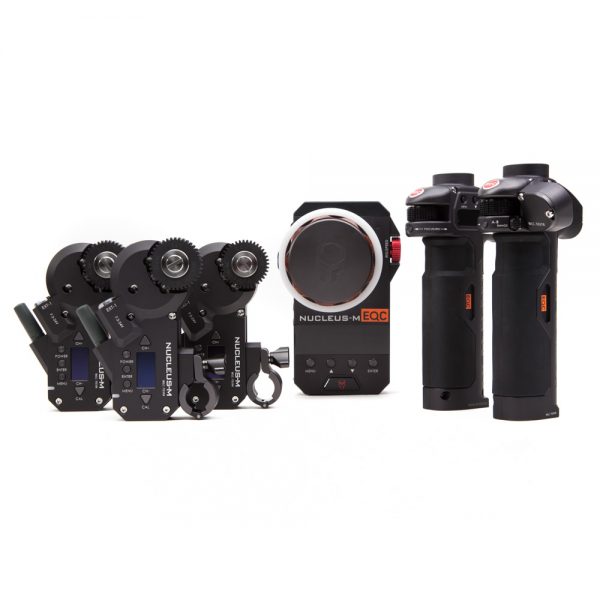

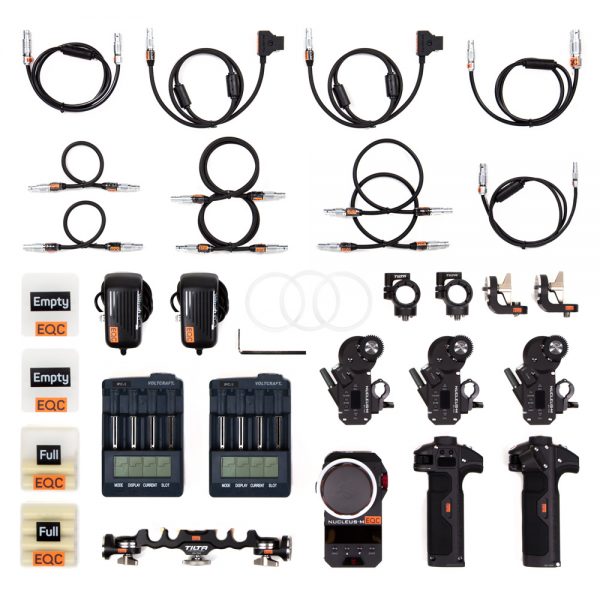

The Tilta Nucleus-M Wireless Follow Focus System features a 300m transmission range and comes with three lens drive motors with built-in wireless receivers, a FIZ hand controller and two handgrips – one to control focus, and the other iris and zoom.

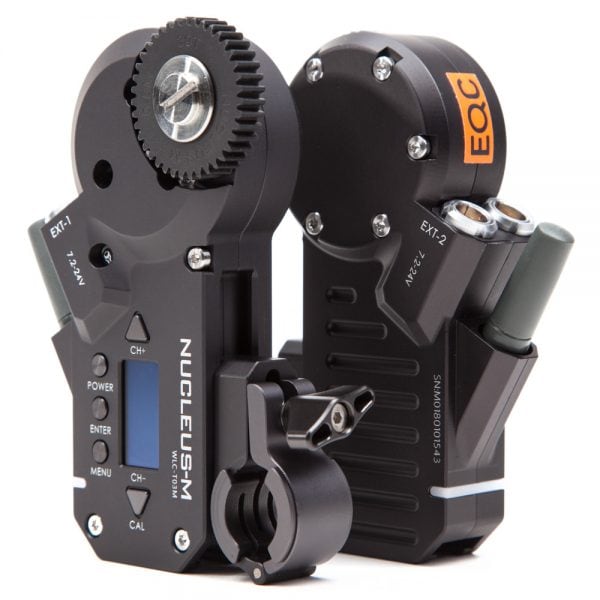

Motors
The lens drive motors of the Tilta Nucleus-M are extremely powerful – each features a cine standard 0.8 MOD drive gear and two 7-pin connectors, which enables you to freely swap or interchange each motor. The motors power by daisy-chaining using the 7-pin cables, and each motor includes a 19mm rod clamp with 19 to 15mm reducing bushing.

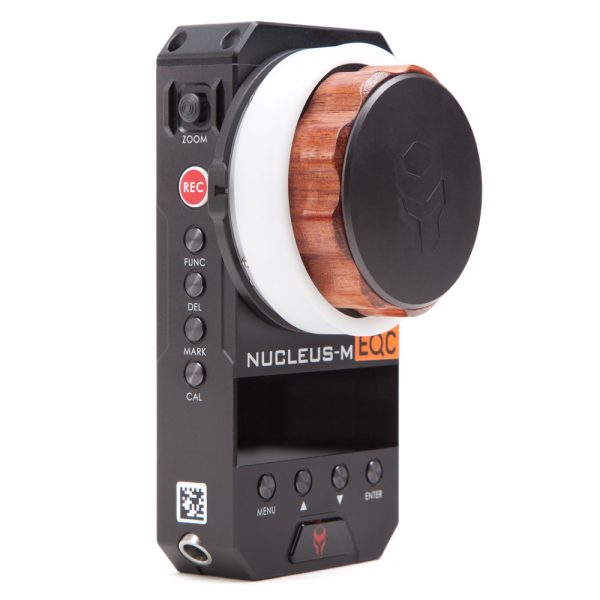

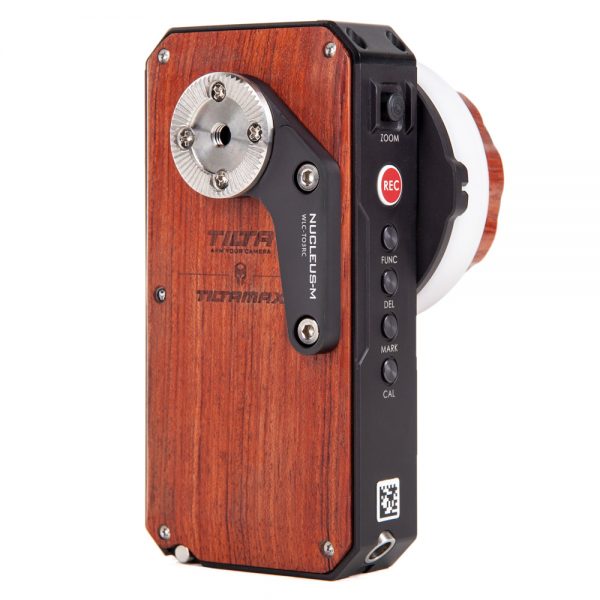

FIZ Hand Controller
The FIZ hand unit is capable of controlling 3 channels – focus, zoom, and iris as well as overriding the hand grips. Motors can be calibrated on lenses without hard stops – such as photo-lens with follow focus gears and they will fit standard 15mm and 19mm Rods. The throw of the control can be adjusted so you can have a very smooth control of ex. the focus. This can be done on either the FIZ unit or the handgrips. The batteries in the FIZ hand controller will last for more than 10 hours, and up to 48 hours in each handgrip, when idle.

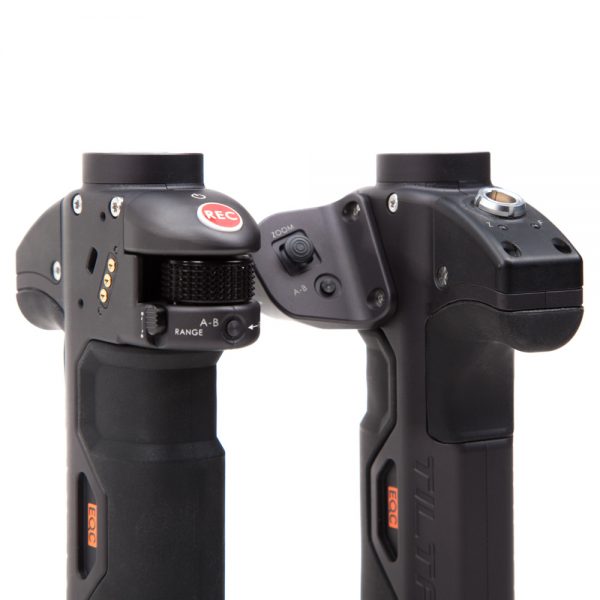

Handgrips

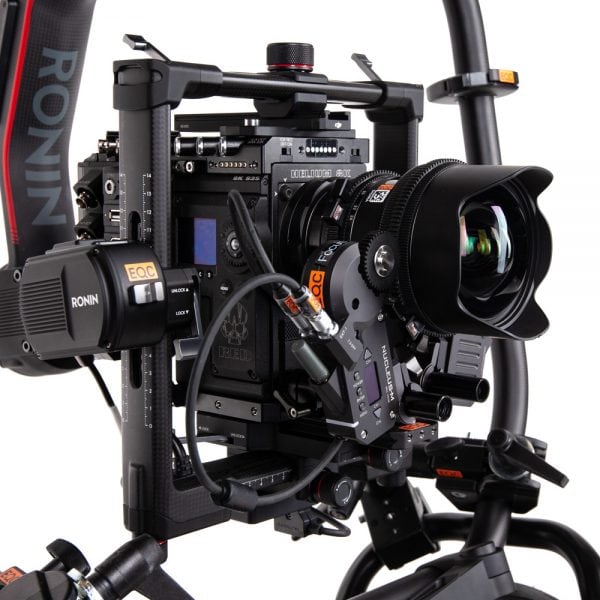

The handgrips feature adapters that enable mounting the controllers onto ARRI-compatible rosettes or onto 25/30mm diameter rods, such as those used with gimbals.
With our optionally available monitor support, you can attach monitors and wireless transmitters with ease
