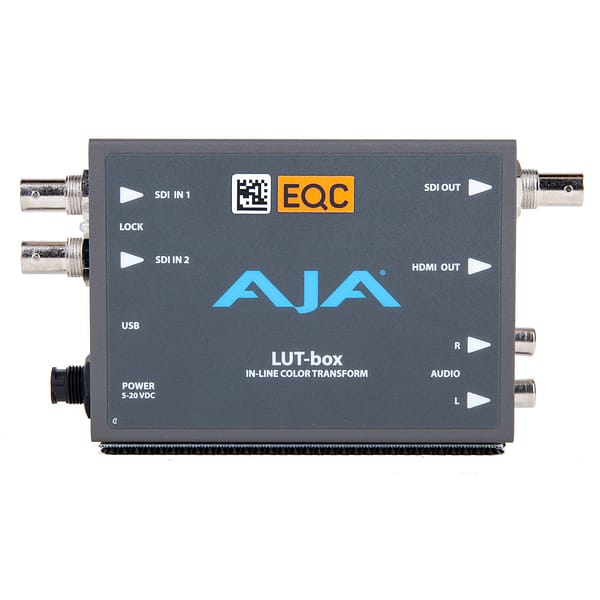

AJA LUT-box


  • Loads 3D LUTs for color space adjustment
  • 3D LUTsSupport at 17x17x17
  • 12-Bit processing
  • Supports .lut, .txt, .3dl, .cube formats
  • Configurable via AJA MiniConfig software
  • Passes 8 of 16 SDI audio Ch to HDMI out
  • 2-Ch RCA analog audio output

40,00

The AJA LUT-box allows you to load 3D LUTs via USB to adjust the color space from a source signal, ensuring that every monitor you use shows the correct look for that signal. It supports 3D LUTs at 17x17x17 at 12-bit processing in .lut, .txt, .3dl, .cube file formats.

Featuring HDMI and 3G-SDI outputs, it lets you output to HDMI and SDI monitors at the same time from a single unit. The original footage is maintained in an alternate color space so you can take advantage of additional dynamic range.

In the Case
  • AJA LUT-box
  • AC adapter
  • EQC bag
Video Input 2x 3G-SDI with embedded audio
Input Formats 720p 50, 59.94, 60
1080i 50, 59.94, 60
1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive)
2K x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
2K x 1080PsF 23.98, 24, 25, 29.97, 30 (converts to progressive)
Video Outputs 3G-SDI with embedded audio
HDMI with embedded audio, 30-bit Deep Color support
Audio Input SDI embedded audio, select 8 of 16 channels and pass to the HDMI output
Audio Output 2-channel RCA-style (-10 dBV nominal)
LUT File Format Support .lut, .txt, .3dl, .cube
Power 100-240 V, 50/60 Hz universal input
+5 V DC regulated, 7.5 W capacity
Dimensions 14.7 x 7.9 x 2.5 cm (5.8 x 3.1 x 1″)
