Actioncams / Minicams / GoPro

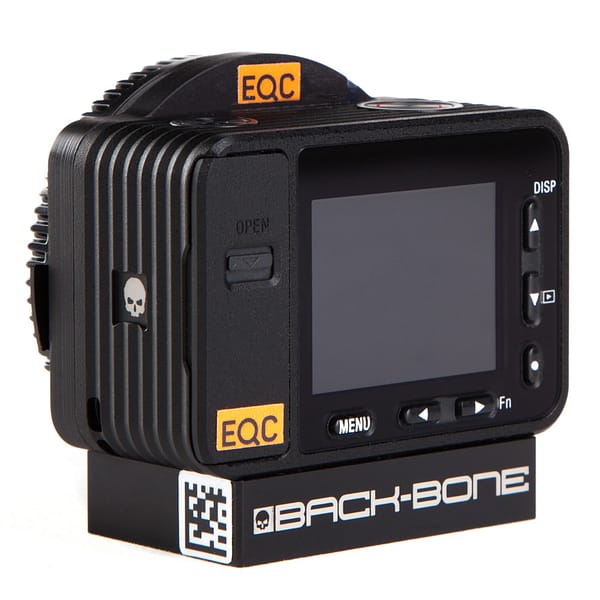

Back-Bone Ribcage RX0 Actioncam Kit
- Sony RX0 action cam with MFT mount* & C-mount
- 1” (1.0-Type) stacked Exmor RS CMOS sensor with DRAM Chip
- Removable IR-Cut filter for custom imaging applications
- S-Log2 gamma setting
- Uncompressed 4:2:2 UHD 4K output
- High-speed sensor for super-slow motion up to 1000 fps
- Shutter speeds up to 1/32,0000
- Tripod mount with both 1/4-20 & 3/8-16 UNC threads
- Improved cooling for extended shooting
- Easy sync up to five cameras with one tablet

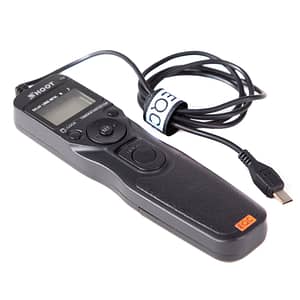

- Time-lapse recording with optional Shoot intervalometer
€60,00

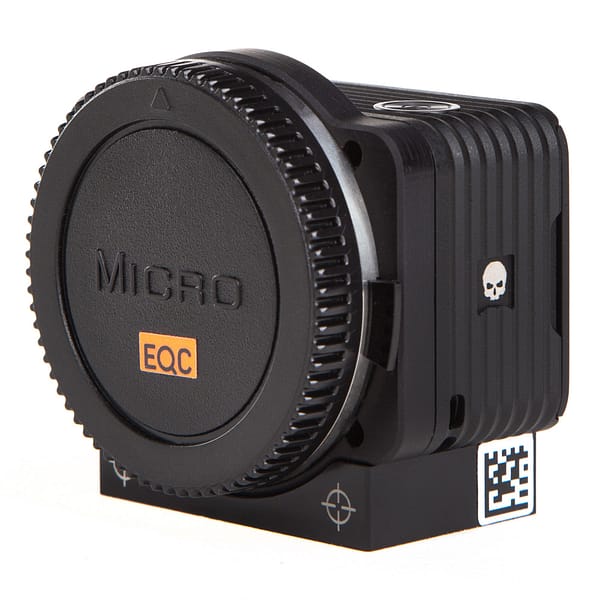

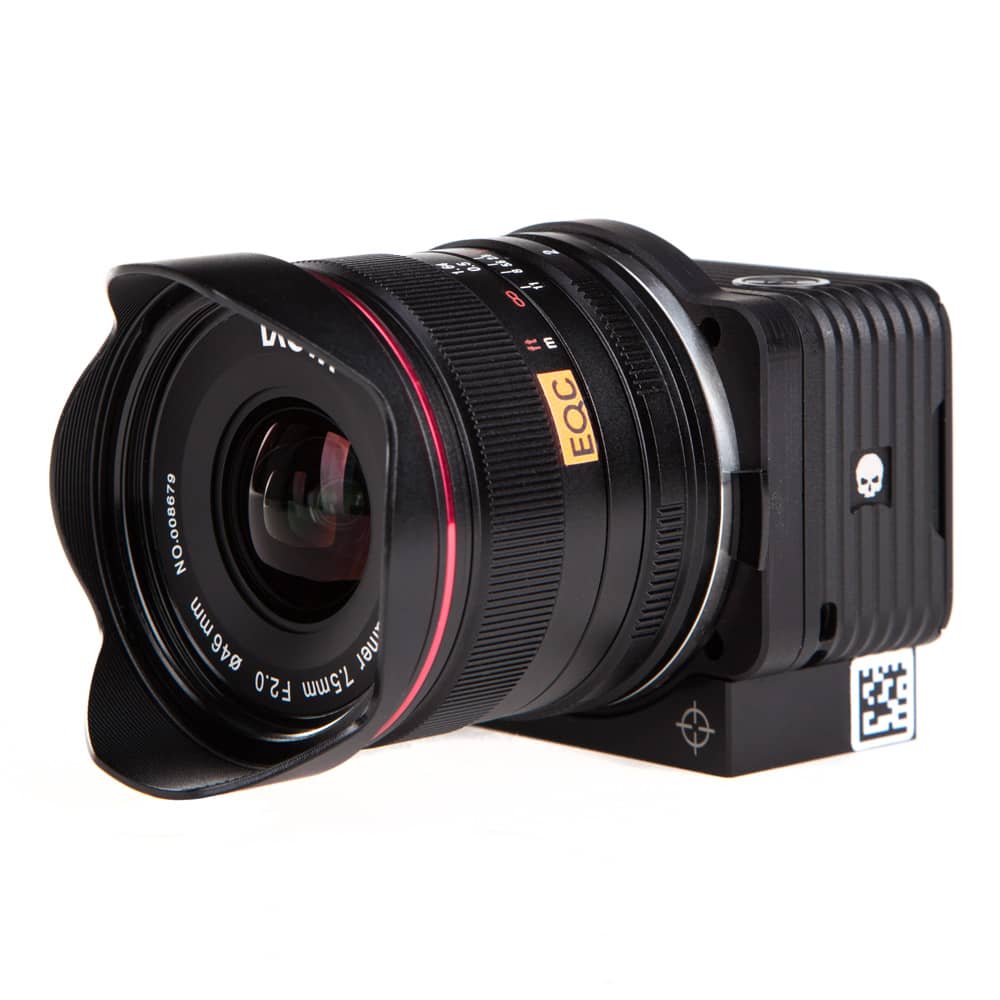

This fully modified RX0 camera comes configured with a passive micro four thirds (MFT) mount* and can be re-configured to C-Mount at any time with the included mounting ring. With this mount combination you can attach almost any lens, or use your camera with imaging equipment such as microscopes and telescopes. Use your SLR lenses with an optional adapter, or use some great vintage cinema lenses for a unique look.If desired, the removable IR-cut filter allows you to capture footage in the wavelength of your choice for custom imaging and scientific applications. The premium aluminum components help keep the camera cool for extended shooting.
Important: The Ribcage modified Sony RX0 is not waterproof.
* The MFT mount is designed for manual lenses only.
In the Case
- Back-Bone Ribcage RX0
- MFT lens cap
- C-mount ring with lens cap
- 2x shim rings
- Tripod mounting plate with 3/8″ thread
- 1/4″ > 3/8″ thread adapter
- IR-cut filter
- Memory card protector bracket
- Screw accessories bag
- USB charger
- Micro USB cable
- Manuals
- Back-Bone GOcase
Don’t forget to book suitable battery packs and memory cards
Find countless mounting options here
Book a tablet with pre-installed control software or find your suitable remote control here
Sensor
- SENSOR TYPE
- 1.0-type (13.2mm x 8.8mm) Exmor RS™ CMOS sensor with DRAM Chip
- NUMBER OF PIXELS (EFFECTIVE)
- 15.3MP
- NUMBER OF PIXELS (TOTAL)
- Approx. 21.0 Megapixels
Lens Mount
- LENS MOUNT TYPE
- Passive MFT Mount for manual lenses only
C-Mount
Camera
- IMAGE PROCESSING ENGINE
- Yes (BIONZ X™)
- FOCUS MODE
- Single-shot AF;Preset Focus;Manual Focus
- FOCUS AREA
- Wide (25 points(contrast-detection AF));Center;Flexible Spot (S/M/L);Expanded Flexible Spot
- LIGHT METERING MODE
- Multi Pattern;Center Weighted;Spot
- EXPOSURE COMPENSATION
- +/- 3.0EV, 1/3EV step
- ISO SENSITIVITY (STILL IMAGE)(RECOMMENDED EXPOSURE INDEX)
- Auto(ISO125-12800, selectable with upper / lower limit),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100),Multi-Frame NR:Auto(ISO125-12800), 200/400/800/1600/3200/6400/12800/25600
- ISO SENSITIVITY (MOVIE)
- Auto:(ISO125Level-ISO12800Level, selectable with upper / lower limit), 125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800
- MINIMUM ILLUMINATION (MOVIE)
- Auto:6lux(Shutter Speed 1/30″)
- WHITE BALANCE MODES
- Auto;Daylight;Shade;Cloudy;Incandescent;Fluor.: Warm White;Fluor.: Cool White;Fluor.: Day White;Fluor.: Daylight;Underwater Auto;C.Temp./Filter;Custom
- WB MICRO ADJUSTMENT
- YesG7 to M7,57-stepA7 to B7,29-step
- ELECTRONIC SHUTTER
- iAuto(1/4″ – 1/32000) / Program Auto(1/4″ – 1/32000) / Manual(1/4″ – 1/32000)
- APERTURE
- F4.0
- IMAGE CONTROL
- Contrast;Saturation;Sharpness;Creative Style;Color Space(sRGB / Adobe RGB);Quality(RAW / RAW&JPEG / Extra fine / Fine / Standard)
- NOISE REDUCTION
- high ISO NR:Normal/Low/Off;Multi Frame NR: Auto, ISO200-25600
- DYNAMIC RANGE FUNCTIONS
- Off, Dynamic Range Optimizer (Auto/Level 1-5), Auto High Dynamic Range (Auto Exposure Difference, Exposure difference Level (1.0-6.0EV, 1.0EV step))
- SHOOTING MODE
- Program Auto;Manual Exposure;MR(Memory Recall) [body 3 sets / memory card 4 sets];Movie Mode(Intelligent Auto);Movie Mode(Program Auto);Movie Mode(Manual Exposure);HFR Mode(Program Auto, Manual Exposure);Intelligent Auto;Superior Auto
- CONTINUOUS SHOOTING SPEED (MAXIMUM) (WITH MAX. RECORDING PIXELS)
- Speed Priority Continuous Shooting: approx. 16 fps, Continuous Shooting: approx. 5.5 fps
- SELF-TIMER
- 10sec. / 5sec. / 2sec. / 3 or 5 consecutive shots with 10sec. 5sec. or 2sec. delay selectable / Bracketing shots with 10sec. 5sec. or 2sec. delay selectable
- DRIVE MODES
- Single;Continuous shooting;Speed priority continuous shooting;Self-timer;Self-timer(cont.);Cont.-bracketing, Single-bracketing, White balance bracketing, DRO bracketing
- PICTURE EFFECT
- Still Image:Pop Color;Posterization;Retro Photo;Soft High-key;Partial Color;High Contrast Mono.;Soft Focus;HDR Painting;Richtone Monochrome;Miniature;Watercolor;Illustration;Movie:Pop Color;Posterization;Retro Photo;Soft High-key;Partial Color;High Contrast Mono.
- CREATIVE STYLE
- Standard, Vivid, Neutral, Clear, Deep, Light, Portrait, Landscape, Sunset, Night Scene, Autumn Leaves, Black & White, Sepia, Style Box
- PICTURE PROFILE
- Off/PP1-PP7(Black Level, Gamma(Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset)
- FOCUS TYPE
- Contrast-detection AF
- NUMBER OF RECOGNISED SCENES
- Still Image:Superior Auto: 10 / iAuto: 10;10
Recording
- COMPATIBLE RECORDING MEDIA
- Memory Stick Micro, Memory Stick Micro (Mark2), microSD Memory Card, microSDHC Memory Card, microSDXC Memory Card
- RECORDING FORMAT
- Still Image:JPEG(DCF Ver.2.0,Exif Ver.2.31,MPF Baseline compliant), RAW (Sony ARW 2.3 format);XAVC S;AVCHD format Ver.2.0 compatible;MP4
- RECORDING FORMAT (MOVIE AUDIO)
- XAVC S:LPCM 2ch;AVCHD:Dolby Digital(AC-3) 2ch(Dolby Digital Stereo Creator);MP4:MPEG-4 AAC-LC 2ch
- COLOUR SPACE (STILL)
- sRGB, Adobe RGB
- DCF/DPOF
- DCF/DPOF/EXIF/MPF
- STILL IMAGE NUMBER OF RECORDED PIXELS (IMAGE SIZE)
- Still Image:3:2mode:15M(4,800×3,200) / 7.7M(3,408×2,272) / 3.8M(2,400×1,600)、4:3mode:14M(4,272×3,200) / 6.9M(3,024×2,272) / 3.4M(2,128×1,600) / VGA,16:9mode:13M(4,800×2,704) / 6.5M(3,408×1,920) / 3.2M(2,400×1,352),1:1mode:10M(3,200×3,200) / 5.2M(2,272×2,272) / 2.6M(1,600×1,600)
- HFR
- RecordingNTSC/PAL Selector: [PAL] mode XAVC S HD:50p 50M(1,920×1,080/250fps), 50p 50M(1,920×1,080/500fps), 50p 50M(1,920×1,080/1000fps) / 25p 50M(1,920×1,080/250fps), 25p 50M(1,920×1,080/500fps), 25p 50M(1,920×1,080/1000fps), NTSC/PAL Selector: [NTSC] mode XAVC S HD:60p 50M(1,920×1,080/240fps)、60p 50M(1,920×1,080/480fps)、60p 50M(1,920×1,080/960fps) / 30p 50M(1,920×1,080/240fps)、30p 50M(1,920×1,080/480fps)、30p 50M(1,920×1,080/960fps) / 24p 50M(1,920×1,080/240fps)、24p 50M(1,920×1,080/480fps)、24p 50M(1,920×1,080/960fps)Sensor Readout Number of effective pixelsQuality Priority:240fps/250fps(1,676×942),480fps/500fps(1,676×566),960fps/1000fps(1,136×384)/Shoot Time Priority:240fps/250fps(1,676×566),480fps/500fps(1,136×384),960fps/1000fps(800×270)
- STILL IMAGE NUMBER OF RECORDED PIXELS (IMAGE SIZE) DURING MOVIE
- –
Interface
- INPUT AND OUTPUT TERMINALS
- Multi/Micro USB Terminal, Hi-Speed USB (USB2.0), Micro HDMI, Microphone jack(3.5mm Stereo mini jack)
- NFC
- –
- WI-FI
- Yes(IEEE802.11b/g/n(2.4GHz band))
- INTERFACES
- –
- BLUETOOTH
- Yes (Bluetooth Standard Ver. 4.1 (2.4GHz band))
Power
- POWER SOURCE
- DC3.7V(supplied battery) / DC5.0V(supplied AC Adaptor)
- BATTERY SYSTEM
- Rechargeable battery pack NP-BJ1
- POWER CONSUMPTION (CAMERA MODE)
- Approx. 1.3W
- USB CHARGE/USB POWER SUPPLY
- Yes (Shooting, Playback,)
- BATTERY LIFE(STILL IMAGES)
- Approx. 240shots / Approx. 120min
- BATTERY LIFE(MOVIES ACTUAL SHOOTING)
- Approx. 35min.
- BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)
- Approx. 60min.
Others
- SHOOTING FUNCTIONS
- Eye AF;Face Detection;Face Registration;Grid Line;WB Bracket;DRO Bracketing;MF Assist;Peaking;Zebra;Marker Display;Audio Level Display;TC/UB;Photographer Name & Copyright;ISO Auto Minimum Shutter Speed;PC Remote Controll;Gamma Disp. Assist;Flip
- PLAYBACK FUNCTIONS
- BRAVIA Sync(Control for HDMI);9/25-frame index view;Slide Show;Forward/Rewind (Movie);Delete;Protect
- TRILUMINOS COLOR
- Yes
- 4K IMAGE OUTPUT
- Yes
- OPERATING TEMPRATURE
- 0 degrees C. – +40 degrees C. / 32 degrees F. – 104 degrees F.
- WATERPROOF
- No
- SHOCKPROOF
- No
- CRUSHPROOF
- No
Size & Weight
- DIMENSIONS (W X H X D)
- 59 x 58 x 33 mm
- WEIGHT (CIPA COMPLIANT)
- Approx. 815g (Battery and microSD Memory Card are included) / Approx. 800g (Body Only)
