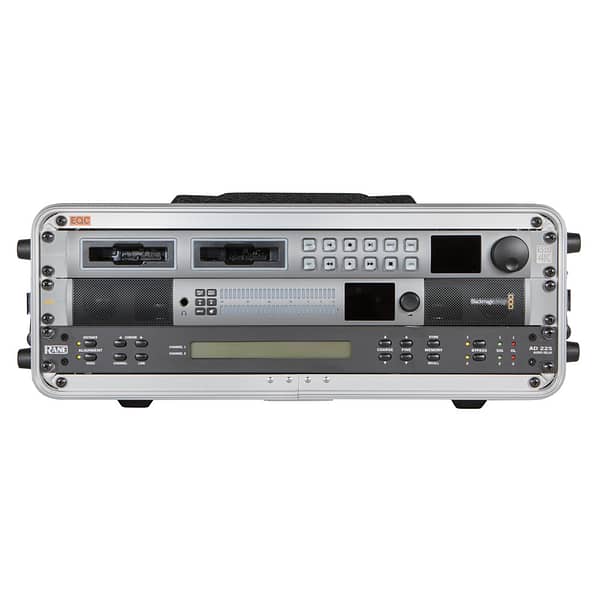

Blackmagic Design Mobile Live Recording Unit 4K

  • File-based video recorder/monitor unit
  • 1 x 6G-SDI & 3 x 3G-SDI inputs/outputs
  • HDMI 4K in & out, analog component
  • Records 10-bit 4:2:2 and ProRes/DNxHD
  • 24-bit audio delay with fps time display
  • LCD display & audio level meters
  • Built-in speakers for monitoring

€200,00

Related products

Blackmagic Design Mobile Live Recording Unit 4K is the ultimate unit for recording an monitoring your live-stream or live production, featuring an advanced design that includes 6G-SDI so you get SD, HD and Ultra HD formats.

The HyperDeck Studio Pro 2 includes a wide range of video and audio connections in both analog and digital so you get the widest compatibility with older and newer equipment. Get SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck. Also includes 6G-SDI and Quad Link SDI, HDMI 4K, analog component, balanced analog audio and AES/EBU audio compatibility.

Included Features

The included Rane AD22S provides a 24-bit, balanced audio delay function with a resolution from 0.5 frame up to 23.5 frames for a precise synchronization of your video hardware to compensate early audio on your set.

Furthermore the unit is equipped with the Blackmagic Design Audio Monitor 12G, which features a 12G-SDI input, a balanced XLR analog audio input, a balanced AES/EBU digital input audio, HiFi audio inputs, and an HDMI 2.0 output.

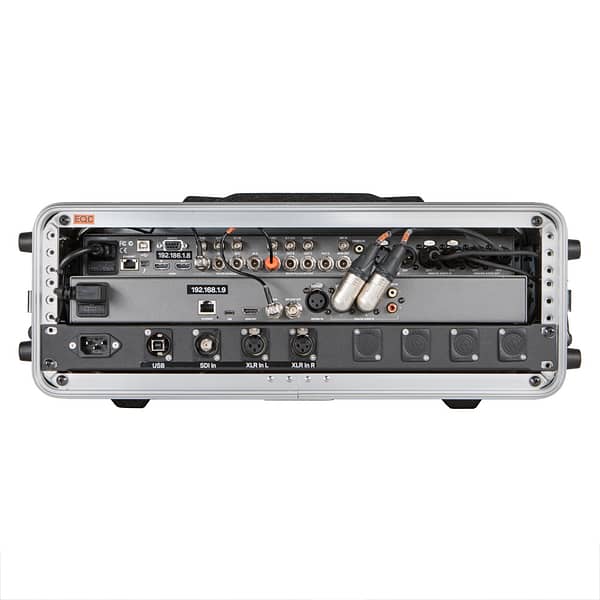

In the Case
  • HyperDeck Studio Pro 2
  • Audio Monitor 12G
  • Rane AD22S audio delay
  • SDI cable
  • 2x XLR3 cable
  • USB A > USB B cable 2m
  • USB A > USB C OTG adapter
  • USB C > USB C cable 2m
  • AC power cable
  • Rack case

Have a look at our suitable SSD media drives.
Book your MacBook Pro with installed control software.

Categories: ,

HyperDeck Studio Pro 2

Connections
SDI Video Inputs

1

SDI Video Outputs

4, Single Link or Quad Link.

SDI Rates

270Mb, 1.5G, 3G, 6G.

HDMI Video Inputs

1 x HDMI type A connector including Ultra HD 4K support.

HDMI Video Outputs

1 x HDMI type A connector including Ultra HD 4K support.

Analog Video Inputs

Y, B-Y, R-Y

Analog Video Outputs

Y, B-Y, R-Y

Analog Audio Inputs

2 x XLR connectors for professional balanced analog audio. 2 x RCA connectors for unbalanced analog audio from consumer equipment.

Analog Audio Outputs

2 x XLR connectors for professional balanced analog audio.

Timecode Connection

1 x XLR in and 1 x XLR out.

SDI Audio Inputs

16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.

SDI Audio Outputs

16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.

HDMI Audio Inputs

8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.

HDMI Audio Outputs

8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.

Reference Input

Tri-Sync or Black Burst.

Recorder Configuration

Front panel configurable or USB 2.0 high speed interface.

Computer Interface

1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.

HyperDeck Studio Pro

Standards
SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M Level B

SDI Metadata Support

Time Code: HD RP188. Closed Captioning: CEA-708.

Audio Sampling

Television standard sample rate of 48kHz and 24-bit

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media
Media

2 x SSD for SD, HD and Ultra HD recording.

Media Type

SATA-II or SATA-III solid state disc.

Media Format

Can format discs to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.

Supported Codecs

Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime and Avid DNxHD MXF up to 1080i60.

Control
Built in Control Panel

12 buttons for transport and menu control, 2.2 inch color display.

External Control

RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.

Software
Software Included

Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).

Internal Software Upgrade

Firmware built into software driver. Loaded at system start, or via updater software.

Operating Systems
Mac iconMac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows IconWindows 8.1 and 10.
Display

Built in LCD for video, audio and timecode monitoring and menu settings.

Environmental Specifications
Operating Temperature

5° to 40° C (41°to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity:0% to 90% non-condensing

Blackmagic Audio Monitor 12G

Connections
SDI Video Inputs

1

SDI Video Outputs

1 loop out.

SDI Rates

270Mb, 1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Outputs

1

Multi Rate Support

SDI and HDMI are switchable between standard definition, high definition and ultra high definition.

SDI Video Loop

1 x reclocked 10‑bit SD/HD/3G‑SDI, 6G‑SDI and 12G‑SDI.

Analog Audio Inputs

2 x XLR. 2 x RCA HiFi.

Analog Audio Outputs

1 x 6.5mm headphone socket.

Digital Audio Inputs

1 x XLR.

Built in Speaker

Stereo with 2‑way crossover and independent stereo subwoofers.

AES/EBU Audio Inputs

2 channels balanced 110Ω AES/EBU via XLR.

SDI Audio Inputs

16 channels embedded in SD, HD and UltraHD 4K.

SDI Audio Outputs

16 channels embedded audio loop out.

HDMI Audio Outputs

8 Channels embedded in SD, HD and 4K.

Ethernet

1Gb/sec for configuration and firmware updates.

Computer Interface

USB‑C for configuration and firmware updates.

Metering

2 x 27 RGB segment LED VU, PPM or Loudness meters.

Modes

Push button interface allows for input selection, channel selection, independent left and right audio, mute and volume control with scroll wheel.

Blackmagic Audio Monitor 12G

Standards
SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K 23.98PsF, 2K 24PsF, 2K 25PsF

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Video Standards

4KDCIp23.98, 4KDCIp24, 4KDCIp25, 4KDCIp29.97, 4KDCIp30, 4KDCIp50, 4KDCIp59.94, 4KDCIp60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10

SDI Auto Switching

Automatically selects between SD, HD, 3G‑SDI Level A and B, 6G‑SDI and 12G‑SDI.

Audio Sampling

96 KHz and 24 bit.

Video Sampling

4:2:2 and 4:4:4

Audio Meter Ballistics
54 RGB segment LEDs allowing selection of metering with VU, PPM EBU, PPM BBC or Loudness. Includes replaceable level scale.
Control
Built-in Control Panel

2.2 inch display for viewing video input, video standard and selected audio input.

Software
Internal Software Upgrade

Via USB connection and Ethernet

Operating Systems
Mac iconMac 10.13 High Sierra,
Mac 10.14 Mojave or later.
Windows IconWindows 8.1 and 10.
Display
Display Element

2.2 inch diagonal color LCD.

Display Resolution

320 x 240.

Input Display

SDI video, format, audio type and audio channels.

Environmental Specifications
Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Rane Commercial AD 22S Specs

Delay 2.00 mSec to 999.99 mSec
Sample Rate 50kHz
Inputs 2 x XLR
Outputs 2 x XLR
Other Connectors 3 x Euroblock Control Inputs
1 x USB
Input Impedance 20kΩ,
Maximum Input Level 24dBu
Output Impedance 50Ω
Maximum Output Level 24dBu
Phantom Power Not applicable
Frequency Response 20Hz to 22kHz
Dynamic Range 108dB (+24dBu, 20Hz to 20kHz, A-weighted)
Crosstalk -90dB (+4dBu, 20Hz to 20kHz)
THD + N 0.006% (+4dBu, 20Hz to 20kHz, 30kHz bandwidth)
Power Requirements 100~240 VAC, 50/60Hz
Dimensions (WxDxH) 483 x 133 x 44mm (19 x 5.25 x 1.75″)
Weight 1.8kg (4 lbs)
Specialties Distance Increment: 0.01 and 1.00 mSec (each channel independent)
Video Increment: 0.5 frames (each channel independent)
