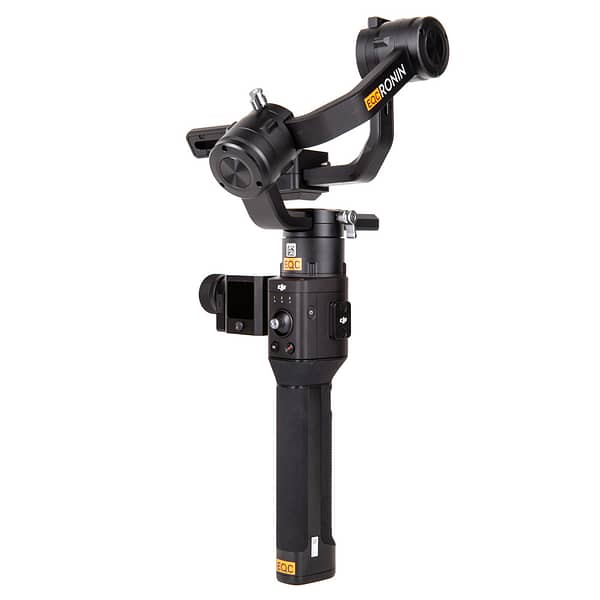

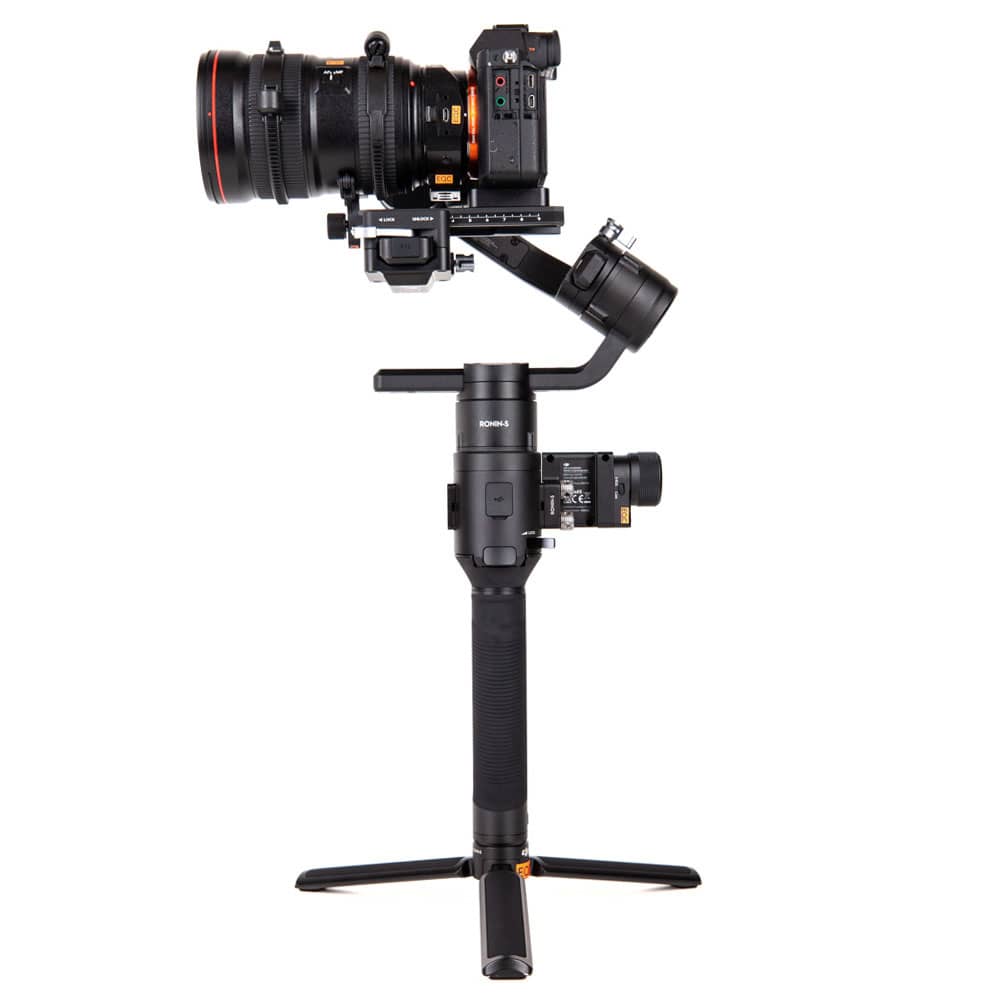

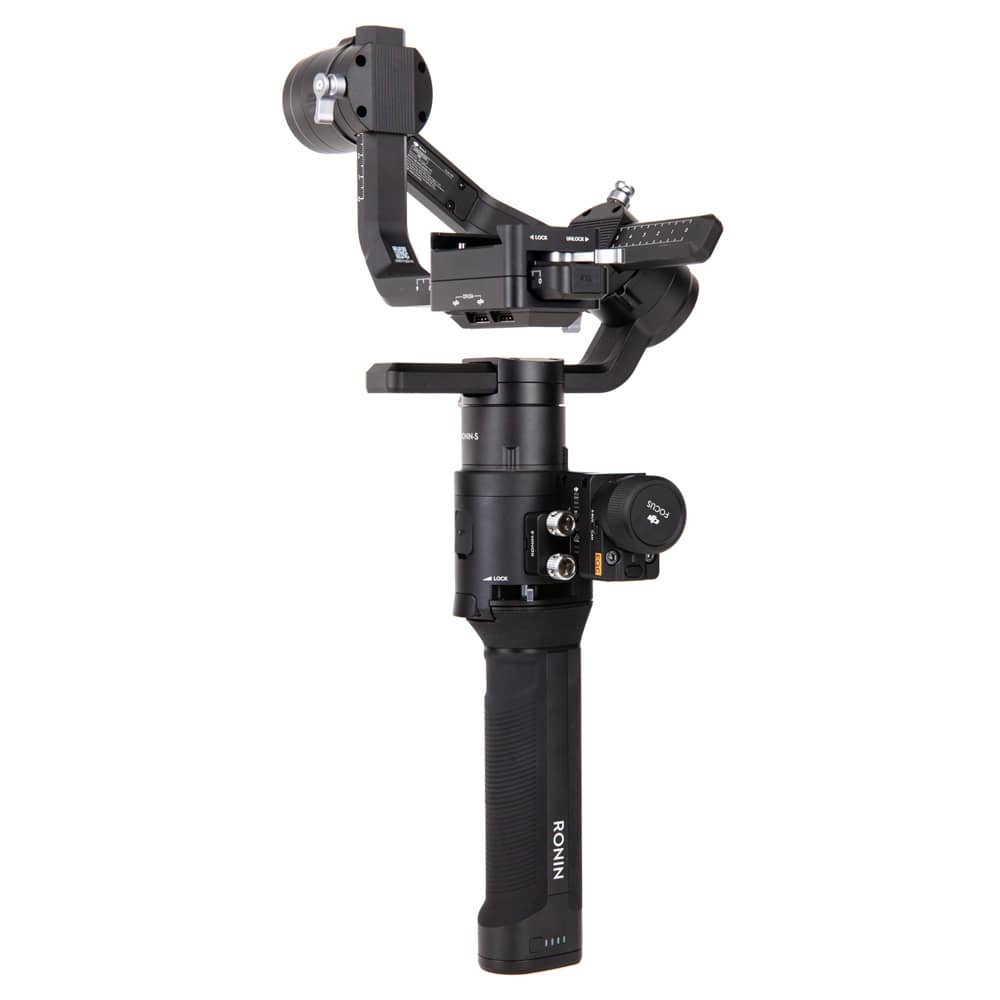

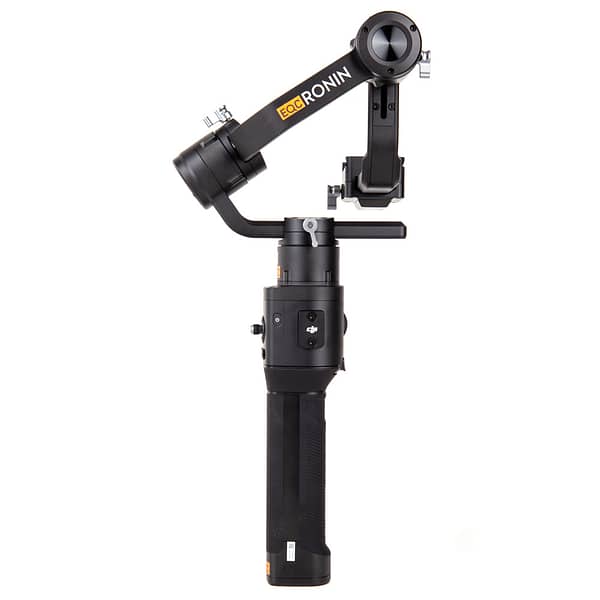

DJI Ronin-S Gimbal

  • Three-axis motorized gimbal stabilizer
  • 3.6 kg payload capacity
  • Extended ready-to-shoot package
  • Trigger and mode buttons
  • Angled roll motor
  • One-handed operation
  • Works up to 12 hours
  • Camera control via included cables
  • Includes command unit & focus wheel
  • Additional functions via Android/iOS app

€40,00

Related products

Rent the DJI Ronin-S Gimbal in an extended version for capturing spontaneous moments with clarity, smoothness, and a refreshing perspective. We added some features like the command unit, the external GPS module and a second battery grip for your convenience at the set.

The SmoothTrack function applies to all three axes. Hold down the front trigger to transition from Upright to Underslung Mode in one seamless movement with no gimbal framework obstruction.

New Sport Mode allows you to capture fast-moving scenes instantly. This means it can be used for DSLRs such as the Sony A7SII, the Canon EOS 5D MkII or the 5D MkIV and the Panasonic Lumix GH5.

Stay Focused

Focus better on your subject with the easy-to-control Focus Wheel. When a compatible camera system connects to the Ronin-S, you can pull focus via the included cable.

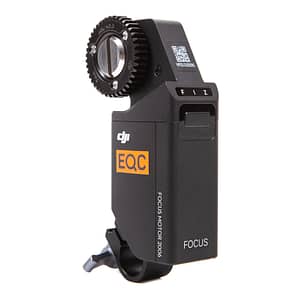

An optional external motor can also be added, bringing broader compatibility to all lens types while enhancing precision control.

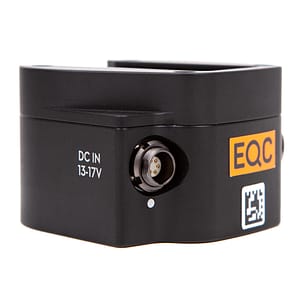

Mounting Option

With the optional available Universal Mount, you can mount the system in a compact way (without battery grip) nearly everywhere and power it with an external D-Tap power source trough the included cable.

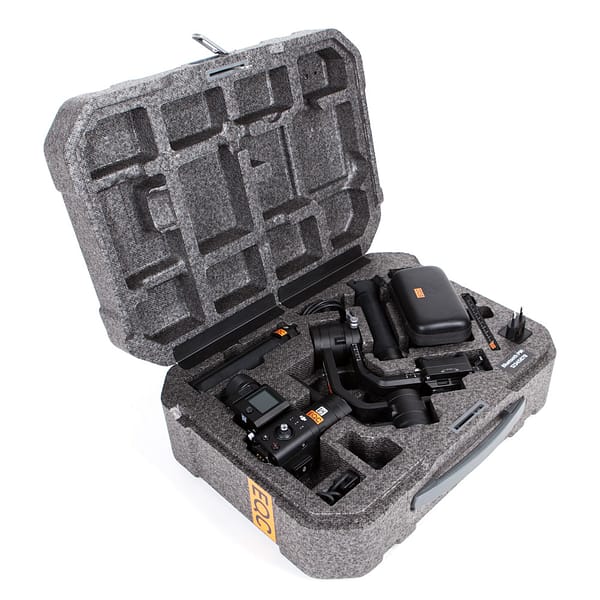

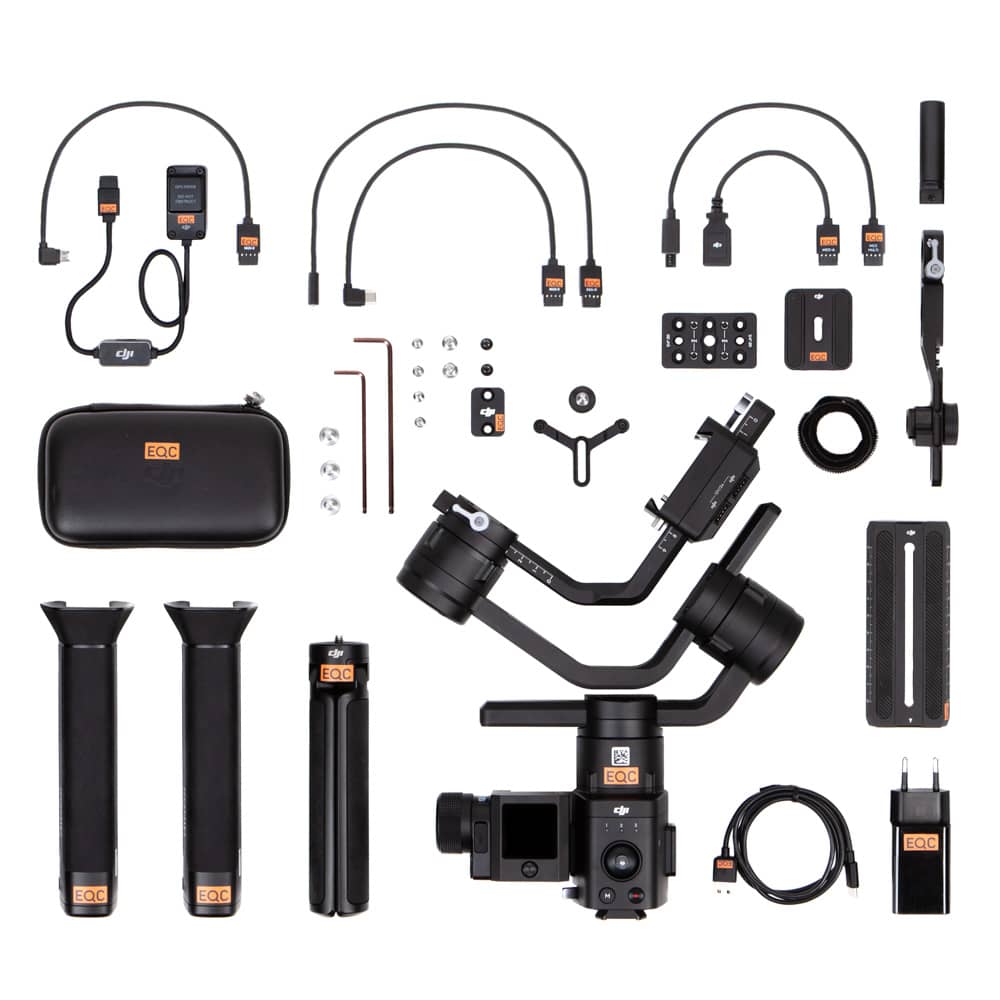

In the Case
  • DJI Ronin-S Gimbal
  • Command unit
  • Focus wheel
  • 2x Battery grip
  • External GPS module
  • Camera mounting plate
  • Tripod
  • RS-009 top hotshot bracket (with rod & screw)

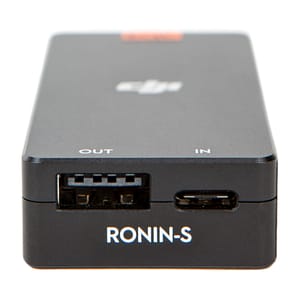

  • USB power adapter
  • Lens support
  • RS-004 camera raiser
  • Contact cover
  • RS-008 cheese plate
  • USB > USB-C cable
  • RSSI-IR control cable
  • MCC multi camera control cable
  • MCC-A camera control cable
  • MCC-B camera control cable
  • MCC-C camera control cable
  • 3x Allen wrench
  • 2x velcro strap
  • Wide variety of screws
  • Pouch
  • Original case

Have a look at our other gimbal systems

Categories: ,
Peripheral
Camera Tray Dimensions Maximum depth from the center of gravity on the camera
base plate: 98 mm
Maximum height measured from top of the camera base plate: 150 mm
Maximum width: 205 mm
Accessory Port Mechanical: 1/4”-20, 3/8”-16 Mounting Hole, M4 Mounting Hole
Electrical: 12V/2A Power Accessory Port, Camera Control Port, 8-pin Port
Input Power Model: RB1-2400mAh-14.4V
Type: 18650 LiPo
Capacity: 2400 mAh
Energy: 34.56 Wh
Connections Bluetooth 4.0
USB-C
DJI Assistant 2 Requirements Windows 7 or above
Mac OS X 10.11 or above
Ronin App Requirements iOS 9.0 or above
Android 4.4 or above
Working Performance
Load Weight (Reference Value) 3.6 kg (Handheld)
Angular Vibration Range ±0.02°
Maximum Controlled Rotation Speed Pan axis: 360°/s
Tilt axis: 360°/s
Roll axis: 360°/s
Mechanical Endpoint Range Pan axis: 360° continuous rotation
Tilt axis: +185° to -95°
Roll axis: 360° continuous rotation
Controlled Rotation Range Pan axis: 360° continuous rotation
Tilt axis: +135° to -90° (Upright Mode, +90° to -135° (Underslung and Flashlight Mode)
Roll axis: ±30°, 360° continuous rotation (Roll 360 mode)
Mechanical & Electrical Characteristics
Working Current Static current: ≈0.16 A
Bluetooth Operating Frequency 2.4 to 2.48 GHz
Bluetooth Transmitter Power 0 dBm
Operating Temperature -4° to 113° F (-20℃ to 45℃)
Weight Approx. 3.3 lb(gimbal only), Approx. 4.1 lb (gimbal and grip included)
Dimensions Approx. 202×185×486 mm
