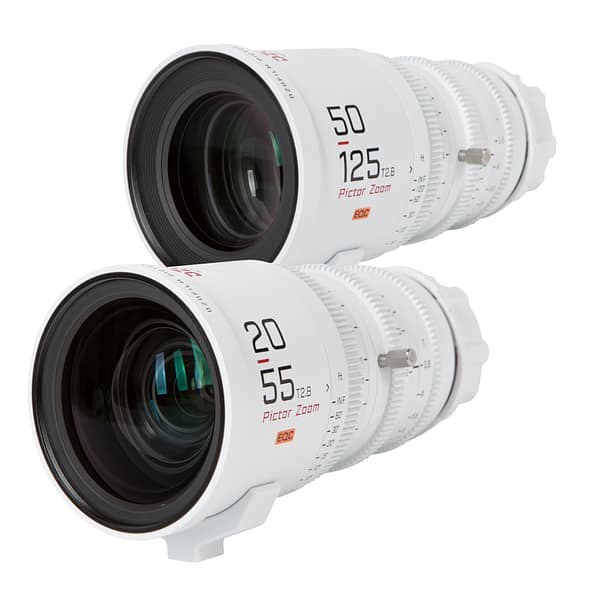

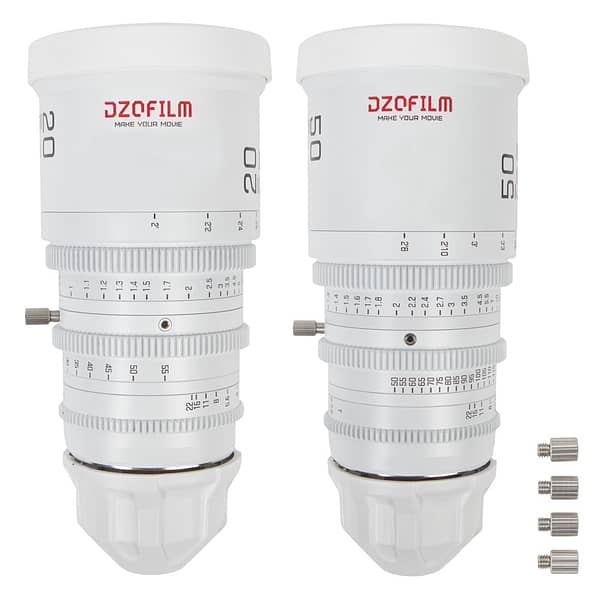

DZOFILM Pictor Zoom Bundle 20-55 & 50-125 mm T2.8 White – PL or EF Mount


  • Covers Super-35 and APS-C Sensors
  • Parfocal Design with minimal Focus Breathing
  • Front diameter of 95mm, perfect for Clamp-on Matteboxes
  • 16-Blade Iris for round Bokeh
  • Lightweight Zooms at only 1.6kg

240,00

The Pictor 20-55mm and 50-125mm T2.8 Super35 zoom lens bundle from DZOFilm consists of a two-lens set with a white finish. The lenses cover an extended zoom range with a relatively fast maximum aperture. Both lenses cover the Super35 range and have similar lengths, weights, lens positions and front outer diameters, allowing for quick lens changes.Each lens comes standard with a PL mount and also features a Canon EF mount for compatibility with a wide range of digital cinema cameras. The lenses maintain sharpness throughout the focal length range and feature matching 16-blade diaphragms for round out-of-focus highlights.

Both zooms are parfocal in design and performance with a maximum aperture of T2.8, and the lens design features floating elements that virtually eliminate focus breathing. Each lens covers the Super35 image circle, and can be ordered with a PL- or EF lens mount. The 16-blade aperture creates round out-of-focus highlights that look more natural and contribute to the lens’ natural-looking bokeh. The lens features cine-style gear rings on the focus, iris and zoom lens rings, making it compatible with cine-style accessories such as follow-focus units, lens motors and lens control systems. The 95mm outer front diameter allows the use of a variety of compatible third-party matte boxes, and the lens has an 86mm filter thread.

In the Case
  • Pictor 20-55mm T2.8 – PL or EF Mount
  • Pictor 50-125mm T2.8 – PL or EF Mount
  • 2x Zoom Stick
  • 2x Lens cap
  • 2x Mount cap

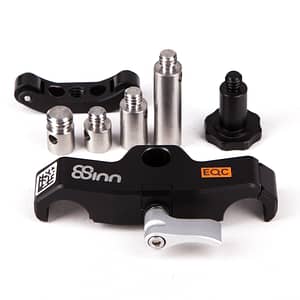

  • 2x Support Bracket
  • 4x Support Screw Extension 3/8″

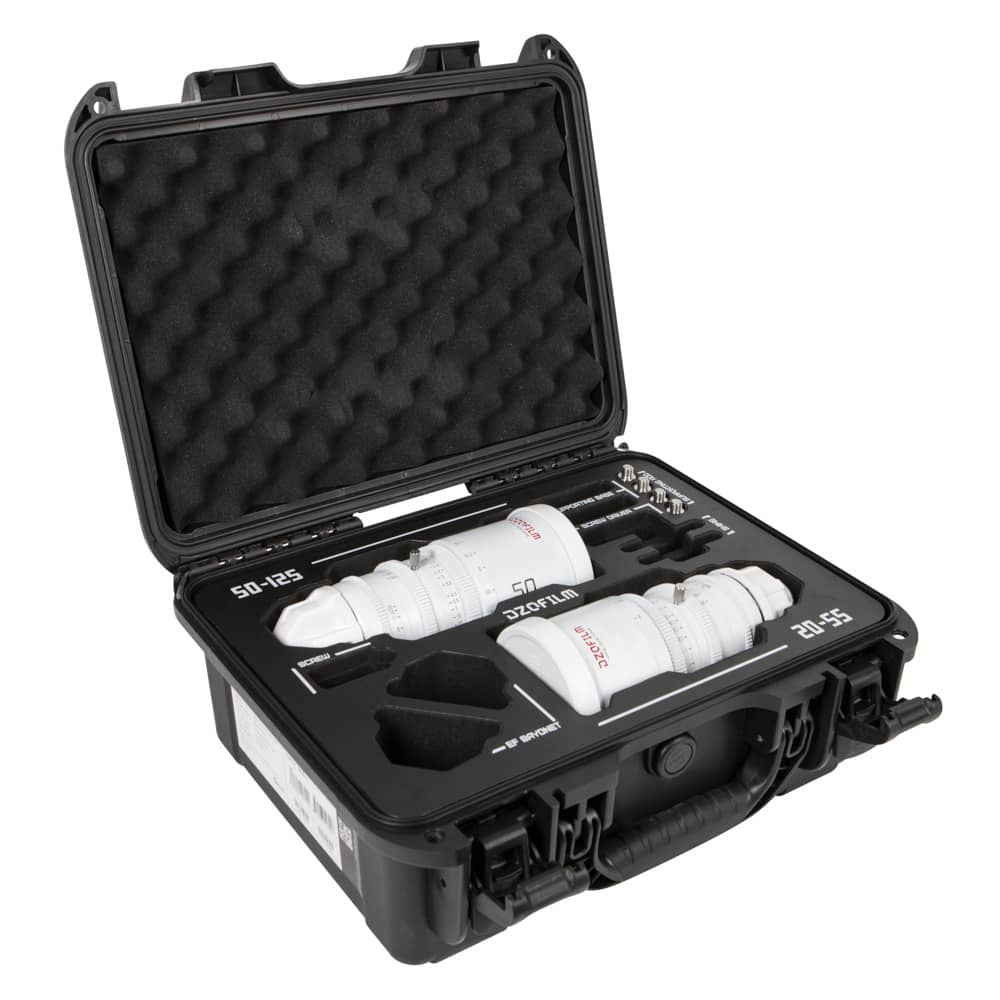

  • Original Hard Case

Please specify your desired mount at the time of ordering.

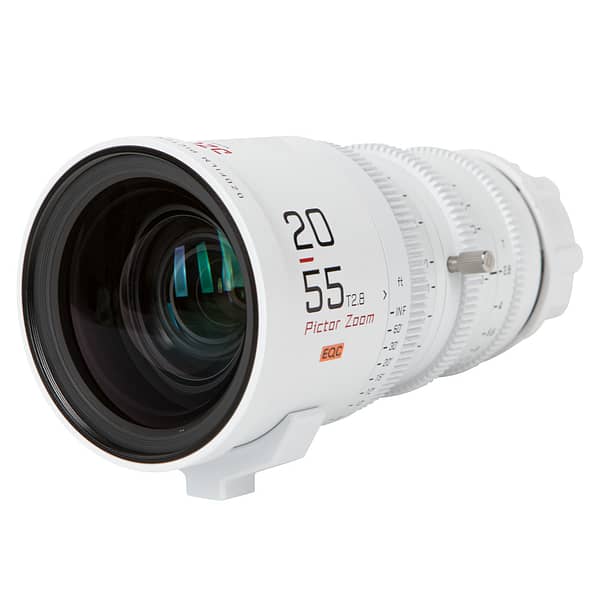

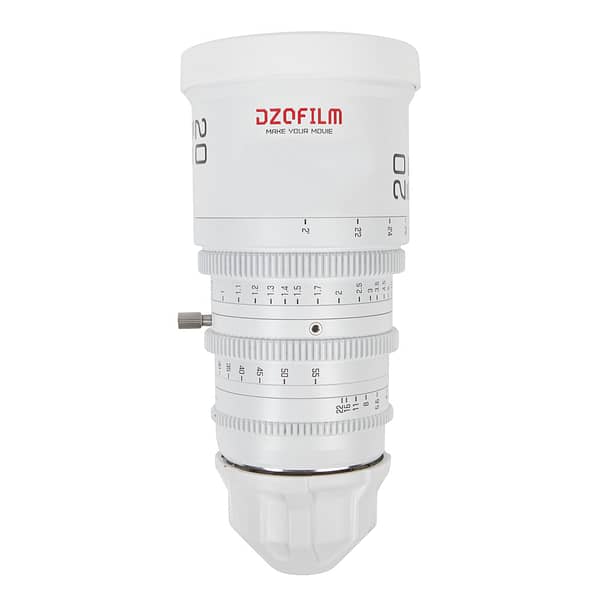

20 to 55mm Zoom

Mount Interchangeable ARRI PL
Format Super35
Image Circle 31.1mm
T-Stop 2.8 to 22
Iris Blades 16
Gear Mod Focus: 0.8M
Iris: 0.8 MOD
Zoom: 0.8 MOD
Front Diameter 95mm
Filter Thread 86mm
Focus Scales Metric
Zoom Ratio 2.75x
Lens Support Lens Support Foot
Length 6.46″ / 164 mm
Weight 3.35 lb / 1.52 kg

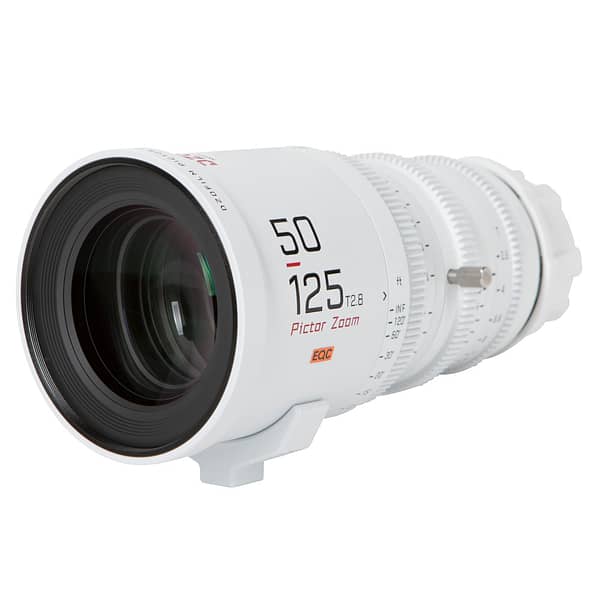

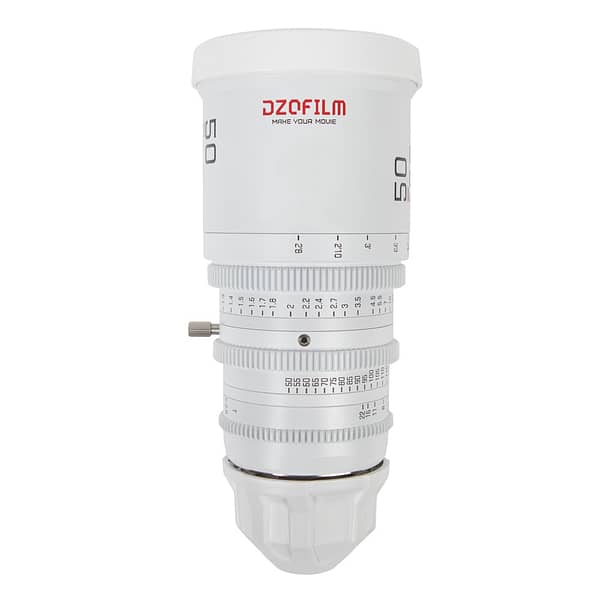

50 to 125mm Zoom

Mount Interchangeable ARRI PL
Format Super 35
Image Circle 31.1mm
T-Stop 2.8 to 22
Iris Blades 16
Gear Mod Focus: 0.8M
Iris: 0.8 MOD
Zoom: 0.8 MOD
Front Diameter 95mm
Filter Thread 86mm
Focus Scales Metric
Zoom Ratio 2.5x
Lens Support Lens Support Foot
Length 6.89″ / 175 mm
Weight 3.75 lb / 1.7 kg
