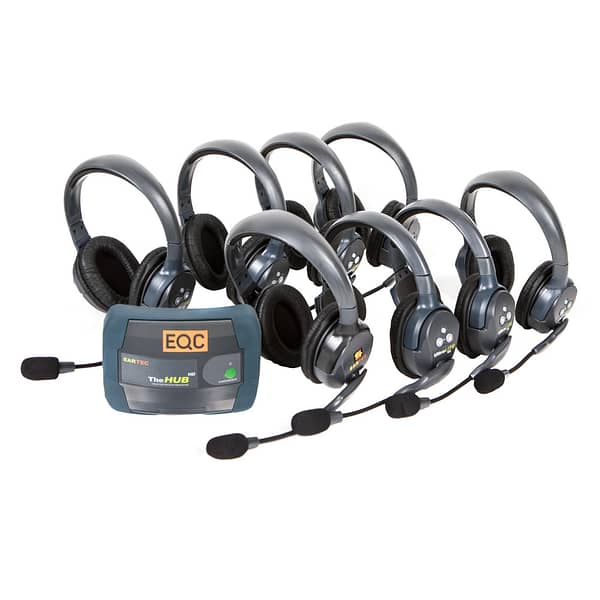

EARTEC UltraLITE Intercom – Studio + Live Set
- Intercom for up to 8 participants
- Ideal for studio and live shoots
- Including Eartec Hub Mini basestation
- Eliminates wires and belt-worn Radios
- Provides hands-free communication
- Very easy usability
€200,00

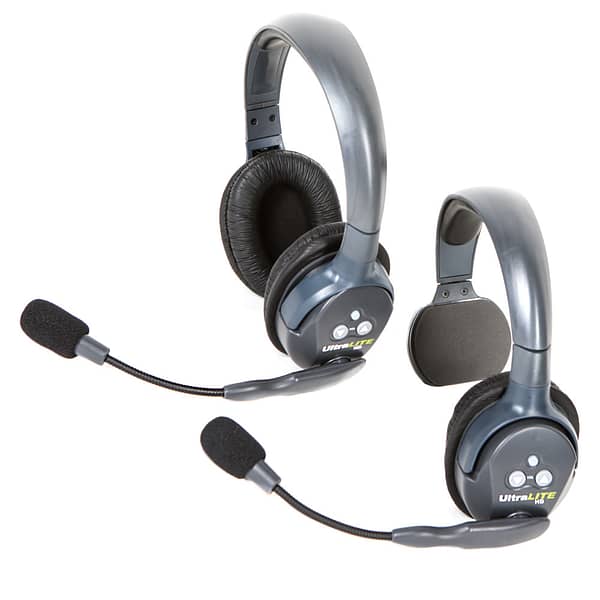

The EARTEC UltraLITE Intercom – Studio + Live Set is a complete wireless transmitting/receiving system in the DECT 1.9 GHz (1900 MHz) range. Easily and hands-free up to 8 persons can talk.The capacity of the UltraLITE wireless headsets can be expanded with the Hub Mini Transceiver Base, so that a range of 400m in open space is possible. This versatile mini-base can either be strategically placed “on location” or worn on a belt.
Two operating channels are built into the HUB circuitry, allowing separate groups of four to talk privately, and pressing the conference button combines the two calls, creating an open line for eight people.
The Eartec HUB is a nice solution for large teams that need to stay in constant voice contact while working with their hands.

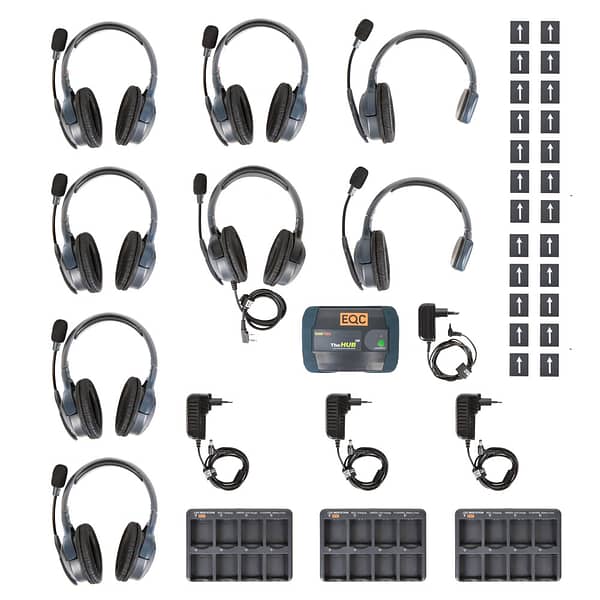

In the Case
- Hub mini basestation with rubber + AC adapter
- 1x dual sided muff headset with cable for basestation
- 5x dual sided muff headset
- 2x single sided muff headset
- 24x battery in EQC bag
- 3x 8-way battery charger + AC adapter
- Manual
- Hard case
Have a look at our other intercom solutions
Eartec HUB Specs
| Standard | DECT 6.0 |
| Frequency | 1920 to 1930 MHz |
| Connector | 2.5 / 3.5 mm plug-in |
| Channel Bandwidth | 1.728 GHz |
| Modulation Type | GFSK |
| Transmission Speed | 1.152 Mbps (baud rate) |
| Duplex Mode | Time Division Duplex (TDD) |
| Encoding | Speech Encoding ADPCM / 32 bit/s |
| RF | RF Accessing Time Division Multiple Access (TDMA) |
| Range | 0.25 mile / 400 m in open space |
| Power Supply | Headset Power Supply Rechargeable lithium 3.7 V / 800 mAh, 3.0 Wh Charger Power Supply AC / Adapter: Input 100 to 240 VAC |
| Charge Time | 3 hours |
| Operation Time | 4 hours |
| Storage Temperature | 14 to 140°F / -10 to 60°C |
| Dimensions | 5.50 x 1.50 x 3.75″ / 13.97 x 3.81 x 9.53 cm |
| Weight | 4.0 oz / 113.4 g |
Wireless Connectivity
| RF Bandwidth | 1728 GHz |
| Wireless Modulation | GFSK |
| DECT Standard | 6.0 |
| Duplex Mode | Time-Division Duplex (TDD) |
| RF Channel Access Method | Time-Division Multiple Access (TDMA) |
| Speech Encoding | ADPCM / 32 b/s |
| Transmission Speed | 1.15 Mb/s |
| Wireless Range | 1312′ / 400 m |
| Frequency | 1920 to 1930 MHz |
Battery
| Battery Chemistry | Lithium-Ion |
| Capacity (mAh) | 800 mAh |
| Runtime | 6 Hours |
| Recharge Time | 3 Hours |
| DC Input Power | 5 VDC at 1000 mA |
Environmental
| Storage Temperature | 14 to 140°F / -10 to 60°C |
Physical
| Weight | 4 oz / 113.4 g |
Eartec 8-Bay Multi-Port Charging Base Specs
Physical
| For Use with | 8 x UltraLITE, UltraPAK, and HUB batteries |
| Charge Time | Approximately three hours |
| Input Power | 100 to 240 VAC |
| Dimensions | Not specified by manufacturer |
| Weight | Not specified by manufacturer |
