Viewfinders, Monitoring & Wireless, Wireless Video
Hollyland Mars 400S HDMI + SDI Wireless System
- Reliable wireless video system for monitoring
- Up to 120m of range
- Cast to up to 4 iOS or android devices
- Use up to 2 receivers
- HDMI and HD-SDI (BNC) inputs
- Can be powered with L-type (NP-F), via D-Tap or AC power
- Not a zero-delay system, but close
€45,00
The Hollyland Mars 400S is an inexpensive but solid wireless video transmitting system. It supports both HD-SDI via BNC or HDMI video inputs and can be powered internally with NP-F batteries or externally with D-Tap. The package also includes an AC adapter. As a special feature, the system can also transmit to up to 4 iOS or Android decides, making it easy for crew members to monitor the action on set.We do not recommend this system for focus pulling, or where delay could be an issue. For normal monitoring, like when used by a director or client monitor, the system performs well.

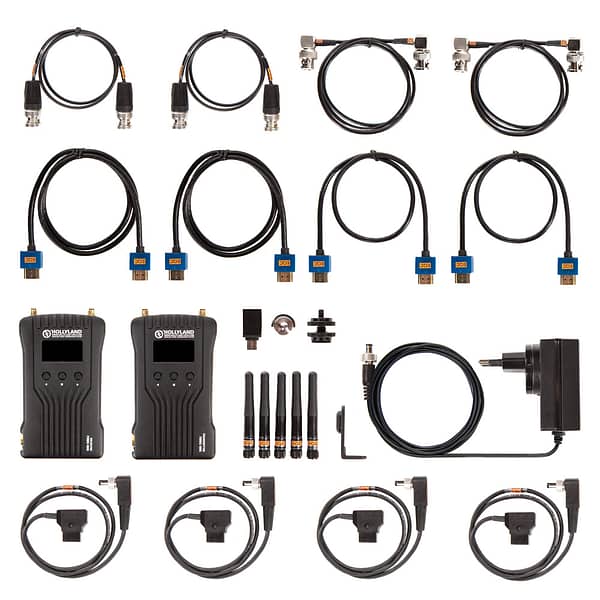

In the Case
- TX unit
- RX unit
- 5x antenna
- 4x antenna cover
- 2x 50cm BNC cable
- 2x 75cm 90° BNC
- 2x 50cm HDMI cable
- 2x 75cm HDMI cable
- 4x D-Tap power cable
- Cold shoe mounting screw (3 parts)
- USB-C > USB adapter
- 1/4” screw
- AC adapter + EU plug
- L-bracket with 1/4”reduction
- Manual

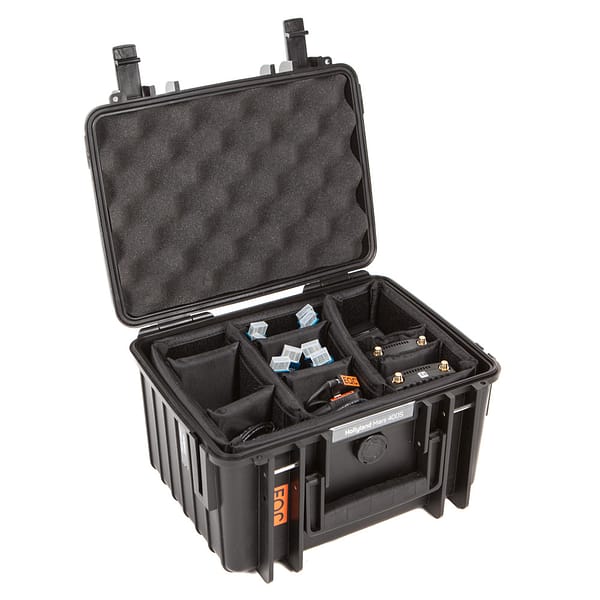

- Hard case
TRANSMITTER | |
Interface | HDMI Input |
SDI Input | |
2 Antenna Interfaces (RP-SMA Male) | |
DC Input, Type-C USB | |
Power Supply Range | 6~16V DC |
Power Consumption | <10W |
Net Weight | 192g |
Size (LxWxH) | 112 x 65 x 23.5 mm |
External antennas and battery plate excluded | |
Input Video Format | HDMI: |
1080p60, 1080p59.94, 1080p50, 1080p30, 1080p29.9, 1080p25, 1080p24, 1080p23.98 | |
1080i60, 1080i59.94, 1080i50 | |
720p60, 720p59.94, 720p50 | |
576p50 | |
480p60 | |
SDI: | |
1080p60, 1080p50, 1080p59.94 (Level A/B) | |
1080i60, 1080i59.94, 1080i60 | |
1080p30, 1080p29.97, 1080p25, 1080p24, 1080p23.98 | |
1080psf25, 1080psf24, 1080psf23.98 | |
720p60, 720p59.94, 720p50 | |
Frequency | 5.1 – 5.9 GHz |
Modulation Mode | OFDM |
Transmission Power | Maximum 21 dBm |
Receiver Strength | 80dBm |
Transmission Latency | Less than 0.1s |
Bandwidth | 20MHz |
RECEIVER | |
Interface | HDMI Output |
SDI Output | |
2 Antenna Interfaces (RP-SMA Male) | |
DC Input, Type-C USB | |
Power Supply Range | 6~16V |
Power Consumption | < 6W |
Net Weight | 189g |
Size (LxWxH) | 112 x 65 x 23.5 mm |
External antennas and battery plate excluded | |
Output Video Format | HDMI: |
1080p24, 1080p25, 1080p30, 1080p50, 1080p60 | |
1080i50, 1080i60 | |
720p50, 720p60 | |
576p50 | |
480p60 | |
SDI: | |
1080p60, 1080p50 (Level A) | |
1080i60, 1080i50 | |
1080p30, 1080p25, 1080p24 | |
1080psf25, 1080psf24 | |
720p60, 720p50 | |
Frequency | 5.1 – 5.9 GHz |
Modulation Mode | OFDM |
Transmission Power | Maximum 21 dBm |
Receiver Strength | 80dBm |
Transmission Latency | Less than 0.1s |
Bandwidth | 20MHz |
