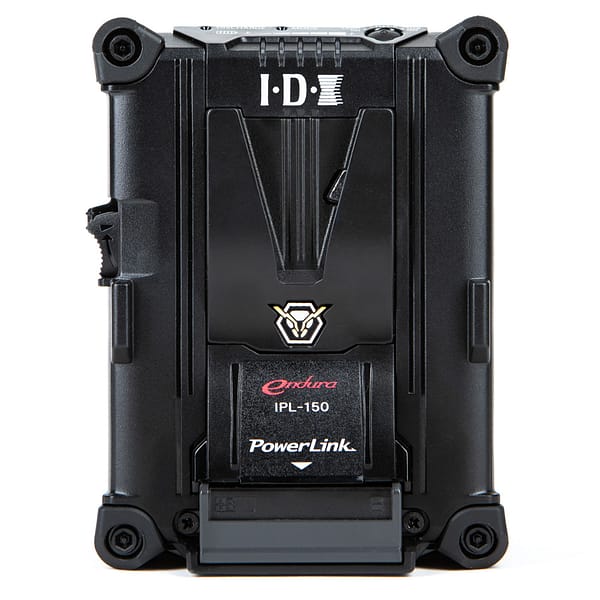

IDX IPL-150 14.4V 143Wh Stackable V-Mount Li-Ion Battery with dual D-Tap and USB


  • 143Wh capacity
  • PowerLink capability (stackable up to four IPL-98/IPL-150 or IDX brand V-mount battery)
  • Meets passenger aircraft travel regulations
  • Capable of handling up to to 11A loads (14A when linked
  • 80W D-Tap Advanced Output (unregulated)
  • 80W D-Tap Output (unregulated)
  • DC 5.0V /2.3A USB output
  • 5 Power Indicator LEDs (displaying 10% increments)

16,00

The IDX IPL-150 14.4V 143Wh Stackable V-Mount Li-Ion Battery with dual D-Tap and USB is the newest stackable battery solution for digital cinema cameras where infinite runtimes are required. With 143Wh capacity, the IPL-150 meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Monstro all day long if needed.

Power & Charging

The IPL-150 also includes two on-battery D-Taps and USB outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones, etc. D-Tap Advanced Output has the added ability to charge battery with the lightweight VL-DT1 D-Tap charger.

Battery circuit protection

The 11V auto cut-off prevents over-discharging (while load is applied). The included DC 5.0V /2.3A USB output will be automatically shutted off after 30 minutes of inactivity.

Battery Capacity 143Wh (14.4V/ 9.9Ah)
Max.Output Voltage 16.8V DC
Nominal Voltage 14.4V DC
Maximum Discharge Current 11A (14A when linked)‡
D-Tap 80W each
USB DC 5.0V / 2.3A
End Voltage 11V
Battery Protection Reverse charge, Over charge, Over discharge, Over current, Temperature protection
Ambient Temperature To charge: 0°C ~ 40°C (10°C ~ 30°C recommended)
To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
To store: -20°C ~ 50°C (one month)
Weight 960 grams approx.
 may vary depending on the operating temperature
