Battery Packs, Power, V-Mount Batteries

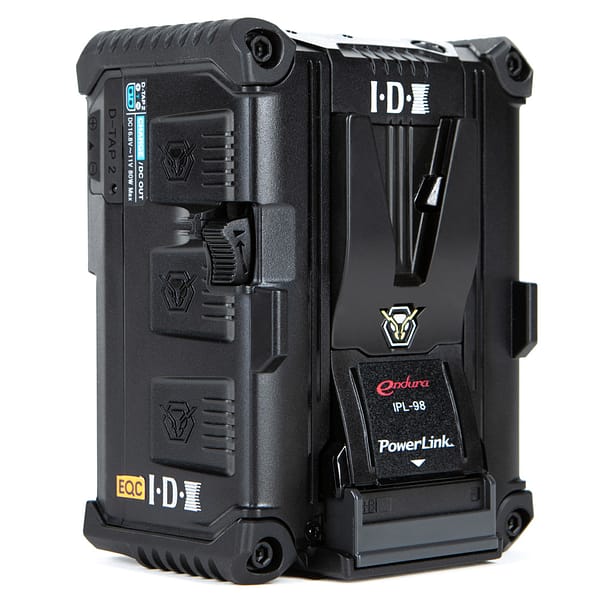

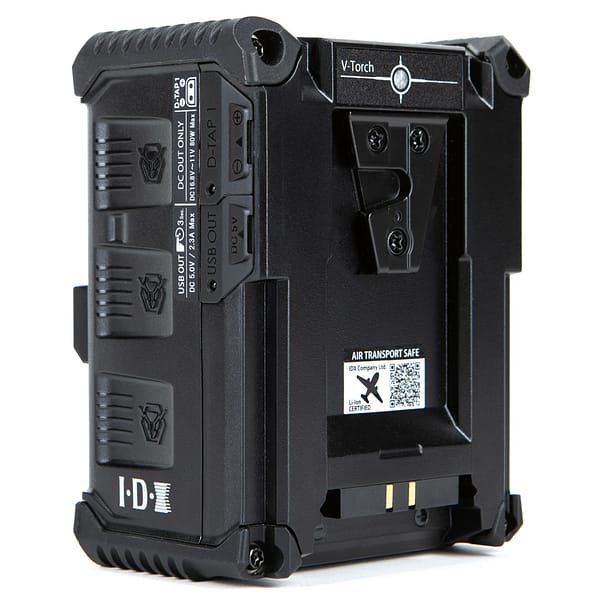

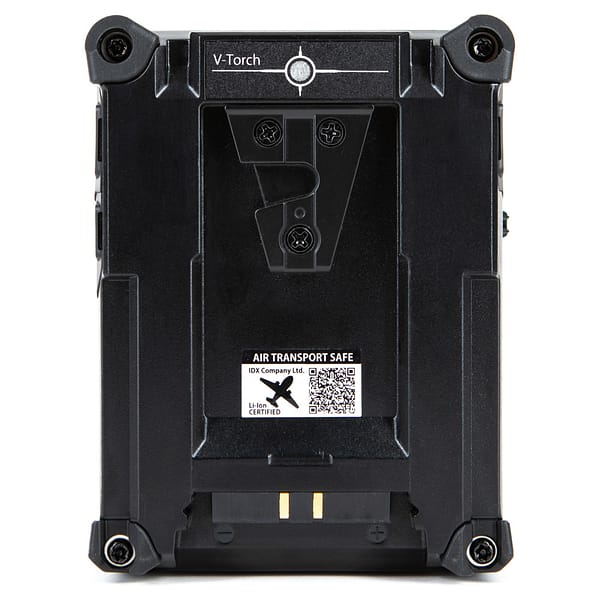

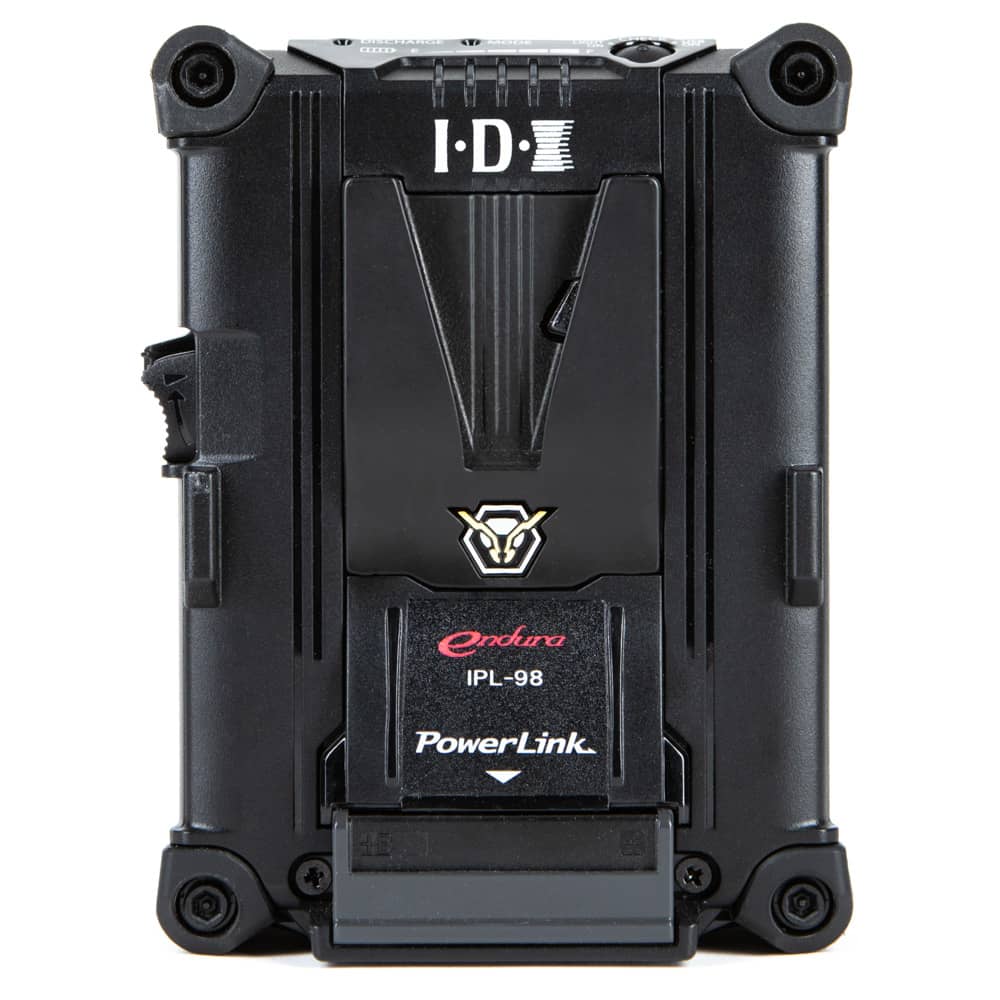

IDX IPL-98 14.4V 96Wh Stackable V-Mount Li-Ion Battery with dual D-Tap and USB
- 96Wh capacity

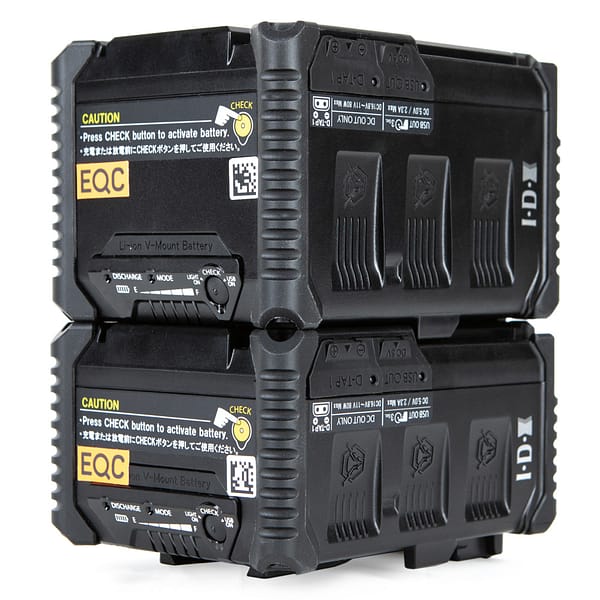

- PowerLink capability (stackable up to four IPL-98/IPL-150 or IDX brand V-mount battery)
- Meets passenger aircraft travel regulations
- Capable of handling up to 10A loads
- 80W D-Tap Advanced Output (unregulated)
- 80W D-Tap Output (unregulated)
- DC 5.0V /2.3A USB output
- 5 Power Indicator LEDs (displaying 10% increments)
€12,00
IPL-98 is the newest stackable battery solution for digital cinema cameras where infinite runtimes are required. With 96Wh capacity, the IPL-98 meets the passenger aircraft carry-on limit and can still provide mobile power to cine-style cameras such as the ARRI ALEXA Mini and RED Monstro all day long if needed.
Power & Charging
The IPL-98 also includes two on-battery D-Taps and USB outputs to power accessories such as monitors, lights, wireless receivers, tablets, phones, etc. D-Tap Advanced Output has the added ability to charge battery with the lightweight VL-DT1 D-Tap charger.
Battery circuit protection
The 11V auto cut-off prevents over-discharging (while load is applied). The included DC 5.0V /2.3A USB output will be automatically shutted off after 30 minutes of inactivity.
| Battery Capacity | 96Wh (14.4V/ 6.6Ah) |
| Max.Output Voltage | 16.8V DC |
| Nominal Voltage | 14.4V DC |
| Maximum Discharge Current | 10A (14A when linked)‡ |
| D-Tap | 80W each |
| USB | DC 5.0V / 2.3A |
| End Voltage | 11V |
| Battery Protection | Reverse charge, Over charge, Over discharge, Over current, Temperature protection |
| Ambient Temperature | To charge: 0°C ~ 40°C (10°C ~ 30°C recommended) To discharge: -20°C ~ 45°C (10°C ~ 40°C recommended) To store: -20°C ~ 50°C (one month) |
| Weight | 730 grams approx. |
| ‡ may vary depending on the operating temperature |
