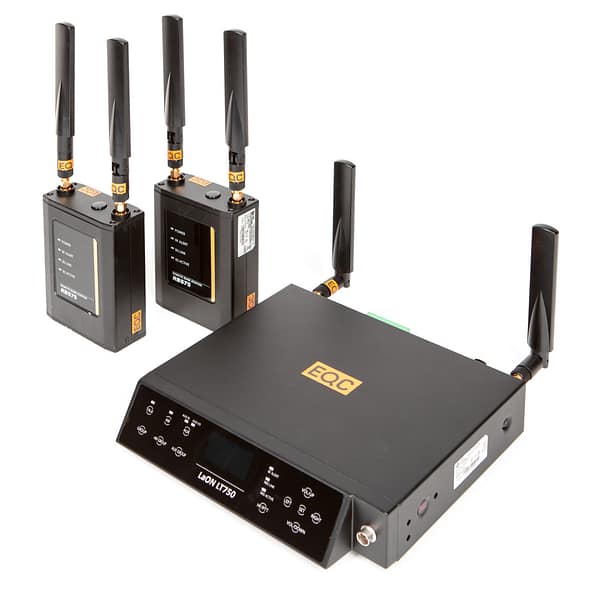

LaON LT 750 Intercom Base Station Set
- High range Base Station for large venues
- Up to 128 Belt Pack connections
- Less than 23ms low latency
- Wired-like audio clarity
- 10x RBS75 repeater connections
- 11x full duplex audio channels with five group channels
€100,00
The LaON LT 750 Intercom Base Station Set offers the best audio quality with an excellent clarity by using
worldwide license free 5GHz UNII band and frequency interference avoidance technologies.
It guarantees the system stability even in the large congested site environments where various A/V and wireless equipments are co-located while offering the super-scalability with the exceptional IP based repeater, RBS75.
The LT750 is high range professional system that offers advanced and unique features for using at large venues, stadiums, stations, OB trucks and etc.

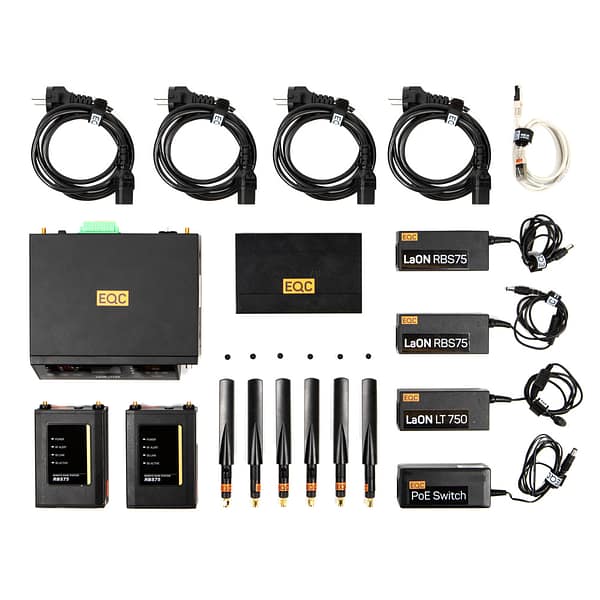

In the Case
- 750 base station with antenna port protectors

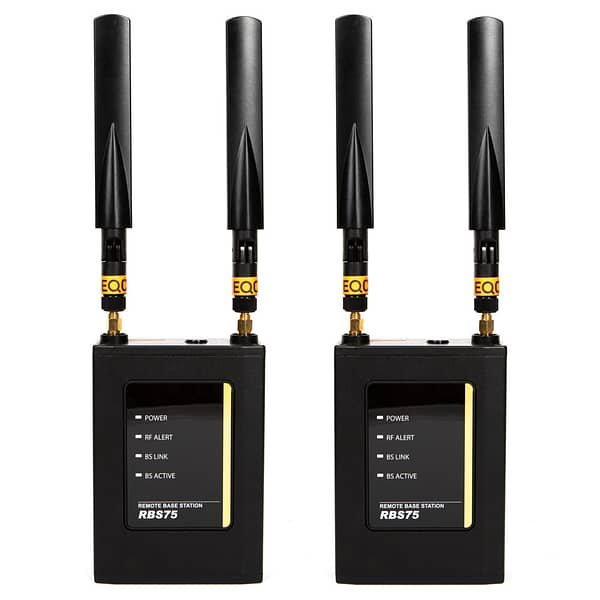

- 2x RBS75 remote base station with antenna port protectors
- 6x antenna
- 1m CAT5 cable
- Netgear 4 port PoE switch
- 4x AC adapter
- 4x AC cable
- EQC bag

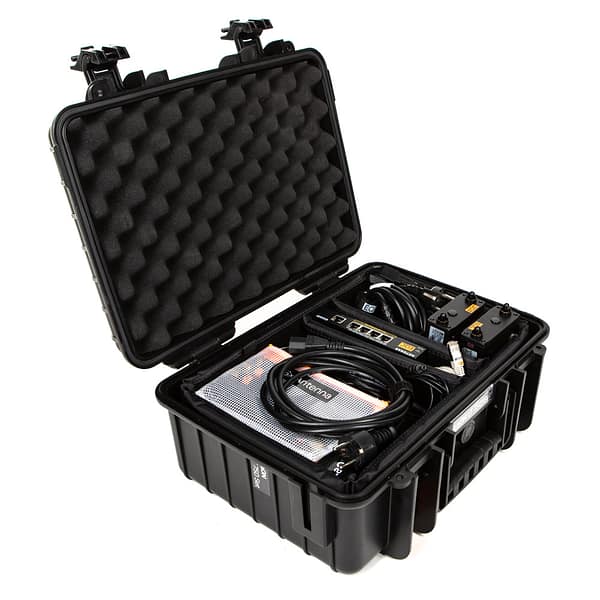

- Hard case
Have a look at our other intercom solutions
| RF Frequency: | UNII band: 5.16GHz~5.34GHz, 5.48GHz~5.70GHz, 5.745GHz~5.865GHz |
|---|---|
| Antenna Connector Type: | External 1/2 -wave dipole, SMA connector |
Transmitter
| Type: | Frequency/Time Diversity |
|---|---|
| Transmit Power: | 17dBm(50mW) @antenna port |
| Modulation Type: | QPSK |
| Frequency Stability: | ± 2ppm |
Receiver
| Type: | Antenna/Frequency/Time Diversity |
|---|---|
| RF Sensitivity: | -85dBm for 5 BER |
| Frequency Stability: | ± 2ppm |
| Belt Packs per Base station: | Belt Packs per Base station: Inherently, 128 Belt Packs can be paired up, and ten (10) Belt Packs operating in full-duplex (talk/listen) at the same time while eleven (5) full-duplex channel is provided including the Master Belt Pack. Single communication group channel is assigned to the Master Belt Pack. |
|---|---|
| Audio Communication Group: | Five (5) |
| Audio Frequency Response: | 200 Hz to 7.2 kHz |
| Audio Dynamic Range: | >70dB |
| S/N | >95dB @ 1Khz |
| Headset output: | 250mW into 32 Ohm |
| Microphone Type: | Dynamic or Electret |
| Headset Connector: | 6-pin mini-DIN male |
| Latency: | One-way system latency less than 23ms direct |
| Communication Security: | 256 bits key AES level 3 Encryption |

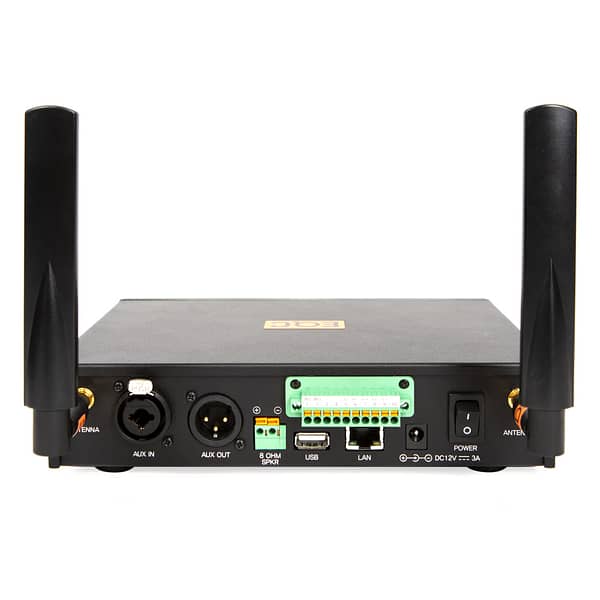

| Auxiliary Input: | XLR-3F/1/4”(6:35mm) combo jack, 600Ω balanced, level adjustable |
| Auxiliary output: | XLR-3M, 600Ω balanced, level adjustable |
| 8Ω Speaker Output: | 1W into 8Ω |
| 4-Wire I/O: | 10-Pin Spring Clamp connector, 600Ω balanced, level adjustable |
| LAN RJ-45 Connector: | One (CAT-5 standard wiring) , Up to ten (10) Remote Station can be connected via LAN. |
| USB Connector : | Monitoring and Program port |

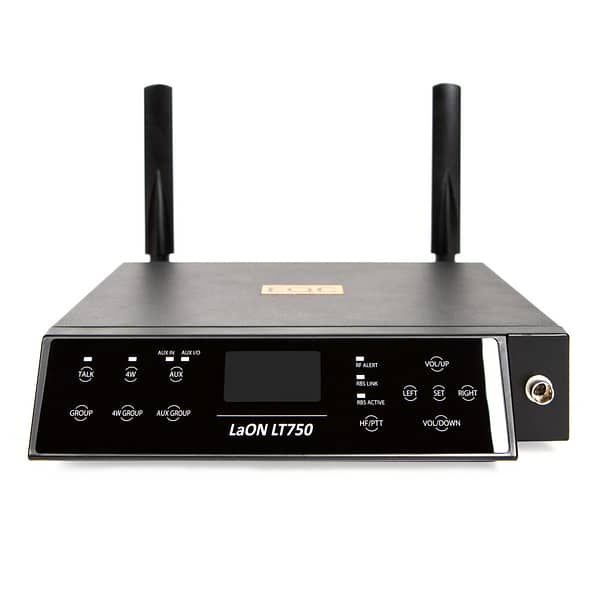

| Front Panel Display: | OLED 128 x 64 Resolutions |
| Front Panel Button: | Touch buttons |
| Power Input: | 100-240VAC, 47-63Hz, 11.4-12.6VDC |
|---|---|
| Operating Temperature: | 0°C to 50°C (32°F to 122°F) |
| Dimensions: | 21W x 16.2L x 4.4H cm (8.26W x 6.37L x 1.73H inch) without connector on the rear panel and foot. |
| Weight: | 1094g (2.4118 lbs) |
