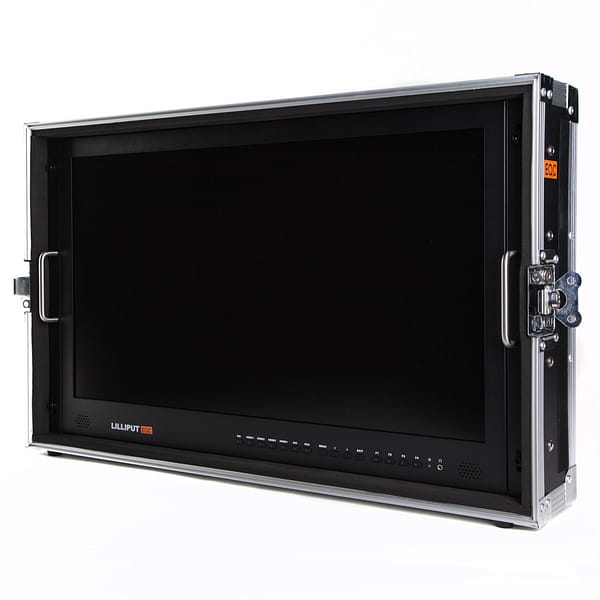

Lilliput BM280-4K LCD Location Monitor 28″


  • 4K (3840*2160) 28″ Ultra-HD native resolution
  • 10-Bit IPS LCD panel with 1000:1 high contrast
  • HDMI, SDI, DVI, and VGA inputs
  • 178° H/V viewing angle
  • Built-in monitoring tools
  • On-Screen markers and focus peaking
  • Built-in V-Mount plate for field operation

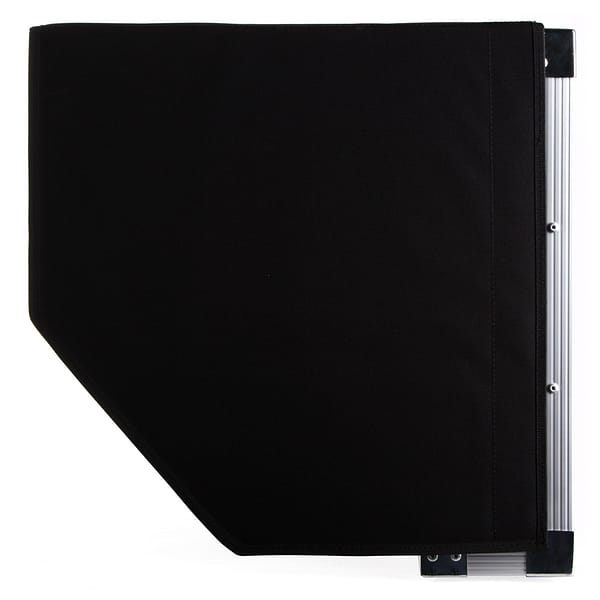

  • Flight case with attachable sunhood

45,00

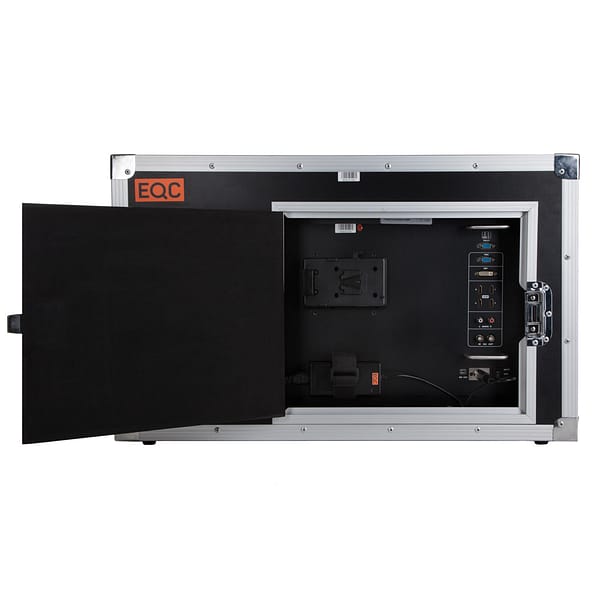

The hard-cased Lilliput BM280-4K 28″ native UHD 4K monitor with 3840×2160 UHD resolution. The 10-Bit IPS panel can be driven at up to 30 fps by any of the three HDMI 1.4 inputs, or up to 60 fps by the single HDMI 2.0 input. Other inputs available on the back panel include SDI (with a loop output), DVI, and VGA. Video signals input via any of these ports will be properly scaled to fit the entire screen. Analog audio from the RCA inputs or embedded digital audio from video inputs can be heard using the monitor’s built-in speakers or the 3.5mm headphone output.

The included power supply plugs the BM230-4K into the wall -for portable power, use a V-Mount battery on the integrated V-Mount plate.

In the Case
  • Lilliput BM280-4K
  • AC adapter
  • IEC320-C5 type AC cable
  • Attached V-mount battery plate
  • Manual
  • Flight case with attachable sunhood

Find suitable V-Mount batteries here

Display

Screen

28″ / 71.1 cm

Resolution

3840 x 2160

Aspect Ratio

16:9

Brightness

450 cd/m²

Contrast Ratio

1000:1

Viewing Angle (H/V)

178°/178°

Input / Output

Input

1 x 3G-SDI

1 x HDMI 2.0

3 x HDMI 1.4

1 x DVI

1 x 4-Pin XLR

1 x VGA

1 x Stereo RCA audio

1 x VGA tally

Output

1 x 3G-SDI

1 x 3.5 mm Headphone jack

Audio

Speaker

2 x L/R

Headphone Output

1

Power

Current Draw

2800 mA (15 V)

Input Voltage

12 to 24 VDC (XLR)

Power Consumption

≤48 W

Physical

Operating Temperature

0 to 60°C (32 to 140°F)

Storage Temperature

-20 to 60°C (-4 to 140°F)

Dimensions

Without Case: 67 x 42.5 x 4.5 cm (26.4 x 16.7 x 1.7″)

With Case: 76.1 x 47.4 x 17.3 cm (30 x 18.7 x 6.8″)

Weight

Without Case: 9.4 kg (20.7 lb)

With Case: 23.5 kg (51.8 lb)
