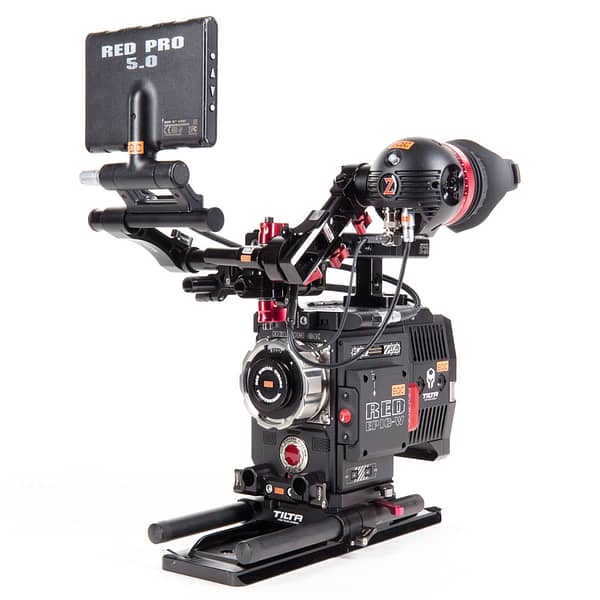

RED Epic-W Helium 8K Ultimate Studio with Tilta B1 Rig

  • Extremely lightweight body
  • 8K 2.4:1 resolution at up to 30fps
  • HELIUM 35.4 Megapixel CMOS – best sensor in it’s class
  • 16.5+ stops of dynamic range
  • Records ultra-efficient REDCODE RAW + ProRes or DNxHR/HD
  • Tilta B1 Rig offers a wide range of I/O options

€650,00

With superior image quality and best-in-class resolution, RED EPIC-W® with HELIUM 8K® S35 sensor allows content creators everywhere to deliver ultra-detailed still and motion images. EPIC-W’s 35 million pixels capture subtle features and tiny nuances that can’t be seen at lower resolutions. At 35.4 megapixels, that’s 4x more resolution than 4K—and over 17x more resolution than HD.EPIC-W combines advanced color science with incredible dynamic range. The result is cinema quality imagery with vivid colors plus detailed shadows and highlights to produce the most realistic images imaginable.

Power consumption: 60W
Estimated runtimes with Li-Ion batteries

90Wh V-Mount 1.6 Hours
150Wh V-Mount 2.5 Hours
190Wh V-Mount 3.1 Hours

Get your battery packs here
Additional RED mini mags available on request

In the Case
  • side SSD-module
  • DSMC2 sidekick
  • PL mount
  • EF mount
  • LLO/STH/STD OLPF in EQC bag
  • Tilta dovetail plate
  • 2x 24cm 19mm carbon rods
  • Tilta B1 rig
  • top handle
  • top plate
  • advanced I/O module
  • 2x 15mm top rod adapter
  • 15mm EVF rod adapter
  • LCD bracket
  • 2x short aluminum rods
  • cage side arm
  • lightweight studio baseplate
  • handle power connection module
  • 2x 480GB RED mini mag, (incl. case)
  • RED station mini mag reader (incl. USB cable, eSATA cable, firewire 800 cable, USB power cable, AC adapter with euro plug)
  • RED 5“ touch monitor (incl. 2x LCD cable, EQC bag)
  • RED Epic AC adapter
  • 2x RED Torx L key T20
  • hard case
Categories: ,

SENSOR

SENSOR TYPE HELIUM 35.4 Megapixel CMOS
EFFECTIVE PIXELS 8192 x 4320
SENSOR SIZE 29.90 mm x 15.77 mm (Diagonal: 33.80 mm)
DYNAMIC RANGE 16.5+ stops



RECORDING

MAX DATA RATES Up to 275 MB/s using RED MINI-MAG (480GB & 960GB)
Up to 225 MB/s using RED MINI-MAG (120GB & 240GB)
REDCODE RAW MAX FRAME RATES1 30 fps at 8K Full Format (8192 x 4320), 30 fps at 8K 2.4:1 (8192 x 3456)
30 fps at 7K Full Format (7168 x 3780), 40 fps at 7K 2.4:1 (7168 x 3024)
75 fps at 6K Full Format (6144 x 3240), 100 fps at 6K 2.4:1 (6144 x 2592)
96 fps at 5K Full Format (5120 x 2700), 120 fps at 5K 2.4:1 (5120 x 2160)
120 fps at 4K Full Format (4096 x 2160), 150 fps at 4K 2.4:1 (4096 x 1728)
150 fps at 3K Full Format (3072 x 1620), 200 fps at 3K 2.4:1 (3072 x 1296)
240 fps at 2K Full Format (2048 x 1080), 300 fps at 2K 2.4:1 (2048 x 864)
PLAYBACK FRAME RATES
(PROJECT TIMEBASE)		 23.98, 24, 25, 29.97, 47.95, 48, 50, 59.94, 60 fps, all resolutions
REDCODE SETTINGS
RANGE FROM 2:1 UP TO 22:11		 6:1 REDCODE for 8K Full Format (8192 x 4320) at 24 fps
7:1 REDCODE for 8K Full Format (8192 x 4320) at 30 fps
2:1 REDCODE for 4K Full Format (4096 x 2160) at 24 fps
4:1 REDCODE for 4K Full Format (4096 x 2160) at 60 fps
REDCODE RAW
ACQUISITION FORMATS2		 8K Full Format (8192 x 4320), 2:1, 2.4:1, 16:9, 14:9, 8:9, 3:2, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
7K Full Format (7168 x 3780), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
6K Full Format (6144 x 3240), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 6:5, 4:1, 8:1, and Ana 2x, 1.3x, 1.25x
5K Full Format (5120 x 2700), 2:1, 2.4:1, 16:9, 8:9, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
4K Full Format (4096 x 2160), 2:1, 2.4:1, 16:9, 8:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, 1:1, and Ana 2x, 1.3x
3K Full Format (3072 x 1620), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
2K Full Format (2048 x 1080), 2:1, 2.4:1, 16:9, 3:2, 4:3, 5:4, 6:5, 4:1, 8:1, and Ana 2x, 1.3x
APPLE PRORES ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 4K (4096 × 2160) up to 29.97 fps
ProRes 4444 XQ and ProRes 4444 at 2K (2048 × 1080) up to 120 fps
ProRes 422 HQ, ProRes 422 and ProRes 422 LT at 2K (2048 × 1080) up to 120 fps
AVID CODECS3 DNxHR HQX at 4K (4096 × 2160) 12-bit up to 29.97 fps
DNxHR HQ, SQ and LB at 4K (4096 × 2160) 8-bit up to 29.97 fps
DNxHR 444 at 2K (2048 × 1080) 12-bit up to 120 fps
DNxHD 444 and HQX (1920 × 1080) 10-bit up to 120 fps
DNxHD HQ, SQ and LB (1920 × 1080) 8-bit up to 120 fps



GENERAL

CONSTRUCTION Magnesium and Aluminum Alloy
WEIGHT 3.35 lbs (BRAIN with Integrated Media Bay)
OPERATING TEMPERATURE 0°C to 40°C (32°F to 104°F)
STORAGE TEMPERATURE –20°C to 50°C (–4°F to 122°F)
RELATIVE HUMIDITY 0% to 85% non-condensing



FEATURES

COLOR MANAGEMENT Supports 33×33×33, 32×32×32, 26×26×26, and 17×17×17 3D LUTs
Variable number of 3D LUT outputs with DSMC2 expander module
User programmable shaper 1D LUTs
Tetrahedral interpolation, 16-bit processing
AUDIO Integrated dual channel digital stereo microphones, uncompressed, 24-bit 48 kHz
Optional 2 additional channels with DSMC2 expander module, uncompressed, 24-bit 48 kHz
REMOTE CONTROL Integrated R.C.P. WiFi antenna
Ethernet, RS232, and GPI Trigger with DSMC2 expander module
MONITOR OUTPUTS 3G-SDI (HD-SDI) and HDMI with DSMC2 expander module
1080p RGB or 4:2:2, 720p RGB or 4:2:2
480p RGB or 4:2:2 (HDMI Only)
SMPTE Timecode, HANC Metadata, 24-bit 48 kHz Audio
MONITOR OPTIONS DSMC2 RED Touch 4.7″ LCD, DSMC2 RED Touch 7.0″ LCD and DSMC2 RED EVF (OLED) with cable-free connection.
RED Touch 9.0″ LCD, RED Touch 7.0″ LCD, RED Touch 5.0″ LCD, RED PRO 7″ LCD, BOMB EVF (OLED) and BOMB EVF (LCOS) compatible with DSMC2 LEMO Adaptor A and LCD/EVF cable.



SOFTWARE

REDCINE-X PRO
DELIVERY FORMATS		 4K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
2K: DPX, TIFF, OpenEXR (.RED via RRencode plugin)
1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, AVID AAF, MXF
1080p 4:2:0, 720p 4:2:0 : H.264, .MP4
VIDEO EDITING SOFTWARE
COMPATIBILITY4		 Adobe Premiere Pro, Avid Media Composer,
DaVinci Resolve, Edius Pro, Final Cut Pro, Vegas Pro

Tech specs reflect both current and projected information. Everything is subject to change.



1. REDCODE values and max frame rates may vary based on selected acquisition format, aspect ratio, project time base, Lookaround setting, and SSD. For more information on available REDCODE compression settings for all formats, see the DSMC Media Operation Guide.
2. For more information on available acquisition formats, see the DSMC Operation Guides.
3. Avid DNxHD/HR Codecs recording support added to DSMC2 firmware v6.3 or later.
4. Third-party non-linear editing (NLE) applications may have limited compatibility with R3D files.
