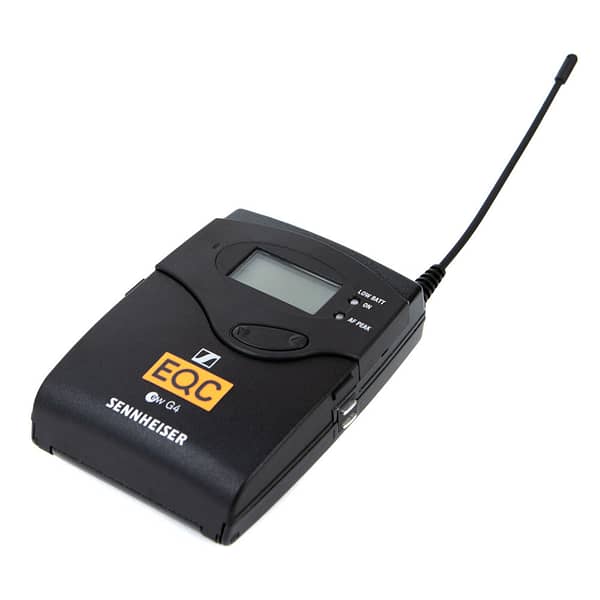

Sennheiser SK 100 G4 Transmitter – Freq. Range B

  • Robust G4 series wireless transmitter
  • 1680 selectable UHF frequencies
  • 626 – 668 MHz with 42 MHz bandwidth
  • 1/8″ line/mic input jack
  • 25 Hz to 18 kHz AF frequency response
  • Infrared wireless synchronization
  • Range: up to 100 meters
  • Up to 8 hours of operation time

€10,00

Related products

The Sennheiser SK 100 G4 Transmitter – Freq. Range B features 1680 frequencies tunable in 25 kHz steps with 20 fixed frequency banks and up to 12 compatible frequency presets. There is 1 user bank with up to 12 user programmable frequencies. The transmitter’s menu-driven backlit display shows current frequency, frequency band and channel number, metering of AF level, transmission status, battery status, and more.

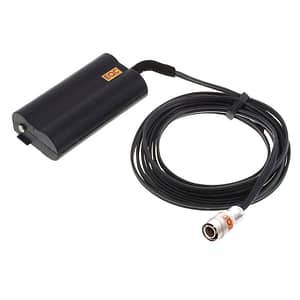

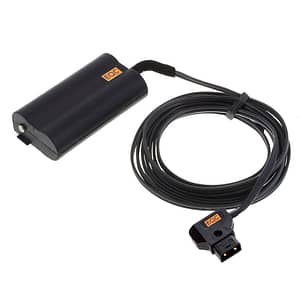

Furthermore, the transmitter is equipped with a mute switch and is powered by two 1.5V AA size batteries or the optional available DC2 D-Tap or DC2 Hirose adapter.

In the Case
  • Sennheiser SK 100 G4 Transmitter
  • EQC bag

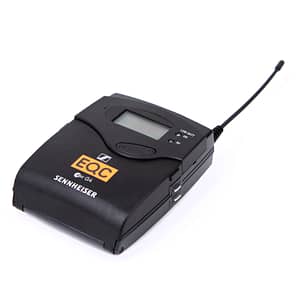

Don’t forget to book your suitable receiver and lavalier microphones.

Categories: ,
Modulation Wideband FM
Frequency Range B: (626 – 668 MHz)
Transmission Frequencies Maximum 1680 receiving frequencies, adjustable in 25 kHz steps
20 frequency banks, each with up to 12 factory-preset channels, no intermodulation
1 frequency bank with up to 12 programmable channels
Switching Bandwidth Up to 42 MHz
Nominal/Peak Deviation ±24 kHz / ±48 kHz
Frequency Stability ≤ ±15 ppm
RF Output Power Maximum 30 mW at 50 Ohms
Pilot Tone Squelch Can be switched off
Compander Sennheiser HDX
AF Frequency Response Mic: 80 Hz to 18 kHz
Line: 25 Hz to 18 kHz
Signal to Noise Ratio ≥ 110 dBA (1 mV, peak deviation)
Total Harmonic Distortion (THD) ≤ 0.9%
Maximum Input Voltage Microphone/Line: 3 V eff
Input Impedance Microphone/Line: 40 kOhms, unbalanced / 1 MOhms
Input Capacitance Switchable
Input Sensitivity Range 60 dB, adjustable in 3 dB steps
Temperature Range -10 to 55°C (14 to 131°F)
Power Supply 2 x AA batteries, 1.5 V or BA 2015 accupack
Nominal Voltage 3 V battery / 2.4 V rechargeable battery
Current Consumption At Nominal Voltage: Approximately 180 mA
With Transmitter Switched Off: ≤ 25 µA
Operating Time Typically 8 hours
Dimensions (W x L x H) 82 x 64 x 24 mm (3.2 x 2.5 x 0.6″)
Weight  160 g (5.6 oz)
