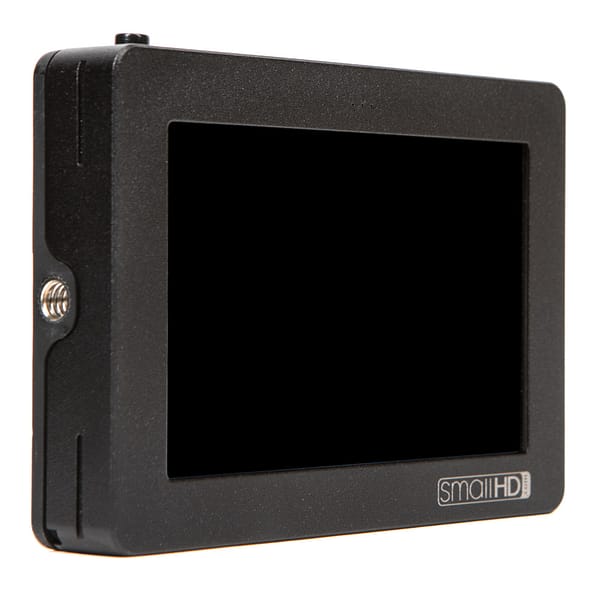

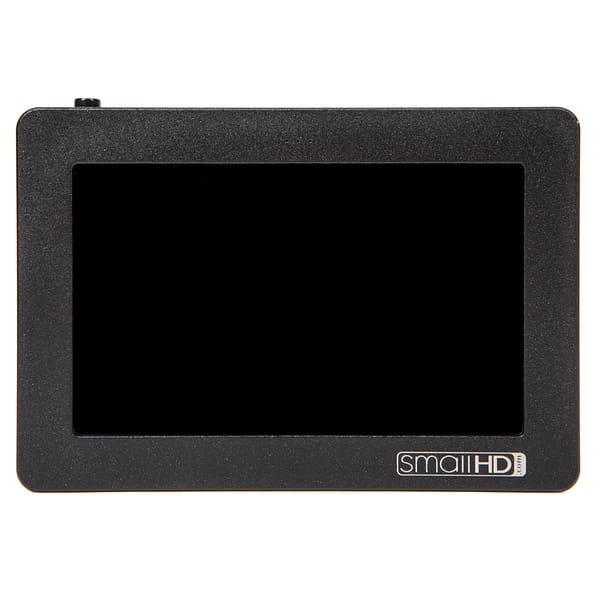

SmallHD DP4 On-Camera Monitor 4.3″

  • Lightweight 800 x 480 HDMI Monitor
  • 400 Nit Brightness/800:1 Contrast Ratio
  • 160° Viewing Angle
  • False Color, Focus Assist


The SmallHD DP4 4.3″ On-Camera Monitor features HDMI, component, and composite video inputs supporting video signals up to 1920 x 1080.

Designed to be rugged, the DP4 Field Monitor features a milled aluminum front frame with hard plastic backing. HDMI pass through allows you to send the HDMI signal downstream without requiring additional hardware.

This field monitor has tools such as focus assist, false color, framing guides, image scaling, image flip, and monochrome.

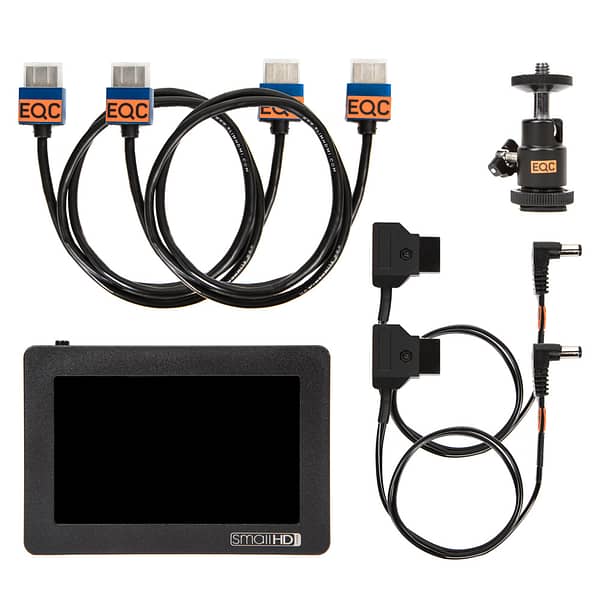

In the Case

  • SmallHD DP4
  • 2x D-Tap power cable
  • 2x HDMI cable 0.75m
  • Cold shoe ball head adapter

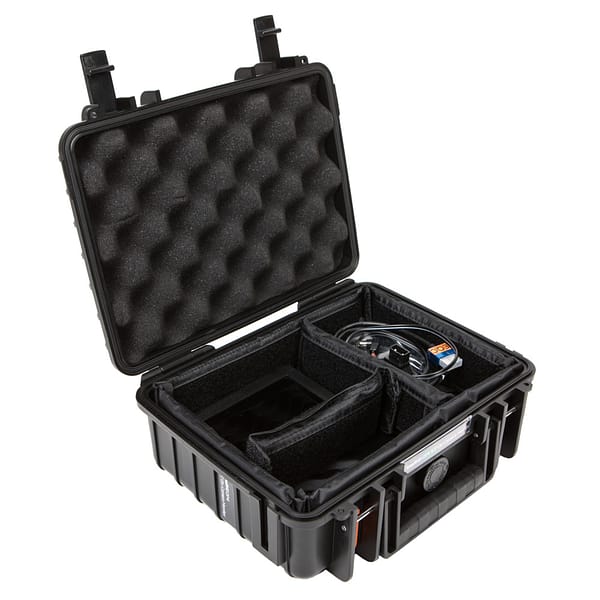

  • Hard case


Display Size 4.3″ (10.9 cm) diagonal
Resolution 800 x 480
Pixels Per Inch 217
Brightness 350 nits
Contrast Ratio 800:1
Video Inputs 1 x HDMI with loop-through, 1 x component, 1 x composite
Headphone Output 1 x 1/8″ mini stereo jack (shared with composite pass-through)
Power Draw 5 W
Power Input 7 to 18 VDC
Auxiliary Output 5 V, 5 A maximum (via USB)
Construction Material Milled aluminum front / plastic back
Dimensions 12.07 x 8.26 x 2.29 cm
Weight 181.4 g
