Sony UWP-D Dual Wireless Set – Freq. Range 33-40

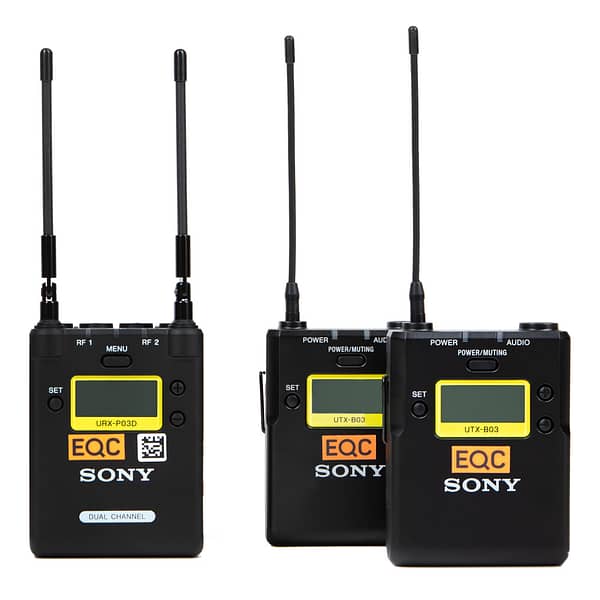

  • Dual receiver and 2x transmitter set
  • Digital companding circuitry
  • Automatic channel scanning
  • Integrated 3-channel mixer at receiver
  • Selectable mic/line input at transmitter
  • Adjustable attenuator
  • Simultaneous multi-channel operation
  • UWP and WL-800 series compatibility

€30,00

Related products

The Sony UWP-D Dual Wireless Set – Freq. Range 33-40 offers wide frequency coverage with up to 72 MHz bandwidth across a broad range of channels. Its integrated 3-channel mixer allows you to control your levels as well as assign outputs freely. The URX-P03D receiver can be mounted directly (without cables) onto many Sony cameras that have an MI (Multi-Interface) Shoe by using the optional SMAD-P3D two-channel shoe adapter.

We’ve completed this set with a Hirose to AA dummy adapter, to give you the ability to power the receiver independently in your sound mixer bag.

Wireless Features

With its Clear Channel Scan, Active Channel Scan function, and IR Sync features, the system detects unoccupied channels and selects the most appropriate channel automatically for fast- and-easy system setup.

The Auto Set channel mode allows the user to find and set available frequencies to use within the operating frequencies of the system. The receiver will automatically set the transmitter channel using the IR Sync feature. The extra-wide switching bandwidth covers a large area, with a wide choice of channels available across multiple models.

This system achieves an exceptionally stable audio signal being delivered from two independent receiver sections within the unit. Optimum signal quality is delivered by the two receivers sections, and a comparison circuit constantly pulls the one with the best signal to give dropout-free transmission.

Outputs

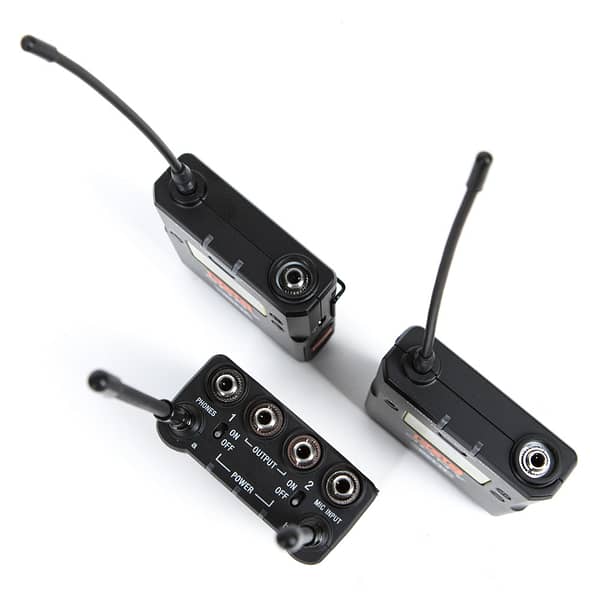

The UWP-D system provides its own headphone output socket, which is particularly useful when working with a camera that does not have a headphone output. Furthermore, it provides variable output level control of ±12 dB, for use with the various input levels of camcorders and DSLR cameras.

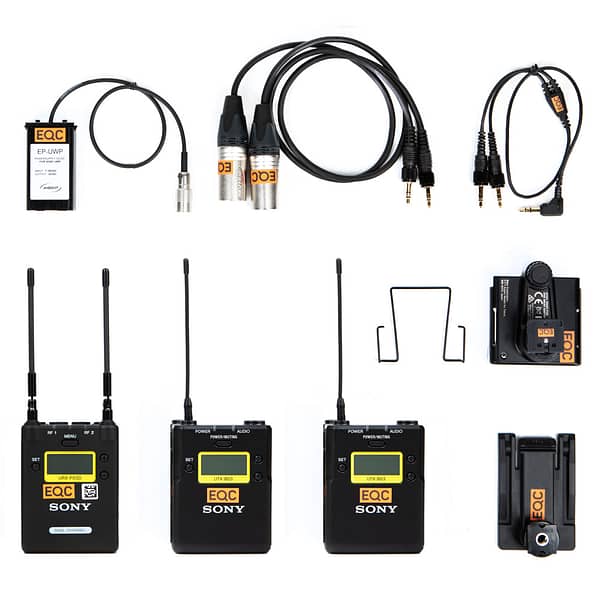

In the Case
  • Sony URX-P03D dual channel receiver
  • 2x Sony UTX-B03 beltpack transmitter
  • 2x 3.5mm TRS to XLR3M cable
  • 3.5mm TRS to 2x 3.5mm TRS cable
  • Belt clip for URX-B03
  • Belt clip for URX-P03D
  • Coldshoe beltpack/receiver holder
  • SMAD-P3D hotshoe receiver holder with hotshoe cover
  • 2x AA battery caddy
  • Hirose to AA dummy adapter

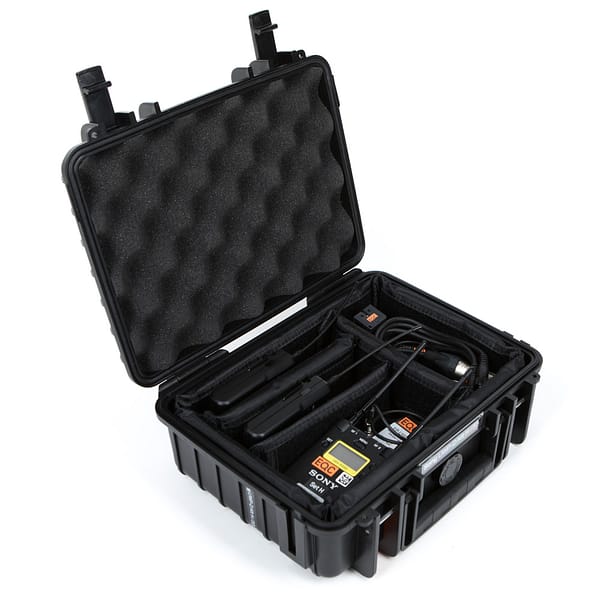

  • Hard case

Don’t forget to book your suitable Sanken COS-11D (black) or COS-11D (white) lavalier microphones.

Have a look at our field mixers and field recorders.

Categories: ,

  • Sony URX-P03D 2-Channel Portable Receiver for UWP-D Systems (Channels 33-40)

    Receiver Channel 33-40
    Frequency 566.025 to 630.000 MHz
    Power Requirements DC 3.0 V (with two AA-size alkaline (LR6) batteries)
    DC 5.0 V (via USB micro-B)
    Battery Life Approximately six hours for 2 channel use / eight hours for 1 channel use with Sony’s AA-size alkaline (LR6) batteries at 25°C (77°F)
    Dimensions (W x L x H) 63.5 x 82.5 x 28.6 mm (2.5 x 3.2 x 1.1″)
    Weight 210 g (7.4 oz)



  • 2 x Sony UTX-B03 Integrated Digital Wireless Bodypack Transmitter (UHF Channels 33/40)

    Type of Transmitter Crystal-controlled UHF PLL-synthesized bodypack transmitter
    Antenna 1/4 wave length wire
    Emission F3E
    Carrier Frequency Range 566.025 to 630.000 MHz
    RF Bandwidth 72 MHz
    RF Power 30 mW / 5 mW
    Type of Input Connector Mic/Line Switchable – 3-pole locking mini microphone connector (3.5 mm)
    Interchangeable Mic Heads Compatible with any microphone that features a mini (3.5mm) connection
    Reference Input Level Mic: -60 dBV (at 0-dB attenuator level)
    Line: +4 dBu
    Attenuation / Gain Mic: 0 to 21 dB (in 3 dB steps)
    Frequency Response 23 to 18,000 Hz (typical)
    Signal to Noise Ratio 96 dB (max deviation, A-weighted)
    Audio Delay Approximately 0.35 msec
    Pilot Tone 32 kHz / 32.382 kHz / 32.768 kHz
    Display LCD
    Power Requirements 3.0 VDC (with two AA-size alkaline LR6 batteries)
    5.0 VDC (via USB micro-B)
    Battery Type/Approx. Life Approximately 8 hours with Sony’s AA-size alkaline (LR6) batteries at 25°C (77°F) at 30 mW output
    Operating Temperature 0 to 50°C (32 to 122°F)
    Storage Temperature -20 to 55°C (-4 to 131°F)
    Dimensions (W x H x D) 63 x 82 x 20 mm (2.48 x 3.23 x 0.79″)
    Weight 149 g (5.26 oz) with batteries
