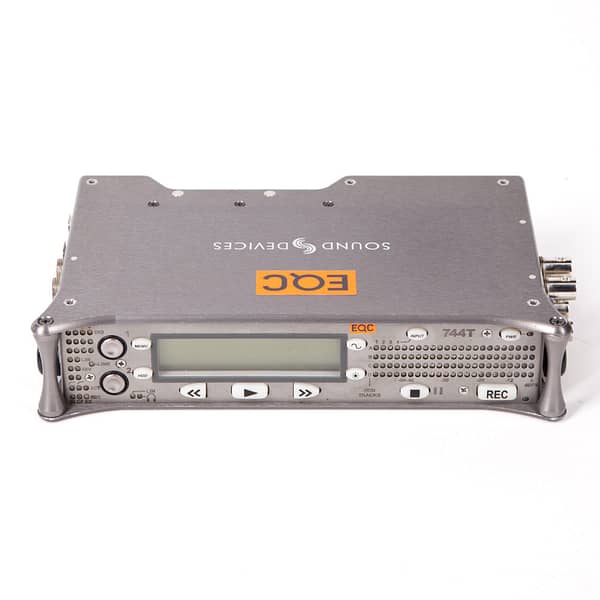

Sound Devices 744T

  • High-End production recorder with time code
  • Two-channel microphone preamps with phantom, limiters, and high-pass filters
  • Channel 3 and 4 line-level inputs on TA3 connectors
  • Two-channel, balanced mic/line level outputs on TA3 connectors
  • AES3 (XLR) or AES3id (unbalanced AES on BNC) digital inputs and AES3id outputs
  • Records to internal 40 GB hard drive, removable Compact Flash, or both storage medium


The 744T is a compact, high-resolution four-track digital audio recorder with timecode. The 744T records to its internal hard drive, removable Compact Flash cards, external FireWire drives, or any combination of the three. With sample rates between 32 kHz and 192 kHz plus full read/write time code, the 744T is the perfect tool for any critical recording environment — from over-the-shoulder to cart-based production.

Categories: ,
Type Portable 4-channel digital hard disk recorder
Recording/Reading Methods Medium:
Internal 160GB SATA hard srive
Compact flash type I, II and Microdrive*File Format:
*FAT32 Formatted
Recording Bit Rate 16-bit, 24-bit
Sampling Frequency Internal: 32, 44.1, 48, 48.048, 88.2, 96, 96.096, 176.4, 192kHz
External: 32-192kHz (Word Clock Input)
Number of Channels 4
Frequency Response 10Hz – 40kHz, +0.1/-0.5dB (gain controls centered)
Signal-to-Noise Ratio Not specified by manufacturer
Dynamic Range A/D:
114dB, A-weighted
110dB, 20Hz – 22kHz bandwidth
112dB, A-weighted
108dB, 20Hz – 22kHz bandwidth
Total Harmonic Distortion (THD) Mic: 0.004% max.(1kHz, 22Hz – 22kHz BW, gain control down, -15dBu input)
Line: 0.004% max.(1kHz, 22Hz – 22kHz BW, gain control down, +16 dBu input
Inputs 1 x XLR mic/line/AES3 (1,2) input, balanced
1 x XLR mic/line/AES3 (3,4) input, balanced
2 x TA3 channel 3,4 line in, balanced
1 x RJ-12 C.Link (RS-232) in
1 x BNC word clock in
1 x Hirose 4-pin DC in
Output 2 x TA3 master analog out (L, R), balanced
1 x 1/8″ stereo mini tape output
1 x 1/8″ stereo mini headphone output
1 x 5-pin LEMO timecode in/out
1 x Firewire IEEE-1394 port
1 x RJ-12 C.Link (RS-232) output
1 x BNC word clock output
1 x BNC AES/SPDIF (L, R) digital master output bus
1 x BNC AES/SPDIF (L, R) digital output nus 2
Headphone Output 1/8″ stereo mini jack
Dimensions (WxDxH) 209 x 125 x 44mm (8.2 x 4.9 x 1.8″)
Weight 1.2kg (2.6 lb) without battery
Specialties Timecode and word clock input/outputs
24-bit/192 recording resolution
Large 202 x 32-pixel backlit LCD display
