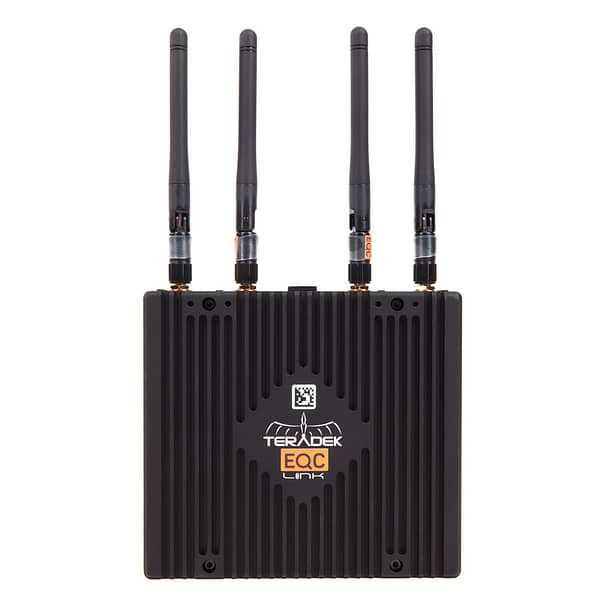

Teradek Link Mobile Dual Band WiFi Access Point

  • Dual band 2.4/5 GHz 802.11ac WiFi
  • 300m range
  • High throughput with quad core processor
  • V-Mount adapter plate
  • PoE power


Link is a ruggedized dual band WiFi router. Designed for use in broadcast and cinema applications, Link offers incredible range, several power options and a chassis suitable for regular abuse in the field and on set.

Dual Band 2.4 / 5 GHz | 802.11ac WiFi

Link supports the latest in WiFi standards and is backward compatible with 802.11 a/b/g/n.

Long Range Coverage

With 1000ft of range, Link offers enough WiFi coverage to blanket most medium sized venues.

High Throughput and Interference Resistant

Link’s quad core processor and significant internal memory ensure high data throughput despite numerous clients utilizing the network at once. Compared to typical consumer access points, Link offers optimized buffering and packet re-transmission, allowing you to maintain a consistent connection even in tough RF environments.

Super Rugged and Flexible Mounting

Link’s aluminum chassis allows it to withstand the daily abuse common in production environments or in the field. With several ¼”-20 mounts, the device can easily be mounted onto light stands, DIT carts, or OB vans.

External Battery Connection

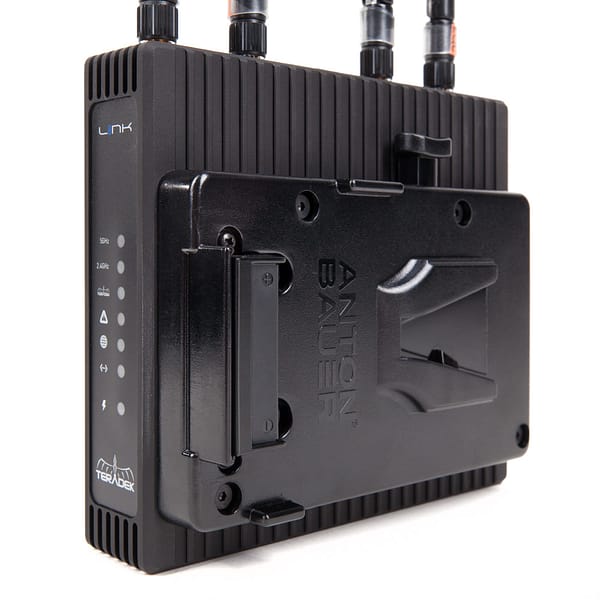

Attached V-mount battery adapter to power Link for extended periods of time in the field.

PoE Power

Link’s passive PoE connection allows the system to be powered in line with the Teradek Sphere or any other PoE injector for a more streamlined setup on set.

Network Security

Link offers standard WiFi network protection, including WEP, WPA, and WPA2 security.

Have a look at the manual for setup instructions.

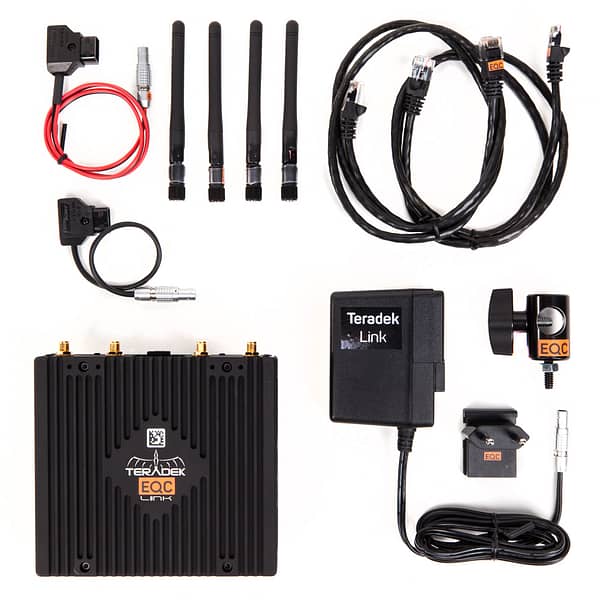

In the Case
  • V-Mount plate
  • AC adapter
  • 2x D-Tap power cable
  • 4x antenna
  • Light stand mount
  • 2x RJ45 cable
  • 2x user manual

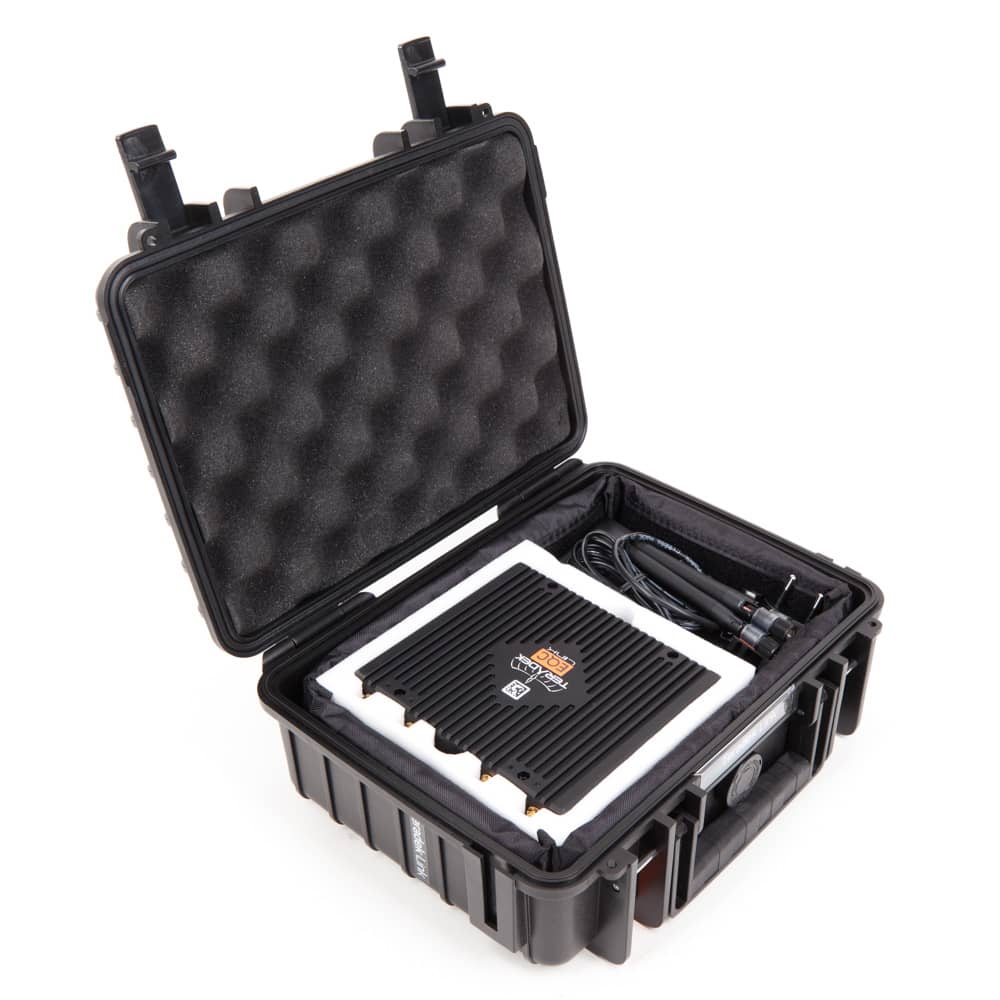

  • Hard case
Protocol Support

Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP


Dimensions: 132.58 x 28.5 x 129.5 mm
Weight: 374 grams
Construction: Milled aluminum (chassis)
Mountability: 1/4″-20 threaded hole, 2x 4-40 threaded holes
Battery Plate: Anton Bauer V-Mount


Http: Feature-rich web UI for configuration and control
Switches: On/Off and Reset switch
Expansion: USB 3.0 Type-A
Status Leds: Multiple LEDs for device, wireless, and network statuses
Interface: USB to 4-pin connector


Temperature: Operating: -10ºC to 50ºC, Storage: -40ºC to 90ºC
Humidity: Operating: 5% to 95% (non-condensing), Storage: Max. 90%

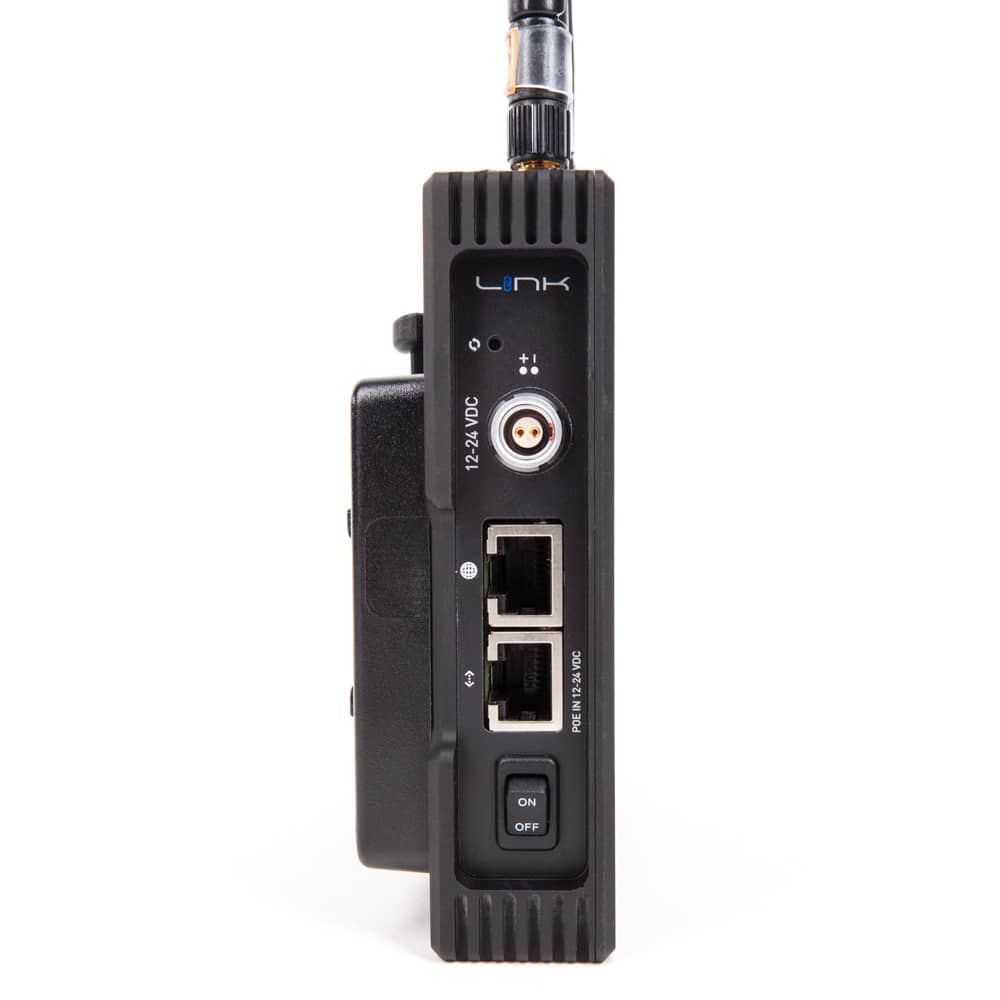

Ethernet: 2x Gigabit Ethernet RJ45 Ports, Auto MDI-X
Wireless Wifi:

  • 2×2 2.4GHz 802.11b/g/n, max 20dBm
  • per chain
  • 2×2 5GHz 802.11a/n/ac, max 16dBm
  • per chain
  • Frequency Range 2.412~2.472GHz,
  • 5.180~5.825GHz

Encryption: 802.1x, 802,11i, WPA2, WPA and WEP – 64/128 TKIP 128bit AES


Power Input: 2-Pin Circular Locking Connector, 12-24V
PoE: Passive PoE 24V, for network cable length < 20m
Nominal Power Consumption: 19W max + up to 5W USB
