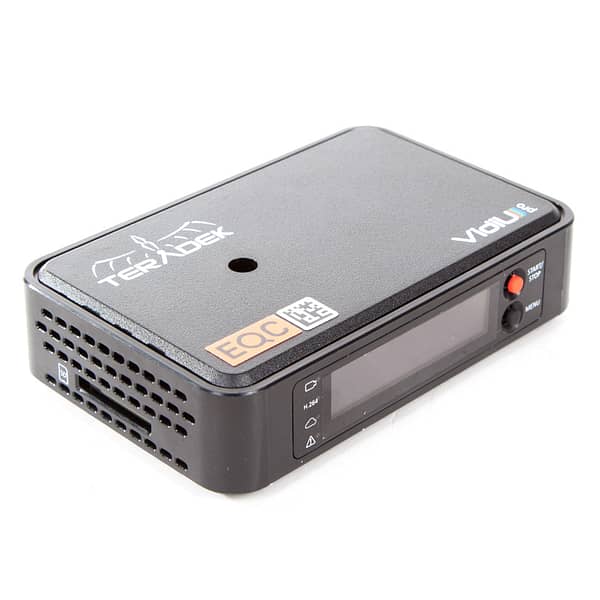

Teradek VidiU Pro Streaming Recorder


  • Stream broadcast quality HD Video
  • Add more VidiU-Pro’s and set up your mobile edit suite with our suitable iPad Pro
  • Deliver to many common platforms and RTMP addresses
  • Accepts any HDMI camera source
  • Bluetooth configuration via Tablet/Phone
  • Two hour internal battery
  • Record to SD card via built-in SD port

25,00

The VidiU-Pro delivers high definition live streaming video with the quality and reliability expected in traditional HD broadcast. Broadcast your events on the most popular, natively integrated, streaming platforms like Ustream, Livestream, Twitch, and YouTube live, or as manual RTMP address to services like Wowza Streaming Server. VidiU Pro is compatible with virtually every streaming platform, so you can choose when and where you go live.VidiU Pro accepts any HDMI camera source and is configurable via Bluetooth using a tablet or smartphone. Roam cable-free for up to two hours of internal Li-ion rechargeable battery life. You can also record your stream to an SD card via VidiU Pro’s built-in SD port for archive, quick edits, and redistribution. (Recorded video file bit rate and resolution match encoded stream quality.)

Have a look at the manual for further details of the VidiU-Pro or watch the setup tutorials here

In the Case
  • VidiU-Pro Streaming Recorder
  • AC Adapter
  • D-Tap cable 1m
  • 2x HDMI A cable 1m
  • HDMI A – HDMI Micro cable 1m
  • CAT5E network cable
  • 1/4″ screw
  • Coldshoe – 1/4″ female adapter
  • Quick start guide
  • Hard Case

Find our iPad Pro with pre-installed Teradek app here
Need a mobile dual band WiFi access point? Book our Teradek Link

Video Inputs

1 x HDMI Type-A receptacle

Bonding
  • ShareLink
Supported Resolutions
  • 1080p 23.98/24/25/29.97/30
  • 1080i 50/59.94/60
  • 720p 50/59.94/60
  • 576i/p
  • 480i/p
Video Compression
  • H.264, Baseline, Main Profiles
Supported Video Bitrate
  • 250 Kbps to 5 Mbps
Supported Video Bitrate Details
  • Full HD: 5.2 Mbit/s
  • HD+:3.0 Mbits/s
  • HD:2.2 Mbit/s
  • High: 1.4 Mbit/s
  • Medium: 796 Kbit/s
  • Low: 446 Kbit/s
  • Mobile: 273 Kbit/s
Supported Output Resolutions 16/9
  • 16:9 Widescreen:
  • Full HD: 1920 x 1080
  • HD+: 1280 x 720
  • HD: 1280 x 720
  • High: 960 x 540
  • Medium: 736 x 414
  • Low: 480 x 270
  • Mobile: 360 x 200
  • 4:3 Outputs:
  • Full HD: 1440 x 1080
  • HD: 960 x 720
  • High: 720 x 540
  • Medium: 560 x 414
  • Low: 368 x 270
  • Mobile: 272 x 200
Video Format Conversion Support
  • Built-in Video Scaler and DeInterlacer
Protocol Support
Network Protocols
  • TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
Supported Video Transport Protocols
  • RTMP
Software Or Platform Integration
  • Ustream, YouTube Live, Facebook & new Livestream
Audio Compression
  • Audio compression: AAC-LC
Supported Audio Bitrate Details
  • HD: 256kbps
  • High: 192kbps
  • Medium: 128kbps
  • Low: 96kbps
  • Mobile: 48kbps
Audio Input
  • Embedded audio input, 2 Channel
  • Analog line or mic-in, 2 Channel
Audio Output
  • Headphone output, adjustable volume
Dimensions
  • 119.38 x 76.2 x 30.48mm (4.7″ W x 3″ D x 1.2″ H)
Weight
  • 198g (6.7oz)
Construction
  • ABS Plastic
Mountability
  • Can be mounted horizontally with
  • 1/4″ 20 mounting holes
Http
  • WebUI for Configuration and Control
Configuration Interfaces
  • OLED display with joystick navigation buttons
  • Feature-rich WebUI for configuration and control
Switches
  • On/Off and reset switch
Recording Storage
  • SD/SDHC (class 6 and above) formatted FAT32
  • USB formatted FAT32
Mobile App
  • VidiU App for iOS and Android devices
Usb Interface Functionality
  • 1x Powered USB 2.0 host port
Ethernet
  • 10/100BASE-T
Wireless
  • WiFi: Dual Band MIMO 802.11 a/b/g/n
Usb
  • USB 3G/4G modem support
Rf Channel Selection
  • Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)
  • Configurable to specific channels
Power Input
  • 6-18V DC Barrel Adapter
Battery
  • Internal Rechargeable Lithium-ion Battery
Nominal Power Consumption
  • 4.5W (while charging: up to 10W)
