TVLogic F-7H Ultra Bright Full HD Monitor 7″


  • 7″, 1920 x 1080, 3G-SDI & HDMI monitor
  • 3600 cd/m² maximum brightness
  • Waveform / vectorscope
  • 160° viewing angle
  • Top-Mounted menu and function buttons
  • HDR and 3D-LUT support

70,00

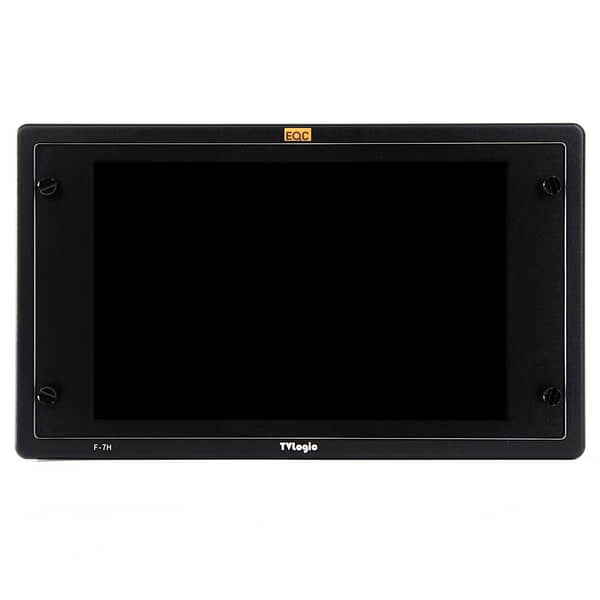

The TVLogic F-7H 7″ Ultra Bright Full HD Monitor is well suited for work in the field, on a camera, or in a studio.The IPS panel features 1920 x 1080 resolution with a 160° viewing angle. It supports 3G-SDI as well as HDMI 1.3, and can cross-convert between SDI and HDMI. It’s 3600 cd/m² brightness and 1200:1 contrast ratio provide a bright clear image that is viewable in daylight without a hood.

The screen supports REC 709, but can also display HDR imagery supporting HLG, PQ, and SLOG3. It features a top-mounted menu, assignable functions buttons, and a selection knob, leaving the front of the screen uncluttered.

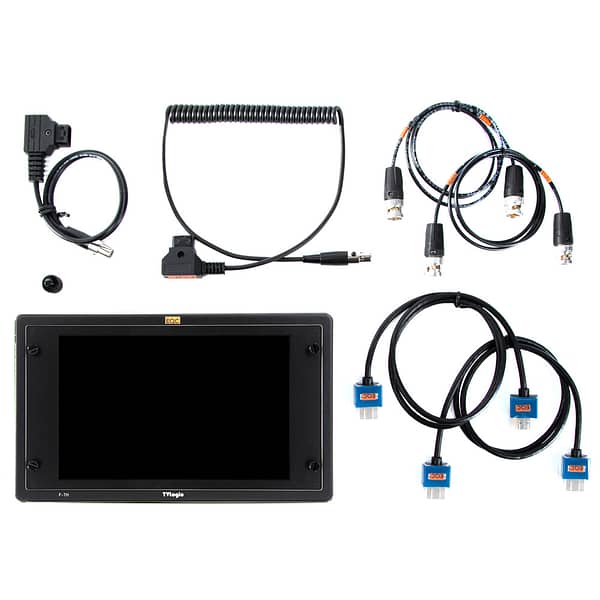

In the Case
  • TVLogic F-7H 7″ Ultra Bright Full HD Monitor
  • Straight D-Tap power cable
  • Coiled D-Tap power cable
  • 2x 0,75m HD-SDI cable
  • 2x 0,75m HDMI cable
  • Screen protector
  • 3/8″ > 1/4″ reduction with 1/4″ insert
  • Bongo Tie

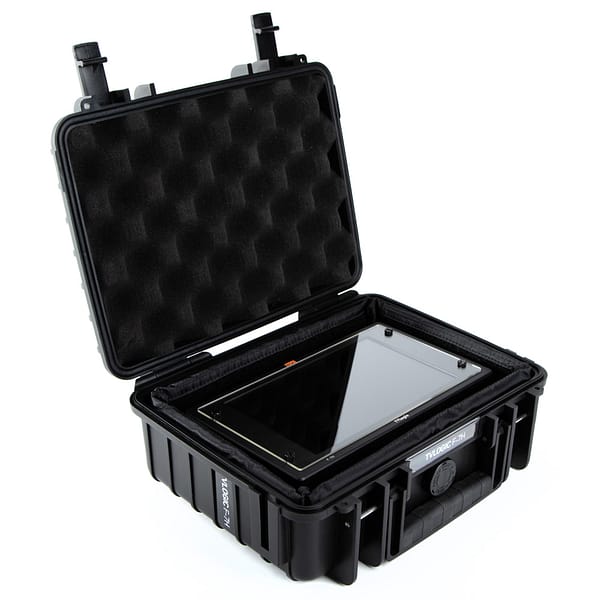

  • Hard case

Display

Panel Type

IPS-Type LCD

Display Size

7.0″ / 17.8 cm

Active Area

151.2 x 94.5 mm (5.95 x 3.72“)

Screen Resolution

1920 x 1080

Aspect Ratio

16:9

Viewing Angle

Horizontal: 160°

Vertical: 160°

Touchscreen

No

Maximum Brightness

3600 cd/m2

Contrast Ratio

1200:1

Bit Depth / Color Support

8-Bit (16.7 Million Colors)

LUT Support

Yes

Image Controls

Blue Only, H/V Delay, Waveform, Zebra, Vectorscope

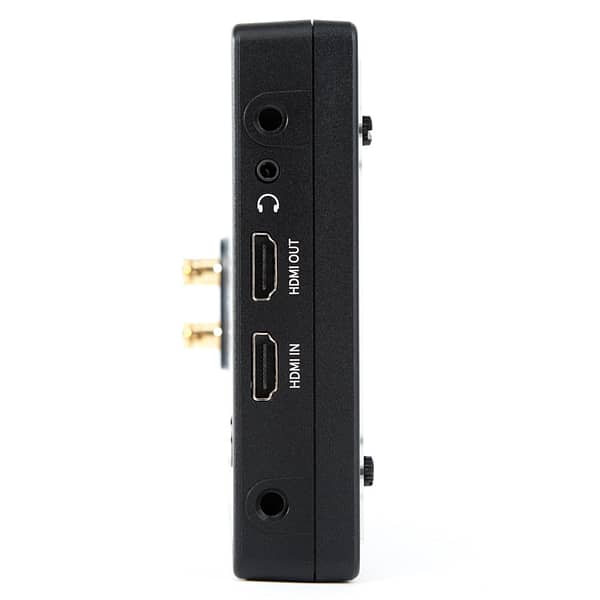

I/O

Video

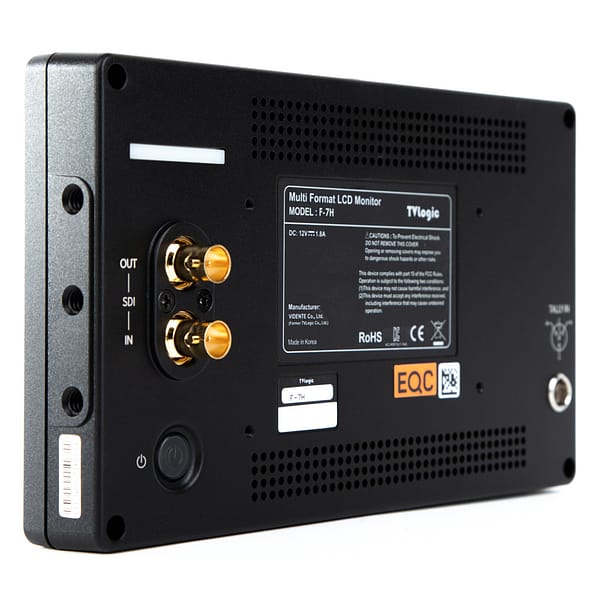

1 x 3G-SDI (BNC) Input

1 x 3G-SDI (BNC) Output

1 x HDMI 1.3 (HDMI Type A) Input

1 x HDMI 1.3 (HDMI Type A) Output

Embedded Audio

SDI

HDMI

Audio

1 x 3.5 mm Line Input

1 x 3.5 mm Headphone Output

Built-In Speaker

1

Other I/O

None

Card Slot

None

Format Support

Video Format

SDI (10-Bit 4:2:2 YCC)

1080p: 50/59.94/60

1080PsF: 24/25/29.97/30

1080i: 50/59.94/60

720p: 50/59.94/60

PAL: 50

NTSC: 59.94

SDI (10/12-Bit 4:4:4 RGB, YCC)

1080p: 23.98/24/25/29.97/30

1080PsF: 23.98/24/25/29.97/30

HDMI (8/10/12-Bit 4:4:4 RGB, YCC)

1080p: 23.98/24/25/29.97/30/50/59.94/60

1080i: 50/59.94/60

720p: 50/59.94/60

576p: 50

PAL: 50

480p: 60

NTSC: 60

HDMI (8/10/12-Bit 4:2:2)

1080p: 23.98/24/25/29.97/30/50/59.94/60

1080i: 50/59.94/60

720p: 50/59.94/60

576p: 50

PAL: 50

480p: 60

NTSC: 60

PC Resolutions

1920 x 1080 at 60 Hz

1280 x 1024 at 60 Hz

1280 x 800 at 60 Hz

1280 x 768 at 60 Hz

1024 x 768 at 60/70/75 Hz

800 x 600 at 60/75 Hz

640 x 480 at 60/75 Hz

640 x 400 at 70 Hz

Video Signal Conversion

SDI to HDMI



HDMI to SDI



Power

DC Input Power

6.8 to 12 VDC at 1.8 A

Battery Type

None

Power Consumption

19 W

Mounting

Mounting

9 x 1/4″-20 Thread

Environmental

Operating Temperature

0 to 40°C (32 to 104°F)

Storage Temperature

-20 to 60°C (-4 to 140°F)

General

Dimensions (W x H x D)

211 x 125 x 28.3 mm (8.31 x 4.92 x 1.11“) including connectors

Weight

0.76 kg (1.68 lb)
