Base Plate & Dove Tail, Camera Rigging

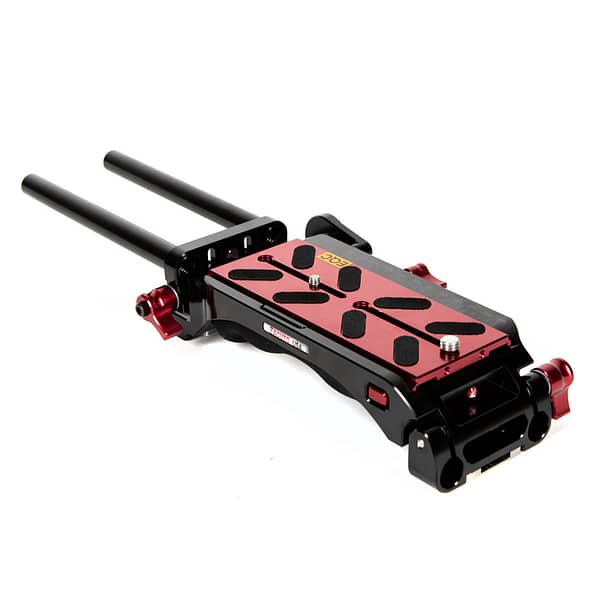

Zacuto VCT Pro Baseplate
- Front 15mm rod adapter set far back
- Accessories and Balance mounting options
- 10″ Track for balance after lens swaps
- Ergonomic gel polymer shoulder pad
- Spring-loaded lever plate adjustment
- VCT14-compatible V-wedge
€6,00
The Zacuto VCT Pro Baseplate is suitable for all types of cameras, from DSLRs to larger models, like the Alexa.
Balance
VCT Pro based rigs are all about finding perfect balance for your camera. The Zacuto VCT Pro Baseplate with it’s lightweight, adjustable rod mount is set far back in the plate, offering plenty of accessory-capable area under the camera lens. This allows you to position your camera further back on the plate, keeping the balance point of your rig directly over your shoulder.
The shoulder pad portion of the VCT Pro is set as far forward on the plate as possible to maximize your accessory capable rod area and aid with balance. The sliding top plate enables quick lens changes and lets you take your camera off the rig in seconds. This top plate with mounting screw tracks is also a key balancing feature. The VCT Pro camera baseplate offers 10” of camera balance sliding range.
In the Case
- Zacuto VCT Pro Baseplate
- 2x 15mm rods 16cm
- Dovetail plate with 1/4″ and 3/8″ screw
Also have a look at our other camera rigging components.
| Mount Types | VCT14-compatible V-wedge 15 mm LWS rod ports in front and back 1/4″-20 and 3/8″-16 tripod mount holes 1/4″-20 and 3/8″-16 camera screws included 6.5″ (16.5 cm) 15mm rods included ARRI M6 rosette Three 1/4″-20 threaded holes for accessories |
| Dimensions | 36.2 x 10.8 x 5 cm (14.25 x 4.25 x 2″) with included 6.5″/16.5 cm rods |
| Weight | 0.96 kg (2.1 lb) |
