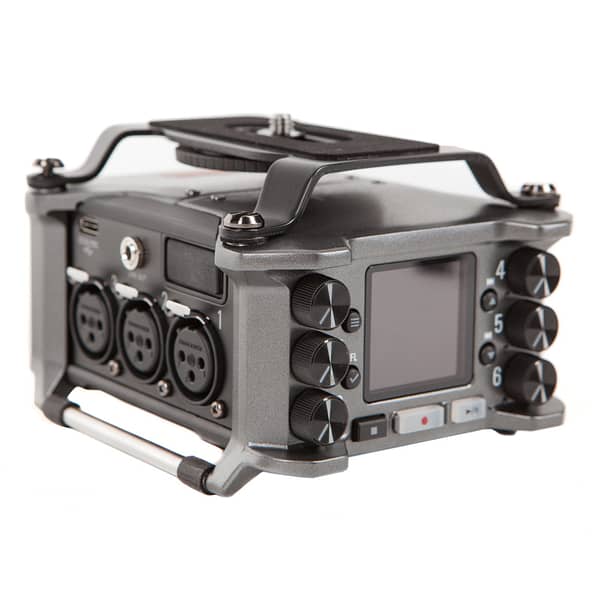

Zoom F6 MultiTrack Field Recorder

  • 6x XLR inputs with Phantom power
  • Up to 192 kHz/ 32-Bit Float recording
  • Highly accurate 0.2ppm Timecode
  • Dual A/D converters
  • Can be powered with: AA Batteries, Sony L-Type (NP-F) battery or via USB-C
  • Remote operation with the Zoom F8 Control App for iOS

€20,00

Related products

The Zoom F6 professional field recorder features both 32-bit float recording and dual A/D converters, providing an unprecedented amount of dynamic range. With 6 inputs, Zoom’s solid time code, multiple power options and wireless control, the F6 is a great choice for small setups.

Mic Preamps

The F6 is equipped with six professional-grade preamps. Featuring a super-low noise floor (-127 dBu EIN), high gain (up to 75 dB), and selectable mic/line levels for each input, the F6 is built for location sound.

Precision Time Code

Keep your tracks perfectly synced even when you power down for lunch. On or off, the F6’s Temperature Compensated Crystal Oscillator (TCXO) generates time code at 0.2 ppm accuracy.

Advanced Look-Ahead Hybrid Limiters

When recording in 24-bit, the F6 uses advanced look-ahead hybrid limiters to provide overload protection. By adding a 1-millisecond delay, the limiters “look ahead” anticipating clipping before it’s recorded.

Zoom AutoMix™

Zoom AutoMix™ lets you keep your eyes on the action by automatically adjusting the levels of your mix to reduce ambient sound.





In the Case
  • Zoom F6 Multitrack Field Recorder

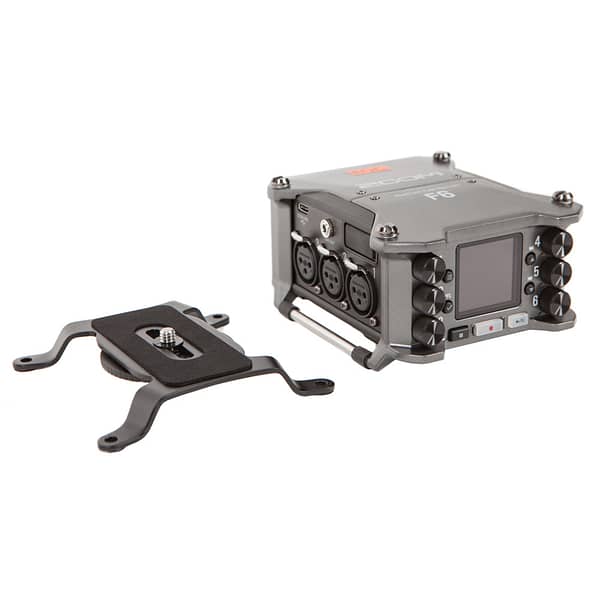

  • Camera mount adapter
  • 2x Manual

A suitable sound bag will be provided on request. We have different options, please contact us to find the perfect solution for your project.

Categories: ,

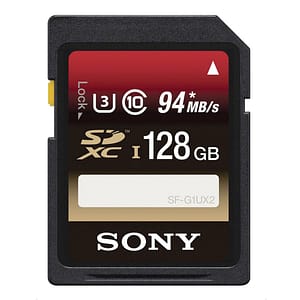

Recording Media: SD cards, SDHC cards, SDXC cards (that conform to standards)
INPUTS

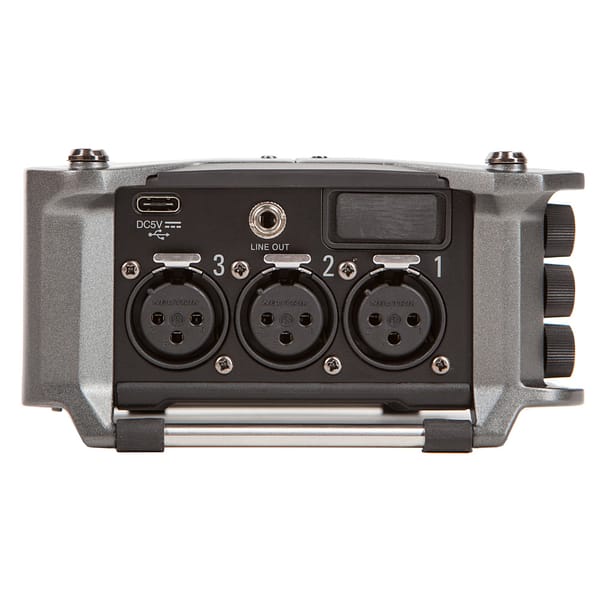

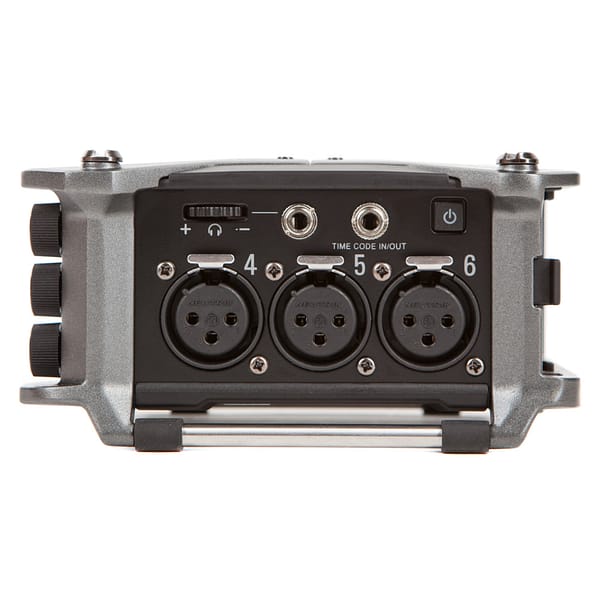

Inputs 1–6: Connectors XLR jack (pin 2 hot)
Input (mic): Input gain +12 dB – +75 dB
Input impedance 3 kΩ or more
Maximum input level +4 dBu
Input (line): Input gain −8 dB – +55 dB
Input impedance 5 kΩ or more
Maximum input level +24 dBu
Phantom power: +24/+48V 10mA maximum for each channel
Equivalent input noise: −127 dBu or less (A-weighted, +75 dB input gain, 150 Ω input)
OUTPUTS
Line output: Connectors 3.5 mm stereo mini unbalanced output
Output impedance 100 Ω or less
Reference output level –10 dBV, 1 kHz, 10 kΩ load
Maximum output level +10 dBV, 1 kHz, 10 kΩ load
D/A dynamic range 95 dB typ (−60dBFS input, A-weighted)
Headphone output: Connector 3.5 mm stereo mini unbalanced output
Output impedance 15 Ω or less
Maximum output level 100 mW + 100 mW (32Ω load)
D/A dynamic range 108 dB typ (−60dBFS input, A-weighted)
RECORDING FORMATS
When WAV selected:
Supported formats: 44.1/47.952/48/48.048/88.2/96/192 kHz, 16/24-bit/32-bit float,
mono/stereo/2-8ch poly, BWF/iXML
Maximum simultaneous recording tracks: 14 (6 inputs x 2 (Linear and Floating) + LR mix)
6 (6 inputs (Linear or Floating) at Float(32bit) Mode, 192 kHz)
When MP3 selected:
Supported formats: 128/192/320 kbps, 44.1/48 kHz, ID3v1 tags
Maximum simultaneous recording tracks: 2
RECORDING TIME
Using a 32 GB card: 30:46:00 (48 kHz/24-bit stereo WAV)
7:41:00 (192 kHz/24-bit stereo WAV)
TIMECODE
Connectors: 3.5 mm stereo mini (Tip: IN, Ring: OUT)
Modes: Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec
(audio clock can be synchronized to timecode)
Frame rates: 23.976 ND, 24 ND, 25 ND, 29.97 ND, 29.97 D, 30 ND, 30 D
Precision: ±0.2 ppm
Allowed input level: 0.2 – 5.0 Vpp
Allowed input impedance: 4.6 kΩ
Output level: 3.3 Vpp
Output impedance: 50 Ω or less
POWER
Options: AC adapter : DC 5V (supports USB bus power)

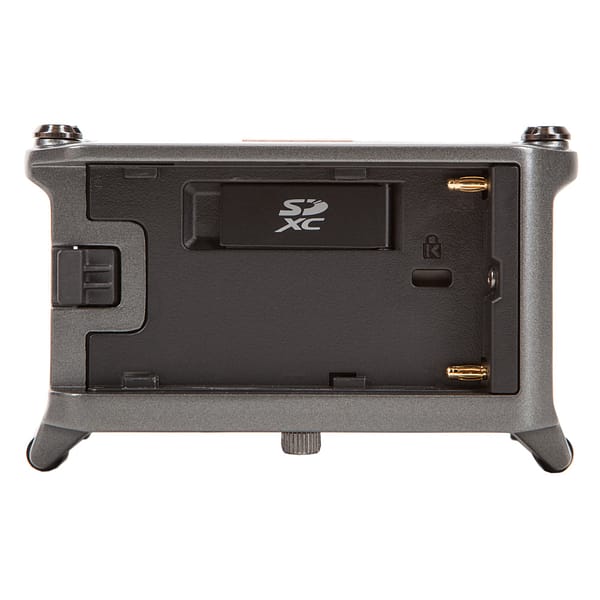

Sony® L-Series battery

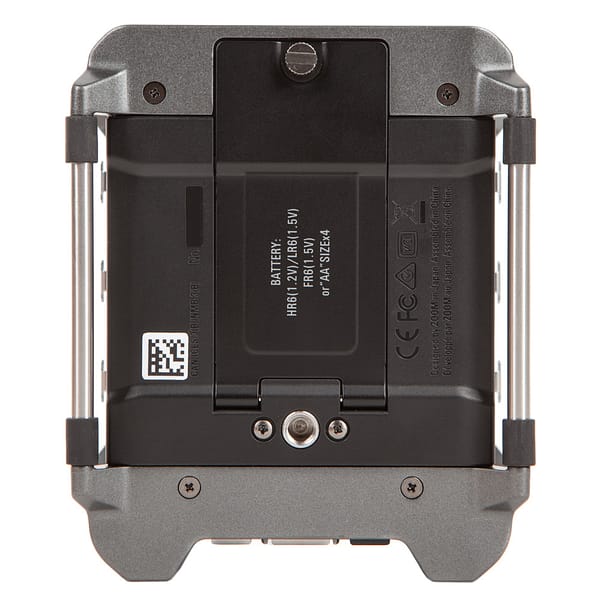

4 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
Continuous recording time:
48 kHz/16-bit 2ch recording to SD card (LINE OUT off, TIMECODE off, LED/LCD Brightness 5, headphones into 32Ω load, PHANTOM off): Alkaline batteries 7.5 hours or more
NiMH batteries
(2450 mAh)
10.5 hours or more
Lithium batteries 16.5 hours or more
48 kHz/24-bit 6ch recording to SD card (LINE OUT off, TIMECODE off, LED/LCD Brightness 5, headphones into 32Ω load, PHANTOM off): Alkaline batteries 5.0 hours or more
NiMH batteries
(2450 mAh)
7.0 hours or more
Lithium batteries 10.5 hours or more
192 kHz/24-bit 6ch recording to SD card (LINE OUT on, TIME CODE set to Int Free Run, LED/LCD Brightness 60, headphones into 32Ω load, PHANTOM at 48 V): Alkaline batteries 0.5 hours or more
NiMH batteries (2450
mAh)
1.5 hours or more
Lithium batteries 3.5 hours or more
DISPLAY
1.54″ full-color LCD (240 × 240)
USB
Mass storage operation: Class USB 2.0 High Speed
Multitrack audio interface operation (driver required for Windows, no driver required for MacOS): Class USB 2.0 High Speed
Specifications Sampling rate 44.1/48/88.2/96 kHz
Bit Rate 16/24-bit
Channels 6 in/4 out
Stereo mix audio interface operation (no driver required): Class USB 2.0 Full Speed
Specifications Sampling rate 44.1/48 kHz
Bit Rate 16-bit
Channels 2 in/2 out
Note: iOS device audio interface operation supported (stereo mode only)
AIF with Rec operation (driver required for Windows, no driver required for MacOS): Class USB 2.0 High Speed
Specifications Sampling rate 44.1/48 kHz
Bit Rate 16/24-bit
Channels 8 in/4 out
Power consumption: 10 W
External dimensions: 100 mm (W) x 119.8 mm (D) x 62.9 mm (H)
Weight: 520 g
