€40,00
Die AtomHDR-Display-Technologie ermöglicht es Ihnen, Ihr Log-Gamma-Material genau zu überwachen, ohne dass Sie flache, verwaschen aussehende Bilder betrachten oder eine LUT verwenden müssen, um den Dynamikumfang und den Farbraum zu komprimieren. Der Monitor unterstützt gängige Log Formate von Sony, Canon, Panasonic, ARRI, RED und JVC Kameras. Die Einstellungen wirken sich nur auf die Anzeige aus, wobei die aufgezeichneten Videos unverändert bleiben.
Mit AtomHDR können Sie bis zu zehn Stufen des Dynamikbereichs des LOG-Bildes Ihrer Kamera überwachen. Die meisten herkömmlichen Monitore können nur sechs oder sieben Blendenstufen anzeigen, was für Standardmaterial in Ordnung ist; aber ein Log-Bild sieht zu flach aus. Es ist auch dem Monitoring mit einer geladenen LUT überlegen, welches die Lichter und Schatten abschneiden kann.
Finde geeignete Akkus hier.
| Weight | |
|---|---|
| Without batteries & media | 360g / 12.7oz |
| With batteries & media | – |
| Dimensions (W x H x D mm) | 151 x 91.5 x 31mm |
| Construction | Aluminium alloy chassis with ABS polycarbonate back plate |
| Mounting points | 1/4-20 UNCscrew mount; 1x top, 1x bottom |
| Power | |
|---|---|
| Operating power | 10 – 19W |

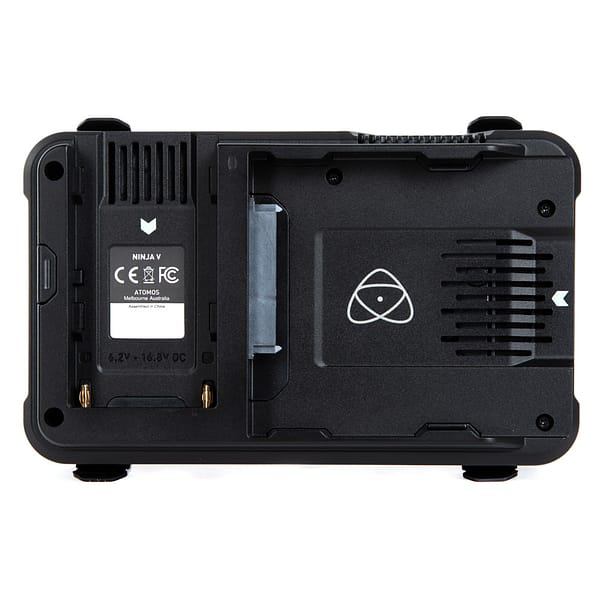

| Compatible batteries | NP-F series and supporting accessories |
| Input voltage (battery) | 6.2V to 16.8V |
| Battery time (based on 2 x 7.4V) | 5200mAh – up to 2hrs (monitor & record 4K +60p) |
| 7800mAh – up to 3hrs (monitor & record 4K 60p) | |
| DC In | |
| Continuous power * Patent pending |
Continuous power with external adaptor* |
| Touchscreen | |
|---|---|
| Size | 5” |
| Resolution | 1920 x 1080 |
| PPI | 427 |
| Aspect ratio | 16:9 native |
| Color Gamut | REC709 HDTV |
| Look up table (LUT) support | 3D LUT (.cube format) |
| Anamorphic de-squeeze | 2x, 1.5x, 1.33x, Panasonic 8:3 |
| Technology | SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit |
| HDR | |
|---|---|
| AtomHDR | Yes |
| Supported Log formats | Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm, FujiFilm Flog, Nikon N-Log |
| HDR Recording (Gamut) | Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ10k, HLG, Nikon N-Log |
| HDR Monitoring (Gamma) | Sony SGamut / SGamut3 / SGamut3.cine / BT2020 Canon Cinema / DCI P3 / DCI P3+ / BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 JVC LS300 Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| HDR Monitoring (Gamut) | Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 on screen Wide Color Gamut (SGamut / SGamut3 / SGamut3.cine / Canon Cinema / BT2020 / DCI P3 / DCI P3+ / Panasonic V Gamut / Arri Alexa Wide Gamut) mapping to Rec709 / BT2020 / DCI P3 on loop out |
| Bit depth | 10-bit (8+2 FRC) |
| Brightness | 1000nit (+/- 10% @ center) |
| HDR input (PQ/HLG) HDR output (PQ/HLG) |
Yes / Yes Yes / Yes |
| Video Input/Loop Out | |
|---|---|

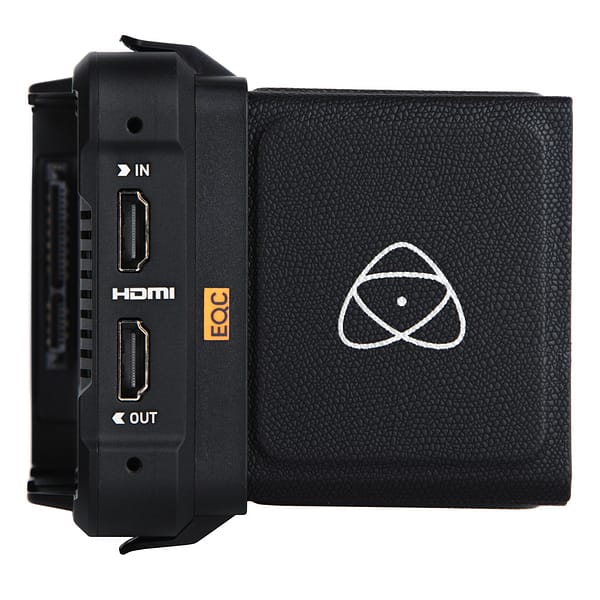

| HDMI | 1 x HDMI (2.0) |
| SDI | – |
| Signal | Uncompressed true 10-bit or 8-bit 422 (camera dependent) |
| Video Output (Play Out) | |
|---|---|
| HDMI | 1 x HDMI (2.0) |
| SDI | – |
| Signal | Uncompressed true 10-bit or 8-bit 422 (playback file dependent) |
| Supported Loop Out Formats | |
|---|---|
| HDMI to HDMI | 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120 2160p 24/25/30/50/60 |
| SDI to SDI | – |
| Video Signal Conversion | |
|---|---|
| HDMI to SDI | – |
| SDI to HDMI | – |
| AtomX Expansion Port – Video, Audio & Power In/Out | |
|---|---|
| Video | Up to 4Kp60 |
| Audio | 12 channels digital 24-bit 96KHz |
| Power | 5V-16.6V |
| Supported Codecs & Frame Rates (Record & Playback) | |
|---|---|
| Video to ProRes / DNxHR(DNx utilizes a .MOV wrapper) |
Apple ProRes HQ, 422, LT AVID DNxHR HQX. HQ, SQ, LB 4K DCI; 24/25/30/50/60p 4K UHD; 24/25/30/50/60p 2K 1080p; 24/25/30/50/60/100^/120^ 1080i; 50/60i, 720p; 50/60p |
| Onboard Processing | |
|---|---|
| Pulldown removal | 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown) |
| 4K UHD downscale for HD monitoring | Yes – Loop-out and playback |
| Audio In/Out (48kHz PCM Audio) | |
|---|---|
| HDMI | 2 or 8ch 24-bit, camera dependent |
| SDI | – |

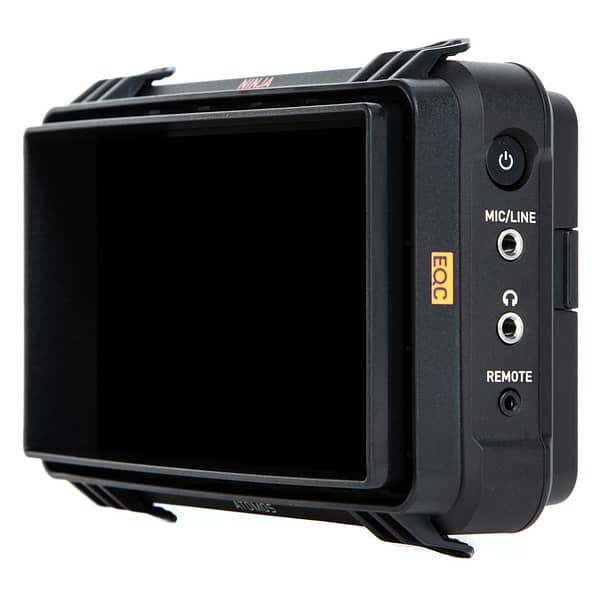

| Audio | Line in / Mic in / Headphone out 2ch 48kHz 24-bit |
| Headphone out | 3.5mm |
| Remote Start/Stop | |
|---|---|
| HDMI | Auto HDMI Trigger Supported Protocols – Canon, Sony, Atomos Open Standard |
| SDI | – |
| Other | LANC control – Slave |
| Playback | |
|---|---|
| Playlist / Genlock / LTC | Yes / – / – |
| CDNG (Recorded content) | N/A |
| ProRes (Recorded content) | All recorded files can playback. Playback in slow motion. |
| DNxHR / DNxHD (recorded content) | All recorded files can playback. Playback in slow motion. |
| Recording | |
|---|---|
| Pre-roll record | Yes (HD 8s, 4K 2s) |
| Custom timelapse | Yes* |
| Meta data tagging | Yes (10 tags available) |
| Supported media | 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives |
| Master caddy case | Master Caddy II (included) 75mm x 105mm x 12mm |
| Master caddy dock | 2.5” SATA to USB 2.0/3.0 |
| Supported applications | Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015 |
| XML support | FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools |
| * Timelapse feature will be added to next firmware upgrade | |
24/30/60 frame rates also means 23.98/29.97/59.94 frame rates for all resolution
* Available in future firmware updates
*** No HDMI spec for 2K DCI
^ From supported HDMI sources such as gaming consoles and graphics cards.
