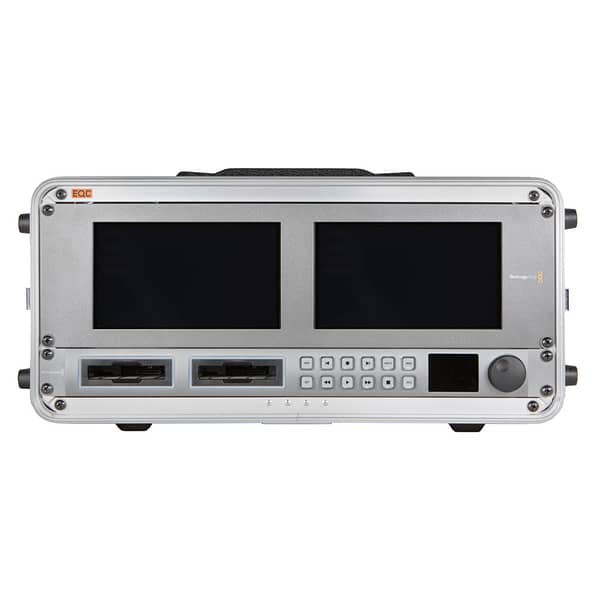

Blackmagic Design Mobile Live Player Unit HD

  • Dateibasierte Videorekorder-Einheit
  • Smart Scope und analoger Audio-Splitter enthalten
  • Spielt und zeichnet 10-Bit 4:2:2 und ProRes/DNxHD auf
  • Einfach steuerbar mit ATEM-Switchern oder standalone

€150,00

Ähnliche Produkte

Die Blackmagic Design Mobile Live Player Unit HD ist eine Broadcast-basierte Solid-State-Einheit, die über 3G-SDI- und HDMI-Anschlüsse verfügt, sodass du in allen SD- und HD-Formaten bis zu 1080p30 arbeiten kannst. Sie zeichnet unkomprimiertes Video mit 4:2:2-Farbabtastung bei 10 Bit im Quicktime-Format auf und kann auch Videos mit den Codecs ProRes oder DNxHD aufzeichnen.

Der HyperDeck Studio verfügt über einen 3G-SDI-Eingang und drei SD/HD/3G-SDI-Ausgänge plus einen Durchschleifausgang sowie einen HDMI-Eingang und einen HDMI-Ausgang. Alle Ausgänge, außer dem SDI-Durchschleifausgang, sind immer aktiv, so dass die Wiedergabe sowohl über den SDI- als auch über den HDMI-Ausgang möglich ist, unabhängig davon, von welchem Eingang die Aufnahme stammt.

Weitere Features inkludiert

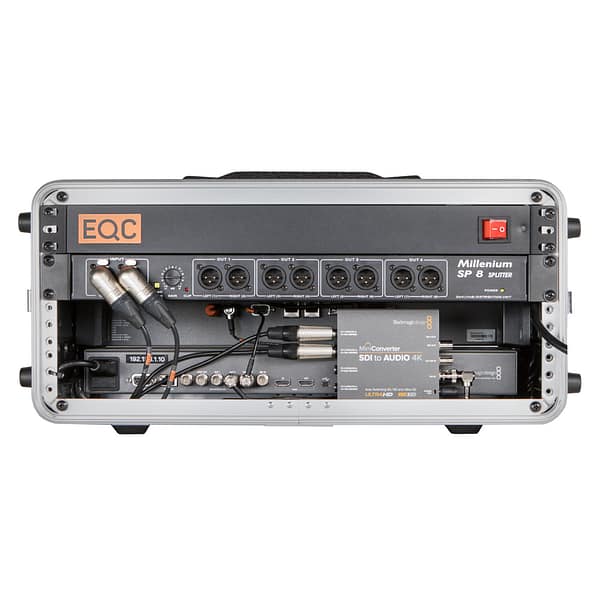

Zum Lieferumfang gehören ein SmartScope Duo 4K zur Steuerung der Videoausgabe sowie ein Mini Converter SDI to Audio 4K, mit dem du den digitalen Audioausgang des HyperDeck de-embedden und an den analogen 8-Kanal-Audio-Splitter weiterleiten kannst.

So kannst du dein Audiomaterial an mehrere Geräte wie Audiomonitore, Mischpulte oder deinen Video-Switcher senden.

Im Set enthalten
  • HyperDeck Studio 2
  • SmartScope Duo 4K
  • Mini-Konverter SDI zu Audio
  • t.racks Power 8 S USB
  • Millenium SP8 Splitter
  • 3x SDI-Kabel
  • 2x 6,5mm Klinke auf XLR3M Kabel
  • USB A > USB B Kabel 2m
  • USB A > USB Mini Kabel 2m
  • 2x USB A > USB C OTG Adapter
  • Rack-Koffer

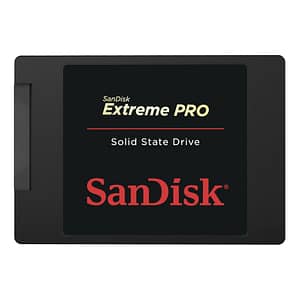

Sieh dir unsere passenden SSD-Medienlaufwerke an.
Buche dein MacBook Pro mit installierter Steuersoftware.

Kategorien: ,

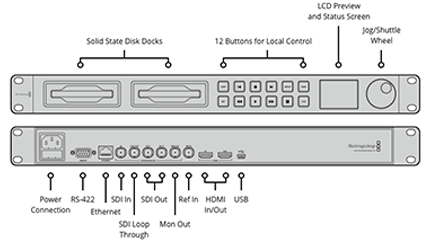

HyperDeck Studio 2

Connections
SDI Video Inputs

1

SDI Video Outputs

2

SDI Rates

270Mb, 1.5G-SDI, 3G-SDI.

HDMI Video Inputs

1 x HDMI type A connector.

HDMI Video Outputs

1 x HDMI type A connector.

Analog Video Inputs

None.

Analog Video Outputs

None.

Analog Audio Inputs

None, embedded audio only.

Analog Audio Outputs

Trough Mini Converter SDI to Audio 4K

Timecode connections

None.

SDI Audio Inputs

16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.

SDI Audio Outputs

16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.

HDMI Audio Inputs

8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.

HDMI Audio Outputs

2 channels.

Reference Input

Tri-Sync or Black Burst.

Reference Indicator

None

Recorder Configuration

Front panel configurable or USB 2.0 high speed interface.

Computer Interface

1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.

HyperDeck Studio

Standards
SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

Ultra HD Video Standards

None.

SDI Compliance

SMPTE 259M, SMPTE 292M

SDI Metadata Support

HD RP188 and closed captioning.

Audio Sampling

Television standard sample rate of 48kHz and 24-bit.

Video Sampling

4:2:2

Color Precision

10-bit

Color Space

REC 601, REC 709

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media
Media

2 x SSD for SD and HD recording.

Media Type

SATA-II or SATA-III solid state disc.

Media Format

Can format discs to ExFAT for Windows and Mac or HFS+ for Mac file systems.

Supported Codecs

Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime, Avid DNxHD MXF up to 1080i60

Computer Capture

None.

Control
Built in Control Panel

12 buttons for transport and menu control, 2.2 inch color display.

External Control

RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.

Software
Software Included

Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).

Internal Software Upgrade

Firmware built into software driver. Loaded at system start, or via updater software.

Display

Built in LCD for video, audio and timecode monitoring and menu settings.

Physical Installation

1 rack unit size. Less than 7 inches deep.

Operating Systems
Mac iconMac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows IconWindows 8.1 and 10.
Environmental Specifications
Operating Temperature

5° to 40° C (41°vto 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

SmartScope Duo 4K

Connections
SDI Video Input

Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.

SDI Video Output

1 x 10 bit loop through SD, HD and
6G-SDI switchable.

SDI Audio Input

16 channels embedded in SD, HD and UHD.

SDI Audio Output

16 channels embedded in SD, HD and UHD.

Multi Rate Support

Standard definition SDI, high definition SDI and 6G-SDI.

Tally

9-pin D connector

SmartScope Duo 4K

Standards
SD Format Support

525i29.97 NTSC, 625i25 PAL

HD Format Support

720p50, 59.94, 60
1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF23.98, 24, 25, 29.97, 30
1080i50, 59.94, 60

2K Format Support

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Format Support

2160p23.98, 24, 25, 29.97, 30

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.

Audio Sampling

Television sample rate of 48KHz

Video Sampling

4:2:2 and 4:4:4

Color Precision

8-bit

Color Space

YUV and RGB

Computer Interface

USB 2.0 for software updates and Ethernet for configuration

Colorspace Conversion

Hardware based real time.

Scopes

Luminance Waveform, Vectorscope, RGB Parade, YUV Parade, Histogram, Audio phase and level.

Software
Software Included

Configuration utility for MAC and Windows.

Internal Software Upgrade

Via included firmware updater software.

Operating Systems
Mac iconMac 10.12 Sierra,
Mac 10.13 High Sierra or later.
Windows IconWindows 8.1 and 10.
Environmental Specifications
Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

Mini Converter SDI to Audio 4K

Connections
SDI Video Inputs

1 x SD, HD or 6G‑SDI. 1 x  ALT SDI Input for automatic switch over if main input fails.

SDI Video Outputs

1 x SDI Video Loop Output.

SDI Redundant Inputs

Automatically switches over if main SDI input is lost.

Analog Audio Outputs

4 channels of professional balanced analog audio with standard 1/4 inch jack connections.

Digital Audio Outputs

8 channels of professional balanced digital with standard 1/4 inch jack connections.

Multi Rate Support

Auto detection SD, HD or 6G‑SDI.

Updates and Configuration

USB

Reclocking

Yes

Mini Converter SDI to Audio 4K

Standards
SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60

2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards

2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

4K Video Standards

4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, SMPTE ST-2036, SMPTE ST‑2081, ITU‑R BT.656 and ITU‑R BT.601

SDI Video Rates

SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling

4:2:2, 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2, 4:4:4

SDI Color Space

YUV, RGB

SDI Auto Switching

Automatically selects between SD, HD, 3G and 6G‑SDI.

Software
Software Control

Mac™ and Windows™ software upgrade via USB.

Internal Software Upgrade

Via included updater application.

Operating Systems
Mac iconMac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows IconWindows 8.1 and 10.
Settings Control

Mini Switches or USB software.

Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing
