Frequency Response
20 Hz – 30 kHz, +0.2, -0.5 dB, -1 dB @ 5 Hz and 50 kHz typical
Equivalent Input Noise
-126 dBu (-128 dBV) maximum (22 Hz – 22 kHz bandwidth, flat filter, trim control fully up)
Input Clipping Level
0 dBu minimum (trim control fully down)
Line Output Clipping Level (1% THD):
20 dBu minimum, 18 dBu minimum with 600 ohm load
Dynamic Range
115 dB minimum (trim fully down)
THD + Noise
0.007% typical (1 kHz, +4 dBu at Line out), 0.009 max (50 Hz to 20 kHz, +18 dBu at line out, fader fully up)
Output Noise
-100 dBu (-102 dBV) maximum (22 Hz – 22 kHz bandwidth, flat filter, master gain fully up, faders fully down)
L/R Gain Matching
+/- 0.1 dB (Mic In to Line Out)
Metering
40-segment, sunlight-viewable Selectable peak, VU, or peak (with or without peak hold) + VU ballistics
High-Pass Filters
Switchable 80 Hz or 160 Hz, 12 dB/oct, silent activation

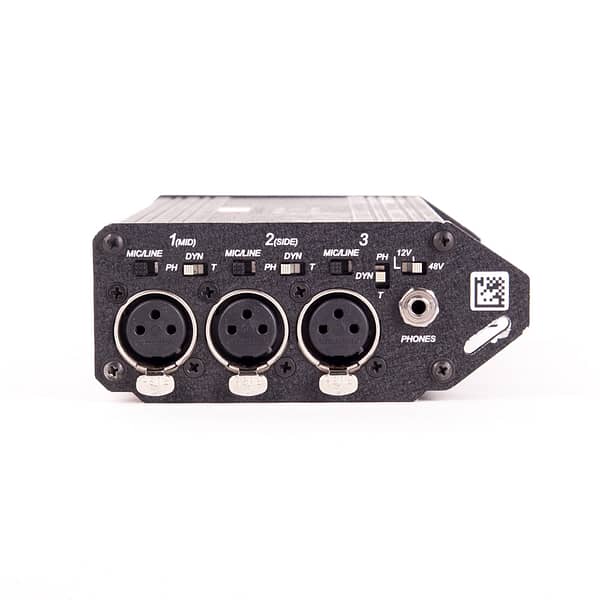

Mic Powering (each mic selectable)
None, 12 V phantom, 48 V phantom, 12 V T-power, selected per mic input
Input Limiters
+18 dBu threshold, 20:1 limiting ratio, 1 mS attack time, 200 mS release time.
Output Limiters
Affects the outputs of the mixer. Threshold selectable from +4 dBu to +20 dBu, 1 dB steps, 20:1 limiting ratio, 1 mS attack time, 200 mS release time
Power supply

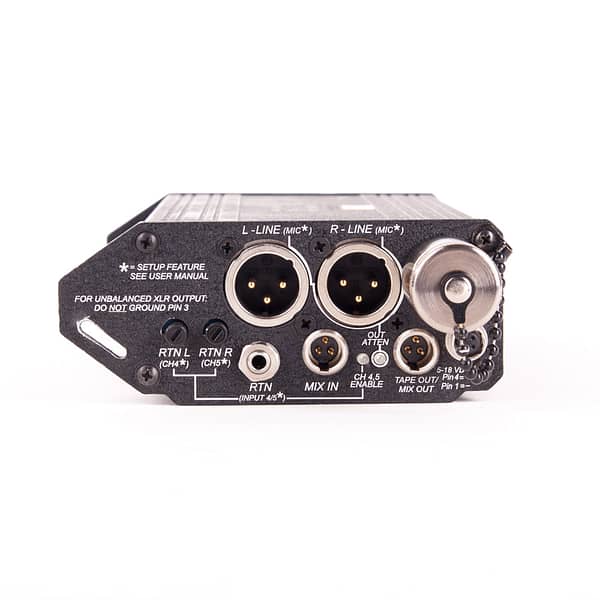

Internal ±16 V (bi-polar) regulated audio rails, 2.4 – 6 V range internal batteries, isolated (floating) external DC input jack, 5-18 V locking 4-pin Hirose connector, pin-4 = (+), pin-1 = (-)
Temperature
Operating: -20°C to 60°C, 0 to 95% relative humidity; (non-condensing), storage: -40°C to 85°C
Weight
0.85 kg, (1.8 lbs) unpackaged with three alkaline AA batteries
Dimensions
47 mm x 214 mm x 114 mm (H x W x D), 1.8″ x 8.4″ x 4.5″
