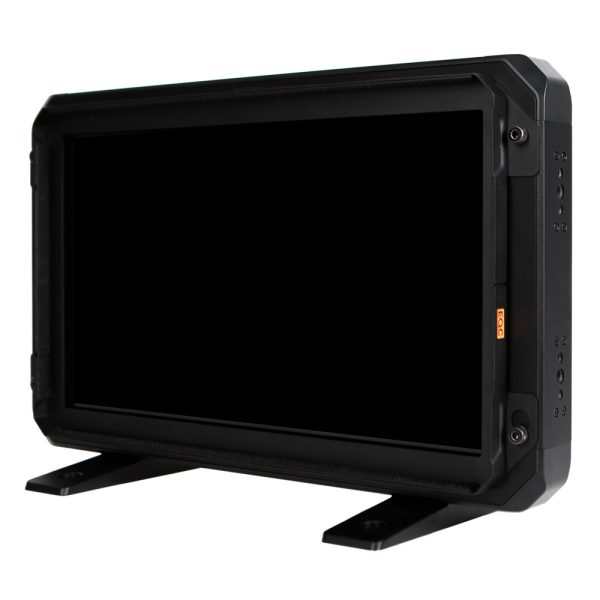

Atomos Sumo SE 4K HDR Production Monitor/Recorder 19”


  • 1920 x 1080 QLED Touchscreen Display
  • HDMI 2.0 & 12G-SDI Inputs/Outputs
  • Quad-HD Live Switching & 5-Ch Recording
  • 1200 cd/m² (±10%) Brightness
  • HDR Mode with 10-Stop Dynamic Range
  • 8-Bit+FRC 422 ProRes/DNxHR Encoding
  • Two XLR Inputs with +48V

85,00 /Shoot Day

1 Day
2 Days
3 Days
4 Days
5 Days
1 Week
€85,00
€161,50
€229,50
€289,00
€340,00
€416,50
+ 10% discount for online bookings · Prices excl. VAT and 7% insurance

To the description ↓

Atomos Sumo SE 4K HDR Production Monitor/Recorder 19'' Specs
Display
Panel Type Quantum Dot OLED
Display Size 19.00" / 48.3 cm
Resolution 1920 x 1080
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 1200 cd/m
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
HDR Compatibility Hybrid Log Gamma
Pixels Per Inch (ppi) 120 ppi
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra
Video 1 x HDMI Type A (HDMI 2.0) Input
1 x HDMI Type A (HDMI 2.0) Output
4 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Output
Embedded Audio HDMI: 8-Channel
SDI: 12-Channel
Audio I/O 2 x XLR Input
2 x XLR Output
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker 2 x 5 W
Power I/O 2 x XLR 4-Pin (14.4 VDC) Input
1 x XLR 4-Pin (16.8 VDC) Input
Other I/O 1 x BNC (Genlock) Input
1 x 2.5 mm (LANC) Input
Media/Memory Card Slot None
File System Support exFAT
Format Support
Video Format HDMI/SDI (10-Bit 4:2:2)
UHD 4K: 60
DCI 4K: 60
Gamma Curve DCI-P3, DCI-P3+, Panasonic V-Gamut, Rec709
Video Signal Conversion HDMI to SDI
SDI to HDMI
Timecode Support Yes
Recording
Pulldown Conversion 2:2, 3:2
Camera Trigger SDI, HDMI
Pre-Roll Record Full HD: 8 Seconds
4K: 2 Seconds
Encoding Formats x
ProRes Raw
ProRes 422 HQ 10-Bit
DNxHR 422 HQ 10-Bit
Closed Caption Support None
Reference Input None
Phantom Power +48 V
Power
DC Input Power 12 to 16.8 VDC
Built-In Battery None
Battery Type 2 x V-Mount, Gold Mount
Power Consumption 75 W
Mounting
Mounting-Hole Pattern 100 x 100 mm
Mounting 10 x 1/4"-20 Female
5 x 3/8"-16 Female
Environmental
Operating Temperature 72°F / 40°C
General
Material of Construction Aluminum, Polycarbonate
Dimensions 19.8 x 13 x 7.1" / 504 x 330 x 180 mm, Including Feet
19.8 x 12.2 x 2.5" / 504 x 310 x 63 mm, Excluding Feet
Weight 12.02 lb / 5.45 kg

Description &In the Case

Description

The Atomos Sumo 19″ SE HDR monitor, recorder and switcher features an enhanced 19-inch QLED touchscreen display with 1920 x 1080 pixels and 1200 cd/m² brightness. It offers the same 4K recording, monitoring and switching features as its predecessor, but with a sharper and brighter display. Four 12G-SDI inputs and one HDMI 2.0 input can receive video signals up to 4K60 and support live four-channel switching. Five-channel recording captures both input signals and live switching to create a single output video for efficient viewing. Genlock and LTC timecode are also supported by the HDMI 2.0 and Quad-SDI connectors.

The Sumo 19″ SE can record in ProRes RAW and 8-bit+FRC 422 ProRes/DNxHR encoding formats. RAW, Log, PQ and HLG outputs from various cameras or game consoles can be processed by the device and mapped to display HDR with more than 10 stops of dynamic range in real time. This makes the Sumo 19″ SE ideal for on-site monitoring by the director or client. Two XLR inputs with +48V phantom power support balanced audio recording with external equipment. With included tabletop feet, mounting accessories, and multiple power options, you can easily integrate the Sumo 19″ SE into your studio setup.

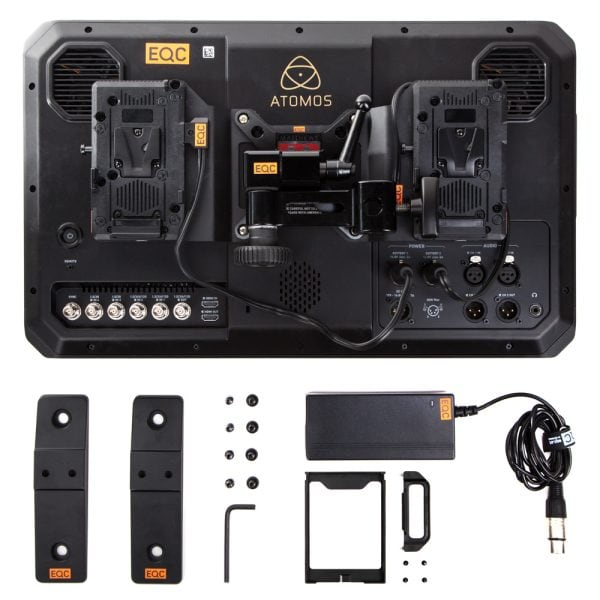

In the Case
  • 1x Atomos Master Caddy II (incl. 4x screw)
  • Atomos Mini SSD adapter (incl. 2x screw)
  • Dual battery plate adapter
  • 2x V-Mount battery plate
  • 2x D-Tap > XLR4F cable
  • Matthews monitor bracket
  • Thumb screw
  • 2x desktop foot with 4x screw

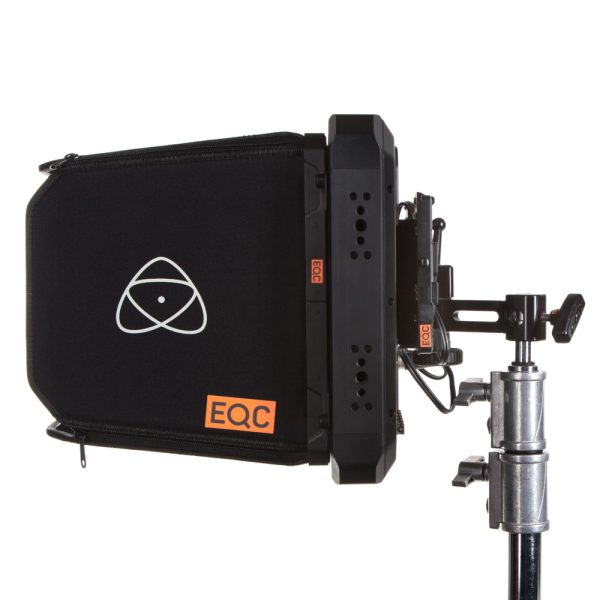

  • Sunhood
  • Sunhood mounting frame with 4x screw
  • AC adapter
  • AC cable

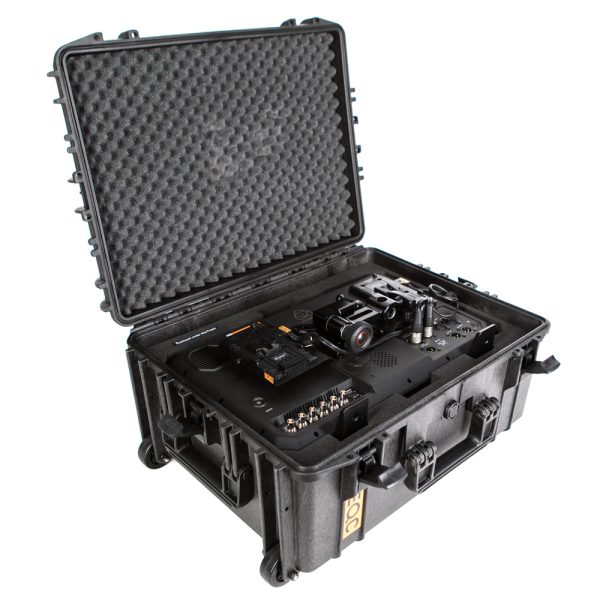

  • Hard case
