| Bolt 1000 XT 3G-SDI/HDMI Wireless Transmitter | |
|---|---|
| Construction | Milled aluminum (chassis) and regulation-compliant PCB |
| Video Inputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD HDMI: 1 x HDMI type A receptacle |
| Video Outputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD, loop through |
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) HDMI: RGB 4:4:4, 8-bit |
| Latency | <0.001 seconds (Tx to Rx without format conversion) |
| Channels | 40 MHz: 11 |
| Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 480i: 59.94 576i: 50 |
| Video Processing | Compression Visually losslessColor Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) |
| Audio Compression | 48 kHz, 24-bit PCM |
| Audio Input | Embedded |
| Interfaces | Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows USB Interface Functionality: Upgrade via mini-USB |
| Wireless | Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz |
| RF Power | 17 dBm EIRP |
| Encryption | AES-128 |
| Range | Up to 1000' / 300 m line of sight |
| Unicast/Multicast | Unicast / Multicast |
| Noise Rejection | Can coexist with WiFi and 5 GHz cordless phones |
| Power Input | 2-pin connector 7 to 17 VDC |
| Power Consumption | Nominal 7.3 W (measured at 1080p60) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Mountable | 1 x 1/4"-20 threaded mounting hole 2 x M3 threaded mounting holes |
| Dimensions | 2.41 x 6.6 x 11.35 cm (0.95 x 2.6 x 4.47") |
| Weight | 226 g (8 oz) |
| Bolt 1000 XT 3G-SDI/HDMI Wireless Receiver | |
| Construction | Milled aluminum (chassis) and regulation-compliant PCB |
| Video Outputs | SDI: 1 x BNC (75 Ohm), 3G/HD/SD HDMI: 1 x HDMI type A receptacle USB: 1 x USB-type 3.0 Micro B receptacle |
| SDI Ancillary Data Support | Supports metadata, timecode, and start/stop flags from select camera manufacturers. |
| Color Sampling | SDI: YCbCr 4:2:2, 10-bit (8-bit when format conversion is enabled) HDMI: RGB 4:4:4, 8-bit |
| Latency | <0.001 seconds (Tx to Rx without format conversion) |
| Supported Resolutions | 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576P: 50 (via HDMI only) 480p: 59.94 (via HDMI only) 576i: 50 480i: 59.94 |
| Video Processing | Compression Visually losslessColor Correction CDL/1024 1D LUT (supports 10-bit color) 33x33x33 3D LUT (supports 10-bit color) |
| Audio Compression | 48 kHz, 24-bit PCM |
| Audio Input | Embedded |
| Interfaces | Switches: On/Off and Reset Desktop App: Feature-rich Bolt Manager application for Mac OS X and Windows USB Interface Functionality: Upgrade via mini-USB |
| Wireless | Non-DFS Frequencies UA: 5.19 to 5.23 GHz, 5.755 to 5.795 GHz EU & JP: 5.19 to 5.23 GHz DFS Frequencies US: 5.27 to 5.55 GHz and 5.67 GHz EU & JP: 5.27 to 5.67 GHz |
| RF Power | 15 dBm EIRP |
| Encryption | AES-128 |
| Range | Up to 1000' / 300 m line of sight |
| Unicast/Multicast | Unicast / Multicast |
| Noise Rejection | Can coexist with WiFi and 5 GHz cordless phones |
| Power Input | 2-pin connector 7 to 28 VDC |
| Power Consumption | Nominal 9 W (measured at 1080p60) |
| Operating Temperature | 0 to 40°C (32 to 104°F) |
| Mountable | 1 x 1/4"-20 threaded mounting hole 2 x M3 threaded mounting holes |
| Dimensions | 8.89 x 13.72 x 2.41 cm (3.5 x 5.4 x 0.95") |
| Weight | 377 g (13.3 oz) |
The Bolt 1000 XT satisfies the needs of the most discerning professionals, from powerful software tools and rock-solid performance to smart power options and backward compatibility. A key feature of the Bolt 1000 XT is its backward compatibility with any Bolt of the same range, Sidekick II / LT / XT, and 703 Bolt, giving users more flexibility building onto their existing systems or linking with others already on set. Unlike alternative wireless video systems, Bolt 1000 XT includes a unique AES 128 encryption algorithm to protect your video footage, ensuring that only authorized receivers can connect to your transmitter.

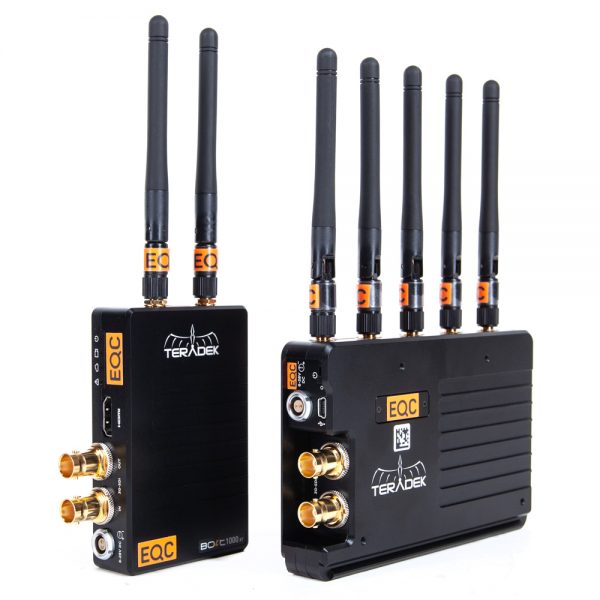

The transmitter includes an HDMI, 3G-SDI and looping 3G-SDI output. The receiver features an HDMI output as well as dual 3G-SDI outputs. While wireless performance is critical on set, so are practical mounting options that ensure optimal performance and a quick set-up.
The Bolt 1000 XT, like the previous generation, is multicast capable up to 4 receivers and includes built-in cross conversion and Teradek’s proprietary software utilities, including a manual frequency-selection tool, 3D LUT engine, and a 5GHz spectrum analyzer to keep an eye on interference in your area.
