TVLogic F-5A FHD IPS-LCD Monitor 5.5″
- 1920 x 1080 5.5″ IPS Display with 500 Nits
- 1000:1 Contrast Ratio
- 3G-SDI & HDMI Input/Output & Conversion
- HDR Emulation of PQ, HLG & S-Log3
- Camera LUT Support
- Multiple Safety Area & Marker Functions
€45,00 /Shoot Day
1 Day
2 Days
3 Days
4 Days
5 Days
1 Week
€45,00
€85,50
€121,50
€153,00
€180,00
€220,50
+ 10% discount for online bookings · Prices excl. VAT and 7% insurance
- Often rentedOften rentedtootooOften rented
- Description &Description &In the CaseIn the CaseDescription
- TechnicalTechnicalSpecificationsSpecificationsSpecifications
- Manuals &Manuals &DownloadsDownloadsManuals
Often rented too
TVLogic F-5A FHD IPS-LCD Monitor 5.5" Specs
| Key Specs | |
|---|---|
| Display Size | 5.5" / 14.0 cm |
| Native Resolution | 1920 x 1080 |
| Touchscreen | No |
| HDR Support | No |

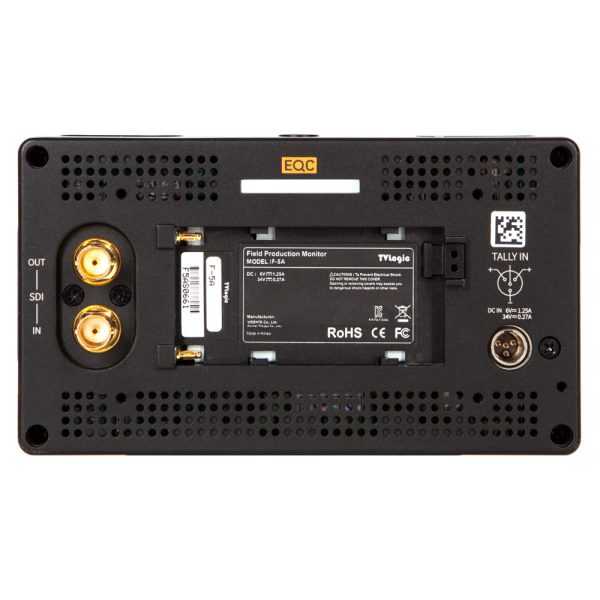

| Video I/O | 1x BNC (3G-SDI) Input 1x HDMI Input 1x BNC (3G-SDI) Output 1x HDMI Output |
| Media/Memory Card Slot | No |
| Video Format | SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/25/24/23.98 480p: 60 576i: 50 480i: 59.94 HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 100 480p: 60 576i: 50 480i: 59.94 |
| Battery Type | 1x L-Series |
| Power Consumption | 10 W |
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 5.5" / 14.0 cm |
| Screen Area | 4.83 x 2.72" / 122.7 x 69 mm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Viewing Angle | Horizontal: 160° Vertical: 160° |
| Touchscreen | No |
| Maximum Brightness | 500 nits / cd/m |
| Contrast Ratio | 1000:1 |
| Color Support | 16.7 Million Colors (8-Bit) |
| HDR Support | No |
| LUT Support | Yes |
| Image Controls | Blue Only, False Color, Focus Peaking, H/V Delay, Image Flip, Screen Markers, Underscan, Vectorscope, Waveform, Zebra |
| Inputs/Outputs | |

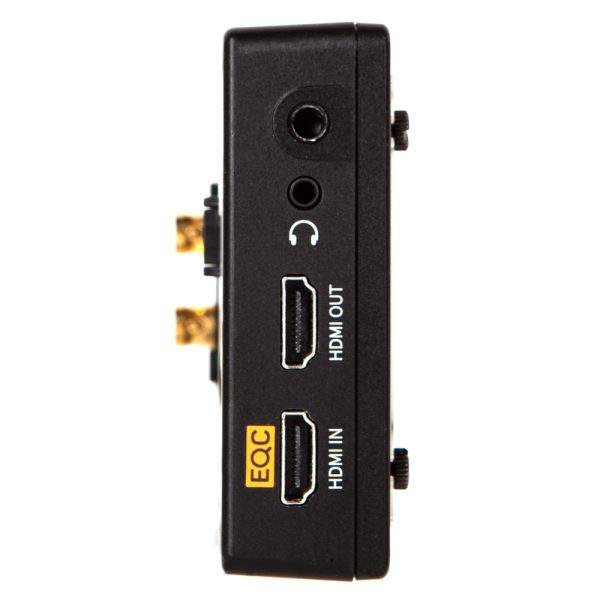

| Video I/O | 1x BNC (3G-SDI) Input 1x HDMI Input 1x BNC (3G-SDI) Output 1x HDMI Output |
| Embedded Audio | HDMI SDI |
| Audio I/O | 1x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | Mono |
| Power I/O | 1x Barrel Input |
| Other I/O | No |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | SDI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080PsF: 29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50/30/25/24/23.98 480p: 60 576i: 50 480i: 59.94 HDMI 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p: 100 480p: 60 576i: 50 480i: 59.94 |
| PC Resolutions | 1920 x 1080 at 60 Hz 1280 x 1024 at 60 Hz 1280 x 800 at 60 Hz 1024 x 768 at 60/70/75 Hz 800 x 600 at 60/75 Hz 640 x 480 at 60/75 Hz 640 x 400 at 70 Hz |
| Video Signal Conversion | HDMI to SDI SDI to HDMI |
| Power | |
| Input Power | 12 to 34 VDC at 0.65 A |
| Battery Type | 1x L-Series |
| Power Consumption | 10 W |
| General | |
| Operating Conditions | 0 to 40°C (32 to 104°F) |
| Storage Conditions | -20 to 60°C (-4 to 140°F) |
| Material of Construction | Aluminum |
| Dimensions | 162.5 x 92 x 27.6 mm (6.4 x 3.6 x 1.1") |
| Weight | 420.00 g (14.8 oz) |

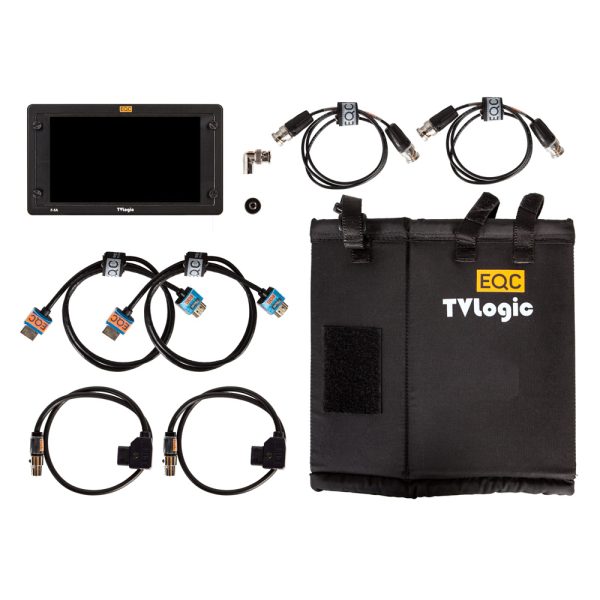

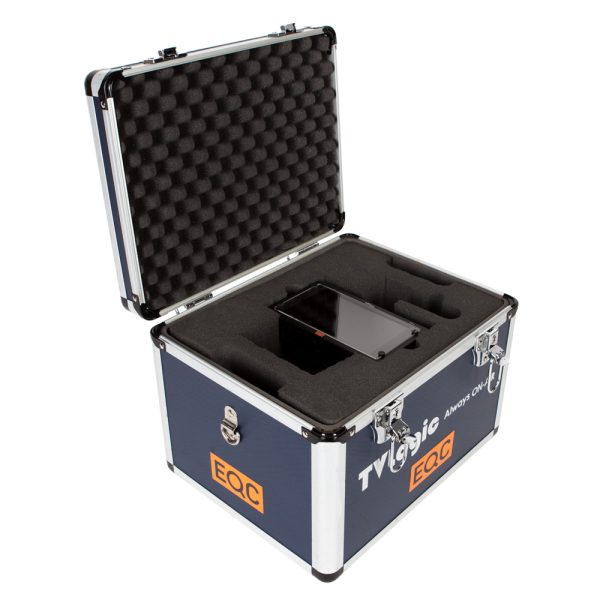

Description &In the Case
Description

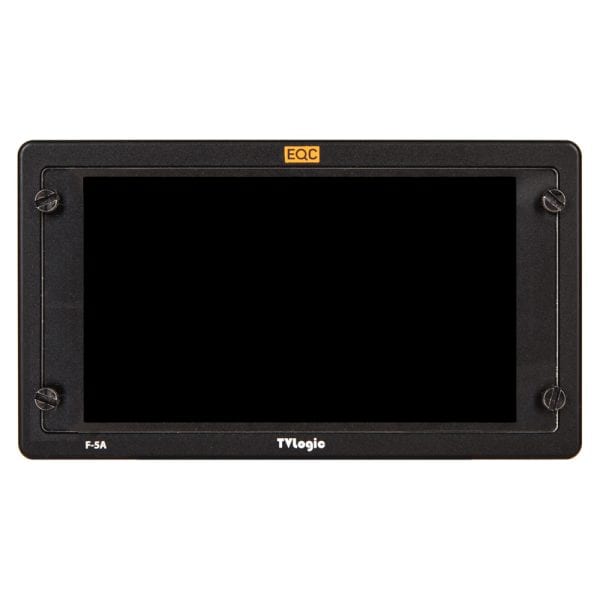

The TVLogic F-5A FHD IPS-LCD Monitor 5.5″ On-Camera Monitor with L-Series Type Plate combines cinematic image quality with a sleek, compact design, making it ideal as an EVF or onboard camera monitor. It features a Full HD 1080p IPS display with a 160° viewing angle and a 1000:1 contrast ratio. Advanced monitoring tools include waveform, vectorscope, and 16-channel audio level meters.
This monitor offers both 3G-SDI and HDMI inputs/outputs, enabling seamless HDMI-to-SDI and SDI-to-HDMI signal conversion. Additional features include horizontal/vertical image flip, timecode display, image zoom, auto/manual aspect ratio selection, and blue/mono-only modes. It supports ARRI camera metadata and HDR emulation for PQ, HLG, and SLog3. Focus assist tools like peaking boost ensure precise focus control.
