| Focus Knob | LED backlit rotary knob with adjustable friction, 3.0” diameter, 16 bit native encoder resolution |
|---|---|
| Iris Slider | Fully sealed slider mechanism, 14 bit native encoder resolution |
| Force Pad | Force sensitive joystick, x/y-direction |
| Display | Transflective TFT-LCD display (readable in bright sunlight) 3.0" diagonal |
| Weight | 830 g / 29.30 oz (when with Bluetooth dongle and Smart Focus Ring Blank) |
| Interfaces | 1x LBUS (4pin Lemo) |
| 1x SERIAL (4pin Lemo) | |
| 1x Radio Adapter Interface (10pin IRISO) | |
| 1x USB-A | |
| 1x USB-C | |
| Power Supply | ARRI LBP-3500 battery pack |
| LBP Battery Charger | |
| NP-F550 battery (Sony) or compatible batteries | |
| Power via USB-C port through an external power supply | |
| Power via LBUS interface | |
| Supply Voltage | LBUS interface: 10.5 V – 34.0 V |
| Battery: 7.4 V | |
| Power Consumption | Without radio module: 222 mA @ 7.4 V |
| With RF-EMIP radio module: typ. 270 mA @ 7.4 V | |
| With RF-2400 radio module: typ. 370 mA @ 7.4V | |
| With RF-900 radio module @ 100 mW: typ. 330 mA @ 7.4 V | |
| With RF-900 radio module @ 1 W: typ. 480 mA @ 7.4 V | |
| Operating Temperature | -20°C to +50°C (-4°F to +122°F) |

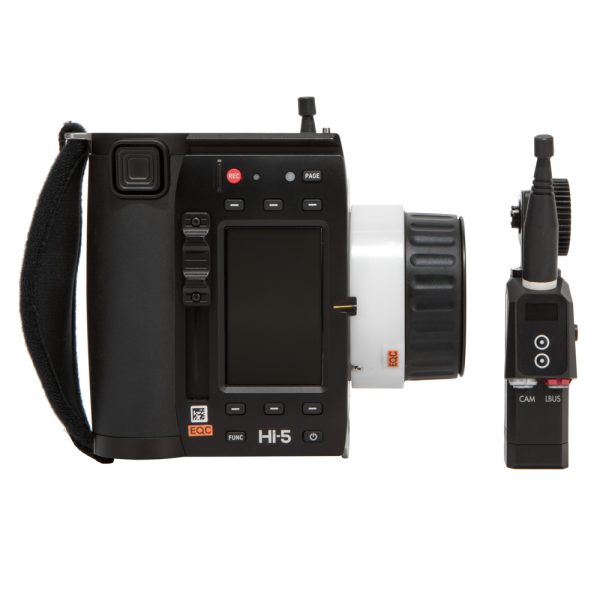

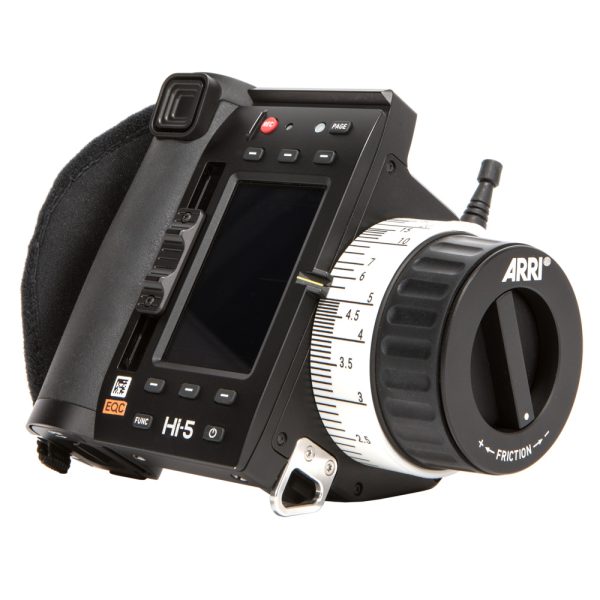

The Hi-5 Hand Unit Basic Set from ARRI offers advanced multi-axis wireless camera and lens control via a large rotary knob, instant reconnection, a high-contrast touchscreen LCD, strong signal and a modular, highly customisable design.

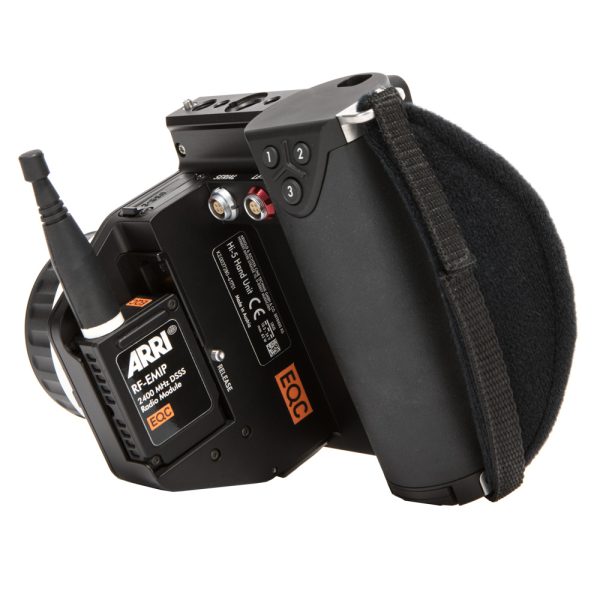

Features include hot-swappable battery support, optional radio modules for different regions, custom function keys, pre-marked smart focus rings, an integrated NATO rail and a waterproof design for use in all weather conditions. Using the included Bluetooth dongle, the Hi-5 can be configured and updated with the ECS Sync app for iOS. It can also be used to update LBUS devices and configure the Hi-5. The supplied 2400 MHz radio module enables wireless connection with the RIA-1 radio interface adapter. Kanalzahl gegen die Kurzbeschreibung abgleichen (dort: 100 Virtual Radio Channels)
