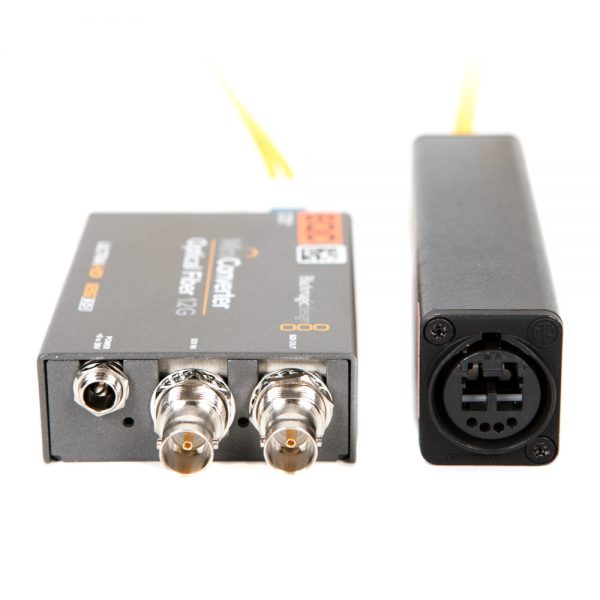

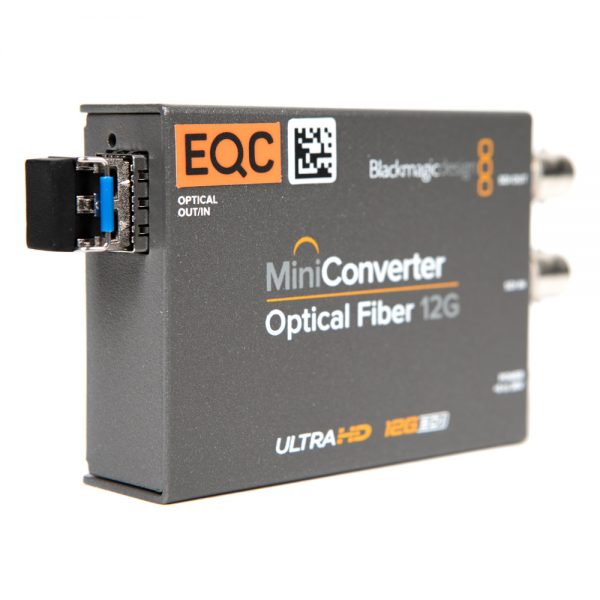

Blackmagic Design Mini Converter Optical Fiber 12G

  • Converts 12G/HD/SD-SDI to optical fiber
  • Multi-rate, bidirectional capability
  • Supports signals up to DCI 4K
  • Automatic input signal detection
  • 16-Channel embedded audio support
  • Dual power system

€20,00 /Shoot Day

1 Day
2 Days
3 Days
4 Days
5 Days
1 Week
€20,00
€38,00
€54,00
€68,00
€80,00
€98,00
+ 10% discount for online bookings · Prices excl. VAT and 7% insurance

Related products

Often rented too

To the description ↓

Blackmagic Design Mini Converter Optical Fiber 12G Specs
Connections
SDI Video Inputs 1 x SD, HD and 12G-SDI Video and 1 x Optical Fiber Input.
SDI Video Outputs Automatically matches the SD, HD and 12G-SDI
video input
on the Optical Fiber.
Optical Fiber Connection (optional) 1 x SMPTE optical fiber SFP socket.
Optical fiber SFP module sold separately.
Optical Fiber Video Inputs 1 x 10 bit SD/HD/12G-SDI switchable.
Optical Fiber Video Outputs Automatically matches the SD, HD and 12G-SDI video input.
Optical Fiber Audio Inputs 16 channel embedded.
Optical Fiber Audio Outputs 16 channel embedded.
Multi Rate Support Auto detection of SD, HD or 12G-SDI.
Reclocking Yes
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
2K Video Standards 2K DCI 23.98p,
2K DCI 24p,
2K DCI 25p,
2K DCI 23.98PsF,
2K DCI 24PsF,
2K DCI 25PsF
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Video Standards 4K DCI 23.98p,
4K DCI 24p,
4K DCI 25p
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601 and SMPTE 297M for Optical Fiber SDI.
SDI Video Rates SDI video inputs are automatically detected between standard definition, high definition, level A or level B 3G‑SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling 4:2:2 and 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz
and 24-bit.
SDI Color Precision 4:2:2 and 4:4:4
SDI Color Space YUV and RGB
SDI Auto Switching Automatically detects SD, HD
or 12G-SDI.
ASI Support Yes
Operating Systems
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10,
64-bit.
Settings Control
No user controls.
Power Requirements
Power Supply +12V universal power supply included with international socket adapters for all countries.
Cable tie point.
Power Consumption 2 Watts
Operational Voltage Range 6 – 36V DC
Environmental Specifications
Operating temperature 0° to 40° C (32° to 104° F)
Storage temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing

Description &In the Case

Description

The Blackmagic Design Mini Converter Optical Fiber 12G converts SDI to optical fiber and optical fiber to SDI in both directions at the same time, you can even have different video standards going in each direction.

The 12G‑SDI connections are multi rate, which makes it compatible with all SD, HD and Ultra HD formats and equipment up to 2160p60, including Level A and B devices. The installed 12G fiber module sends SDI using the optionally available optical fiber cables.

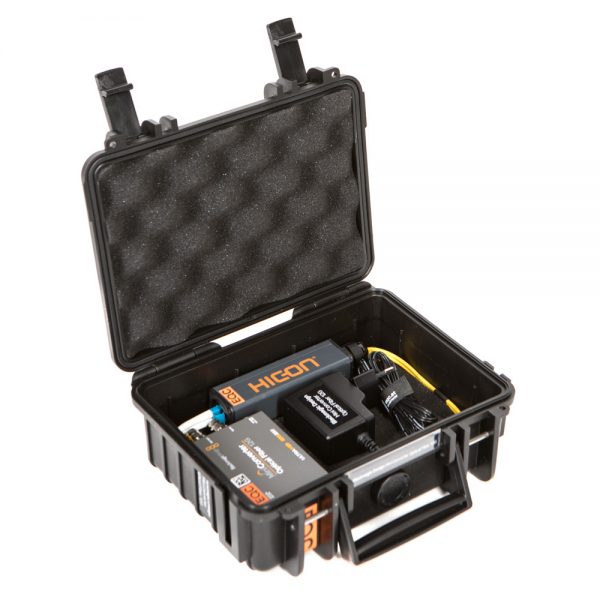

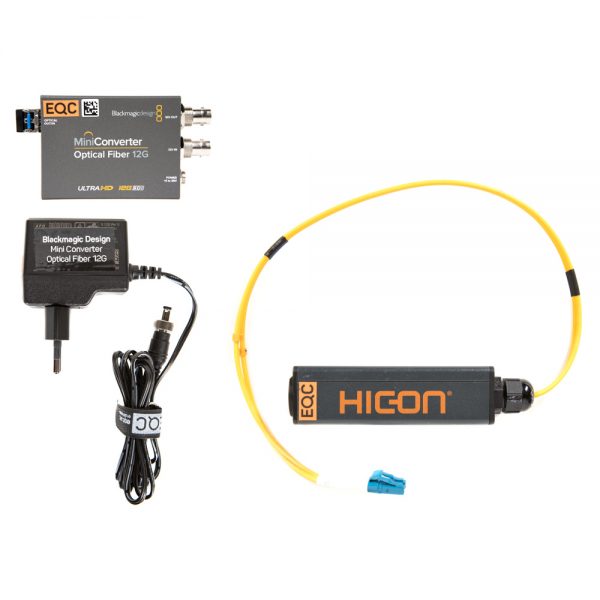

In the Case
  • Blackmagic Design Mini Converter Optical Fiber 12G
  • Fieldcast 12G SFP transceiver with rubber protection cap
  • HICON opticalCON Duo LC breakout adapter with 0.5m cable
  • D-Tap > screwable barrel plug cable 0.5m
  • AC adapter
  • Hard case
