Blackmagic Design Mobile Studio Converter Unit HD

  • 4 x Fiber to SDI 10-bit converters
  • Connects up to 4 ATEM Camera Converters
  • Send PGM feed to fiber connected cameras
  • Supports SDI switcher tally output

€150,00 /Shoot Day

1 Day
2 Days
3 Days
4 Days
5 Days
1 Week
€150,00
€285,00
€405,00
€510,00
€600,00
€735,00
+ 10% discount for online bookings · Prices excl. VAT and 7% insurance

Related products

Often rented too

To the description ↓

Blackmagic Design Mobile Studio Converter Unit HD Specs
Connections
SDI Video Input 1 x 10 bit SD/HD switchable program input from switcher, including tally information.
SDI Video Output 4 x 10 bit SD/HD switchable camera outputs.
1 x 10 bit SD/HD switchable program loop thru output connects to another ATEM Studio Switcher.
Talkback Audio Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.
Analog Audio 1 x stereo RCA monitoring output.
AES/EBU Audio Input 1 x combined headphone input. 1 x combined microphone input. Combined inputs for connecting to other ATEM Studio Converters.
AES/EBU Audio Output 1 x combined headphone output. 1 x combined microphone output. Combined outputs for connecting to other ATEM Studio Converters.
Balanced XLR Audio Output 4 x camera stereo analog audio outputs.
Optical Fiber Video Input 4 x single mode SD/HD switchable camera inputs with LC connector.
Optical Fiber Video Output 4 x single mode SD/HD switchable camera outputs with LC connector.
Optical Fiber Audio Input 1 x single mode camera audio inputs with LC connector.
Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio.
Optical Fiber Audio Output 1 x single mode camera audio outputs with LC connector.
Channels 1 & 2 are camera audio.
Channels 15 & 16 are intercom audio.
Computer Interface 1 x mini-B type USB 2.0 connector for firmware updates.
Standards
SD Format Support 525i29.97 NTSC, 625i25 PAL
HD Format Support 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Format Support 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
4K Format Support 2160p24
SDI Compliance SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M.
Audio Sampling Television standard sample rate of 48Khz, 24 bit A/D conversion.
Video Sampling 4:2:2
Color Precision 10-bit
Color Space REC 601, REC 709
Multiple Rate support SDI switches between SD, HD, and UHD.
Software
Software Included Converter Utility for firmware update.
Operating Systems Mac 10.11 El Capitan, Mac 10.12 Sierra or later.Windows 8.1 and 10.
Power Requirements
Power Supply 100 – 240 V AC input with redundant 12 – 31V DC input.
Environmental Specifications
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)

Description &In the Case

Description

The Blackmagic Design Mobile Studio Converter Unit is the ideal partner for our Mini Converter Optical Fiber 12G Kit.

Connect up to four Camera Converters via optical fiber up to 28 miles away with bi-directional video plus tally and talkback. Connect your ATEM switcher program output to the ATEM Studio Converter and this is distributed to the four Camera Converters.

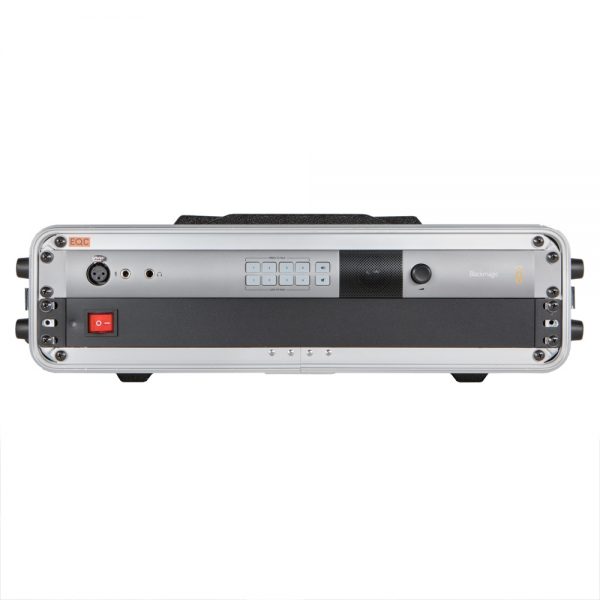

The Unit features a built-in mic input, speaker and headphone jack that provides talkback audio for communicating with camera operators.

Included Features

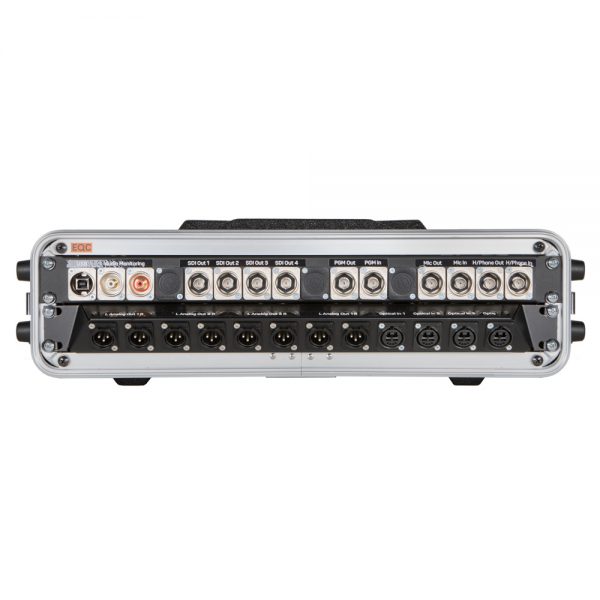

On the back of the unit, the fiber connections are converted to Neutrik OpticalCON sockets, which allows you to directly connect your desired optical cables.  All connections are easily accessible as they are conducted to a clearly arranged output panel.

Blackmagic Design Mobile Studio Converter Unit HD

In the Case
  • Blackmagic Design ATEM Studio Converter 2
  • t.racks Power 8 S USB
  • USB A > USB B cable 2m
  • USB A > USB C OTG adapter
  • Rack case

Have a look at our suitable optical video cables.
