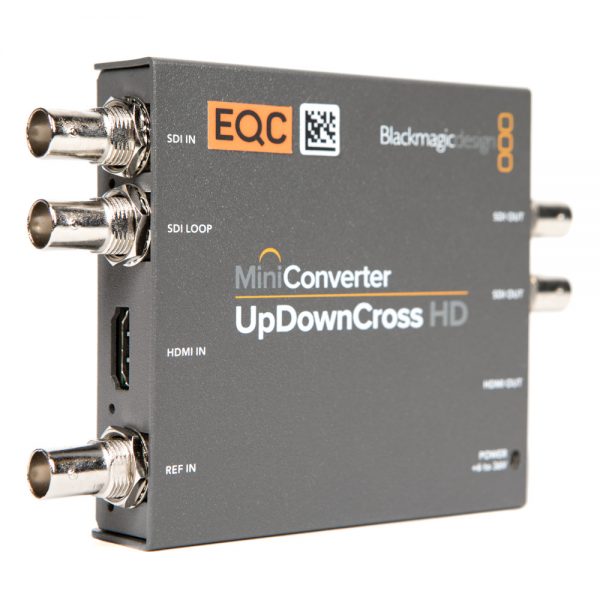

| Connections |
| SDI Video Inputs |
1 x SD, HD or 3G‑SDI Video Input and 1 x External Reference Input. |
| HDMI Video Input |
1 x HDMI type A connector. |

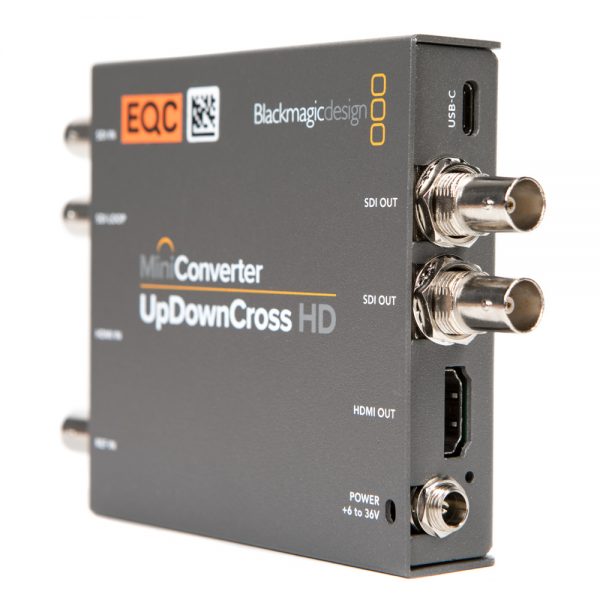

| SDI Video Outputs |
1 x loop out and 2 x outputs |
| HDMI Video Output |
HDMI type A out. Output supports EDID of the monitor. |
| SDI Rates |
270Mb, 1.5G, 3G. |
| Reference Input |
Black burst and Tri‑Sync for SD & HD. |
| Multi Rate Support |
Auto detection of HD or standard definition SDI inputs. |
| Updates and Configuration |
USB |
| Reclocking |
Yes |
| Standards |
| SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
| HD Video Standards |
720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
HDMI Input Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M‑B, ITU‑R BT.656 and ITU‑R BT.601. |
| SDI Metadata Support |
Timecode and closed captioning. |
| SDI Video Rates |
SDI video connections are switchable between standard definition and high definition. |
| SDI Video Sampling |
4:2:2 |
| SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. |
| SDI Color Precision |
4:2:2 |
| SDI Color Space |
YUV |
| SDI Auto Switching |
Automatically detects SD, HD or 3G‑SDI. |
| Format Conversion |
| Video Conversion |
Convert any SD and HD input to "720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60" |
| Computer Scaling |
Scale DVI resolutions 640×480, 800×600, 1024×768 to 525i59.94, 625i50,720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Software |
| Internal Software Upgrade |
Via included updater application. |
| Operating Systems |
Mac 10.14 Mojave, Mac 10.15 Catalina or later.Windows 8.1 and 10. |

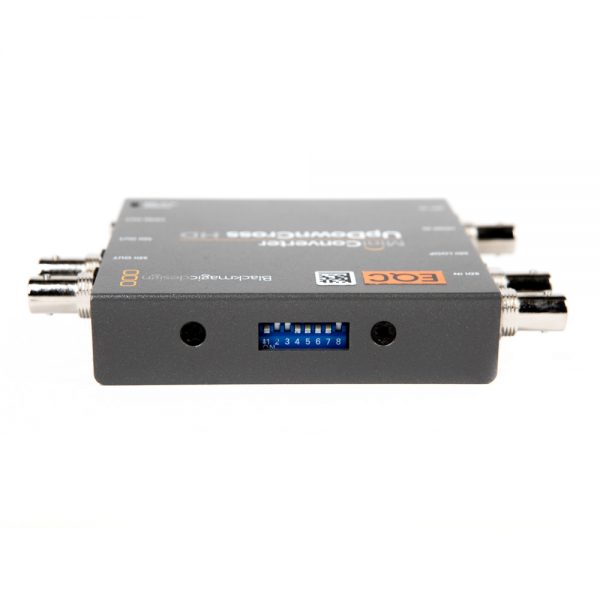

| Settings Control |
Mini Switches |
| Power Requirements |
| Power Supply |

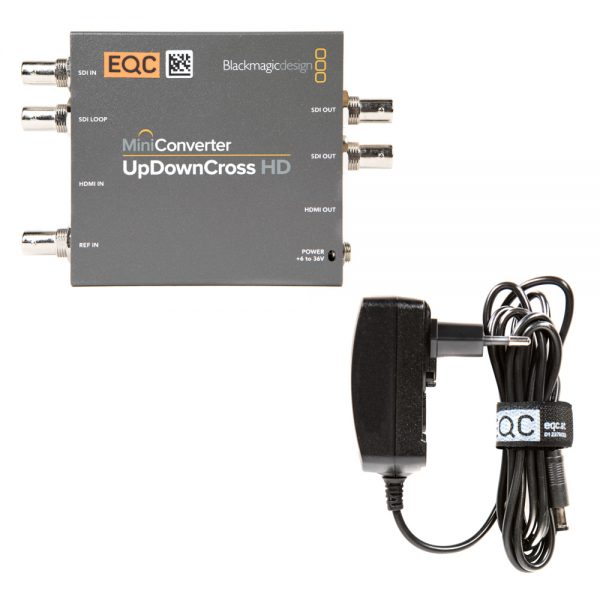

+12V universal power supply included with international socket adapters for all countries. |
| Power Consumption |
5W |
| Operational Voltage Range |
6 to 36 Vdc. |
| Environmental Specifications |
| Operating Temperature |
0° to 40° C (32° to 104° F) |
| Storage Temperature |
-20° to 45° C (-4° to 113° F) |
| Relative Humidity |
0% to 90% non‑condensing |
