| General (Combination of AU-V35C1G and AU-VREC1G) |
| Power |
DC 12 V (11.0 V – 17.0 V) |
| Power Consumption |
69 W (Body only)
99 W (with all optional accessories connected and maximum power supplied from each output terminal) |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 85% (relative humidity) |
| Storage Temperature |
−20°C to 60°C (–4°F to 140°F) |
| Weight |
Approx. 5.0kg (11.02 lb) (excluding accessories) |
| Dimensions (W x H x D) |
179 mm x 230.5 mm x 347 mm
(7-1/16 inches x 9-3/32 inches x 13-21/32 inches)
(body only, excluding protrusions and accessories) |
| Ensure that the total current from the DC OUT terminal, VF terminal, and LENS terminal of the camera module, and the DC OUT/RS terminal and USB HOST terminal of the recording module does not exceed 30 W. |
| Camera Module (AU-V35C1G) |
| Pickup Device |
super35 mm, MOS, 8.9 megapixels |
| Number of Pixels |
Total pixels: Approx.10.3 million pixels,
Effective pixels: Approx. 8.9 million pixels |

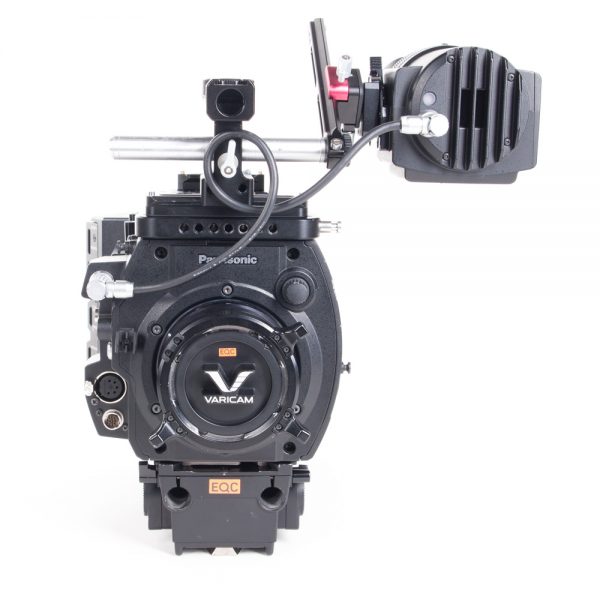

| Lens Mount |
35 mm PL mount |
| Optical Filter |
ND filter: 1: CLEAR, 2: 0.6 ND 3: 1.2 ND, 4: 1.8 ND |
| EI Settings |
Native ISO: 800, 5000
800 Base: 200 to 4000
5000 Base: 1250 to 12800 |
| Shutter speed |
[deg] mode: 1.0 deg to 358 deg (0.5 deg step)
[sec] mode: 1/24 sec to 1/250 sec (for 24p mode) |
| Memory Card Recorder |
| Recording Media |
expressP2 card, P2 card, microP2 card |
| Recording Resolution |
4096×2160, 3840×2160, 2048×1080, 1920×1080 |
| Recording Framerate |
4K/UHD: Maximum 100p/120p
2K/HD: Maximum 100p/120p |
| System Frequency |
59.94p, 50p, 29.97p, 25p, 24p, 23.98p, 59.94i, 50i |
| Recording Format (Main Recorder) |
AVC-Intra4K444, AVC-Intra4K422, AVC-Intra4K-LT, AVC-Intra2K444,
AVC-Intra2K422, AVC-Intra444, AVC-Intra200, AVC-Intra422,
AVC-Intra100, ProRes 422 HQ, ProRes 4444 |
| Recording Format (Sub Recorder) |
AVC-Intra2K422, AVC-Intra422, AVC-Intra100,
AVC-LongG50, AVC-LongG25 |
| Recording Video Signal |
4096×2160 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p
3840×2160 / 59.94p, 50p, 29.97p, 25p, 23.98p
2048×1080 / 59.94p, 50p, 29.97p, 25p, 24p, 23.98p
1920×1080 / 59.94p, 50p, 29.97p, 25p, 23.98p, 59.94i, 50i |
| Recording Time (Main Codec) |
When using 256 GB expressP2 card
AVC-Intra4K444 (24p): Approx. 45 min.
AVC-Intra4K422 (VFR ON, 50fps/60fps): Approx. 36 min.
AVC-Intra4K422 (VFR OFF, 24p): Approx. 90 min.
AVC-Intra4K-LT (VFR ON, 100fps/120fps): Approx. 32 min.
AVC-Intra100 (VFR ON, 100fps/120fps): Approx. 64 min.
ProRes 422 HQ (VFR ON, 60fps): Approx. 60 min. |
| Recording Time (Sub Codec) |
When using 64 GB microP2 card
AVC-Intra2K422 (25p/29.97p): Approx. 64 min.
AVC-Intra100 (25p/29.97p): Approx. 64 min.
AVC-LongG50 (25p/29.97p): Approx. 128 min.
AVC-LongG25 (25p/29.97p): Approx. 256 min. |
| Digital Video |
| Quantizing |
AVC-Intra4K444, AVC-Intra2K444,
AVC-Intra444: 12 bit, others: 10 bit |
| Video Compression Format |
AVC-Intra4K444, AVC-Intra4K422, AVC-Intra4K-LT, AVC-Intra2K444,
AVC-Intra2K422, AVC-Intra444, AVC-Intra200, AVC-Intra422,
AVC-Intra100: MPEG-4 AVC/H.264 Intra Profile AVC-LongG50,
AVC-LongG25: MPEG-4 AVC/H.264 ProRes 422 HQ, ProRes 4444: Apple ProRes |
| Digital Audio |
| Recording Audio Signal |
48 kHz/24 bit, 4ch |
| Head room |
18 dB/20 dB switchable menu |
| Proxy |
| File Format |
MOV |
| Video Compression Format |
H.264/AVC High Profile |
| Audio Compression Format |
LPCM |
| Recording Time (1 GB) |
Approx.25 min. |

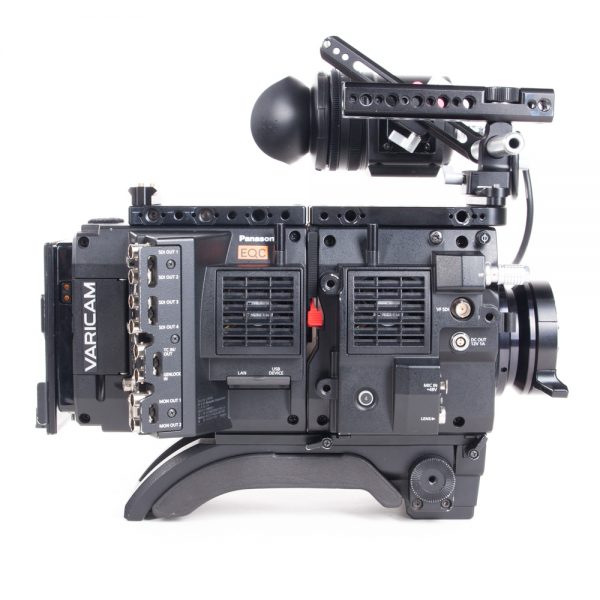

| Video Input/Output |
| SDI OUT |
HD (1.5G)/3G SDI, 0.8 V[p-p], 75 Ω (1 set, 4 pieces) |
| MON OUT1 |
HD (1.5G)/3G SDI, 0.8 V[p-p], 75 Ω |
| MON OUT2 |
HD (1.5G)/3G SDI, 0.8 V[p-p], 75 Ω |
| VF SDI |
HD (1.5G)/3G SDI, 0.8 V[p-p], 75 Ω |
| Audio Input/Output |
| AUDIO IN (CH1/CH2) |
XLR x 2, 3-pin, LINE/MIC/MIC+48V/AES switchable |
| MIC IN |
XLR x 1, 5-pin |
| Phones |
Stereo mini jack |
| Speaker |
20 mm diameter, round x 1 |
| Other Input/Output |
| GENLOCK IN |
HD (1.5G)/3G SDI, 0.8 V[p-p], 75 Ω |
| TC IN/OUT |
Head rBNC x 1, Input/Output switching
IN: 0.5 V[p-p] to 8 V[p-p], 10 kΩ
OUT: 2.0 V ± 0.5 V[p-p], low impedanceoom |
| DC IN |
XLR 4 -pin, DC 12 V (DC 11.0 V to 17.0 V) |
| DC OUT/RS |
4-pin, DC12 V (DC11.0 V to 17.0 V),
maximum output current 1.0 A |
| DC OUT |
2-pin, DC12 V (DC11.0 V to 17.0 V),
maximum output current 1.0 A |
| LENS |
12-pin x 1, 4-pin x 2 |
| VF |
14-pin |
| LAN |
100BASE-TX/10BASE-T |
| USB2.0: (device) |
Type B connector, 4-pin |
| USB2.0: (host) |
Type A connector, 4-pin |
| EXT |
50-pin, exclusive for external recording only |
| Control Panel |
| Display Panel |
LCD, 3.5-type QHD color monitor, approx. 1.56 million dots |
| Extension Module (AU-VEXT1G) |
| Power |
DC 12 V (11.0 V to 17.0 V) |
| Power Consumption |
33 W (Body only)
63 W (With all optional accessories connected and maximum power supplied from each output terminal) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
10% to 85% (Relative humidity) |
| Storage Temperature |
-20°C to 60°C (–4°F to 140°F) |
| Weight |
Camera Extension Module: Approx. 0.95 kg (2.09 lb)
Recording Extension Module: Approx. 0.65 kg (1.43 lb) |
| Dimensions (W x H x D) |
Camera Extension Module: 121 mm x 143 mm x 73 mm
(4-25/32 inches x 5-21/32 inches x 2-7/8 inches)
Recording Extension Module: 106 mm x 143 mm x 61 mm
(4-3/16 inches x 5-21/32 inches x 2-13/32 inches) |
| Input/Output |
| DC IN |
XLR 4-pin, DC 12 V (DC 11.0 V to 17.0 V) |
| DC OUT |
2-pin、DC 12 V (DC11.0 V to 17.0 V), maximum output current 1.0 A |
| EXT |
48-pin |
| Electronic HD Color View Finder (AU-VCVF1G) |
| Display Panel |
OLED, 0.7-type, approx. 2.76 million dots |
| Signal Input |
1080/59.94p, 1080/50p, 1080/60p |
| * |
Specification is as of April 2016. Specification subject to change upon firmware upgrade. |
| *1 |
ProRes is licensed from Apple Inc. Apple ProRes codec is under license from Atomos. Atomos is a trademark and copyright of Atomos Global Pty. Ltd. |
| *2 |
Figures are for continuous recording as one clip. Depending on the number of clips, the overall recording time may be shorter than the above. |
